Are metal oxide resistors non inductive

The pitch of the helix track can be varied in order to increase the resistance of the film. For thick films an increase of up to 150 times, for carbon and metal films up to 1000 times or even more. … Film resistors may be approximately classified as follows: values < 100Ω are inductive.

Are metal oxide film resistors inductive?

How do you know if a resistor is non-inductive?

A non-inductive resistor is wound one way then again in the other direction, as shown below. This will cancel out the magnetic fields generated by each of the wires. Most resistors are created in this same manner but with different materials.

What type of resistors are non-inductive?

Carbon-composition resistors are non- inductive and provide an adequate solution at low average power, but they can be unstable because of moisture or high voltage. Carbon- composition resistors rated at 2 W and higher are almost impossible to source.

What is metal oxide resistor?

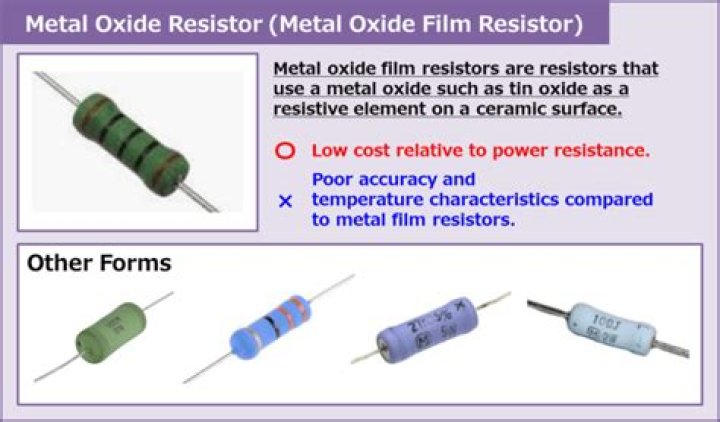

Metal-oxide film resistors are fixed value, axial resistors. They are made of ceramic rod that is coated with a thin film of metal oxides, such as tin oxide. Metal oxide film resistors must not be confused with metal oxide varistors, made of zinc oxide or silicon carbide.

How do you identify a metal oxide resistor?

Common carbon film resistors are mostly yellow or pink due to their low accuracy and low production costs, while most metal film resistors are blue. There is a layer of black protective paint on the surface of carbon film resistors, while metal film resistors are usually coated with bright white protective films.

What is the difference between metal oxide and metal film resistors?

In metal film resistor, the film is constructed by using the metals such as nickel chromium whereas in metal oxide film resistors, the film is constructed by using the metal oxide such as tin oxide. The metal oxide film resistor is made by coating the ceramic core with metal oxide such as tin oxide.

How do you make a resistor not inductive?

A nearly non-inductive resistor can be constructed by getting a length of resistance wire which has the required resistance, folding it back on itself, and winding the doubled wire about a former. The inductance exhibited by the wire in one direction will be cancelled by the inductance in the other.

What is non resistive inductor?

A non-inductive resistance is a resistance which has no inductance (no opposition to changes in current flowing through it). Such resistance is important at high (radio) frequencies, as well as in high-speed logic (digital) circuits.

What is a metal film resistor used for?

Applications of metal film resistors They are used when a high tolerance or more accurate value is needed in a circuit. They are also used for bridge circuits, filter circuits, and low-noise analog signal circuits. Metal film resistors are not suitable for applications that expose them to surge transients.

Article first time published on

Are wire wound resistors inductive?

Wirewound resistors, by virtue of their construction, have self-inductance and are hence inductive. In a noninductive resistor, a second layer of resistance wire is wound in the opposite direction of the first wind. These two windings are separated by a layer of coating material.

What is non-inductive?

1Not inductive; specifically based on or characterized by the absence of induction or inference. 2Having no or negligible electrical inductance.

Are wirewound resistors non-inductive?

These resistors are made by wrapped a high-performance resistive alloy wire around a low thermal resistance ceramic core. Wirewound resistors have superior pulse capability and available in non-inductive styles as well.

What is nonlinear resistor?

Non-linear resistors are those types of resistors where the electric current flowing through it changes with the exchange in applied voltage or temperature and does not change according to Ohm’s law.

How do metal oxide varistors work?

When exposed to high transient voltage, the MOV clamps voltage to a safe level. A metal oxide varistor absorbs potentially destructive energy and dissipates it as heat, thus protecting vulnerable circuit components and preventing system damage. Varistors can absorb part of a surge.

Is a rheostat a resistor?

rheostat, adjustable resistor used in applications that require the adjustment of current or the varying of resistance in an electric circuit. The rheostat can adjust generator characteristics, dim lights, and start or control the speed of motors.

Are metal oxide resistors flameproof?

Carbon comps and carbon films burst into balls of flame. A flameproof resistor by design opens up quietly without glowing or emitting flame. There are flameproof wirewound and metal oxide resistors, though the metal oxide varieties are more common and less expensive.

Are metal film resistors better than carbon?

Metal Oxide film resistors have a better voltage coefficient and temperature coefficient than carbon film resistors. … As a matter of fact, metal oxide film resistors work in a wide resistance range and can withstand a higher temperature than the carbon film resistors.

Are metal film resistors flameproof?

The resistive element comprises a metal oxide film deposited on a ceramic former. The element is protected by a flameproof coating which will withstand overload conditions without flame or mechanical damage. They are recommended for use in applica- tions such as line protection etc…

How do you identify a resistor?

Some resistors have contact plates on the bottom. Read the 3 or 4 numbers on the resistor. The first 2 or 3 represent the significant digits and the last indicates the number of 0s that should follow. For example, a resistor reading 1252 indicates a rating of 12,500 ohms or 1.25 kilo-ohms.

What is a foil resistor?

Foil Resistors A foil resistor is produced using a thin piece of photoetched resistive material. This etching is used to produced the desired resistance value. Due to the great stability of foil designs, Current Sense resistors commonly use this construction.

Can potentiometers be variable resistor?

A potentiometer is a three-terminal resistor with a sliding or rotating contact that forms an adjustable voltage divider. If only two terminals are used, one end and the wiper, it acts as a variable resistor or rheostat.

What is the difference between inductors and resistors?

The main difference between ideal resistors and ideal inductors is therefore that resistors dissipate electrical power as heat, while inductors turn electrical power into a magnetic field. Ideal resistors have zero reactance and as a result zero inductance.

What are non inductive resistance coils?

A non inductive resistance is a resistance which has no inductance. Such, resistance are required in high frequencies as well as in high speed digital circuit. The magnetic field generated by each other cancel out each other effect. Hence, no, emf is induced in the coil and coil has zero inductance.

Can we use resistors instead of inductor Why?

Simply because the inductors when used instead of resistors, it creates a phase lag in the current flowing through the circuit. A pure inductor if used, will create a phase difference of 90 degrees in the current flowing through the circuit.

Why does wire wound type of resistor has high power rating?

Wirewound resistor construction varies widely. … To create a high resistance, the wire diameter needs to be very small and the length very long. Therefore, wirewound resistors are mainly produced for lower resistance values. For low power ratings, very thin wire is used.

What is inductive reactance related to?

The inductive reactance of a component is directly proportional to the inductance of the component and the applied frequency to the circuit. By increasing either the inductance or applied frequency, the inductive reactance will likewise increase and present more opposition to current in the circuit.

What do you mean by inductive resistance?

n. 1. ( Electronics) the opposition to the flow of alternating current by the capacitance or inductance of an electrical circuit; the imaginary part of the impedance Z, Z = R + iX, where R is the resistance, i = √–1, and X is the reactance. It is expressed in ohms.

What are the 4 types of resistors?

Carbon Composition Resistors.
Wire wound Resistors.
Thin Film Resistors.
Carbon Film Resistors.
Metal Film Resistors.
Thick Film Resistors.
Metal Oxide Resistors.
Cermet Oxide Resistors (Network Resistors)

What is a metal film resistor made of?

Metal film resistors are made by depositing crystalline carbon on the ceramic rod skeleton. Carbon film resistors are low in cost. It has stable performance, a wide resistance range, and low-temperature coefficient and voltage coefficient. It is currently the most widely used resistor.

What is chip resistor?

A chip resistor also known as surface-mount device or SMD resistor is an integrated circuit (IC) device designed in square or rectangular chip bundles. A chip resistor is a component that opposes the flow of electrical current. It is mainly used to operate, safeguard or control circuits.
