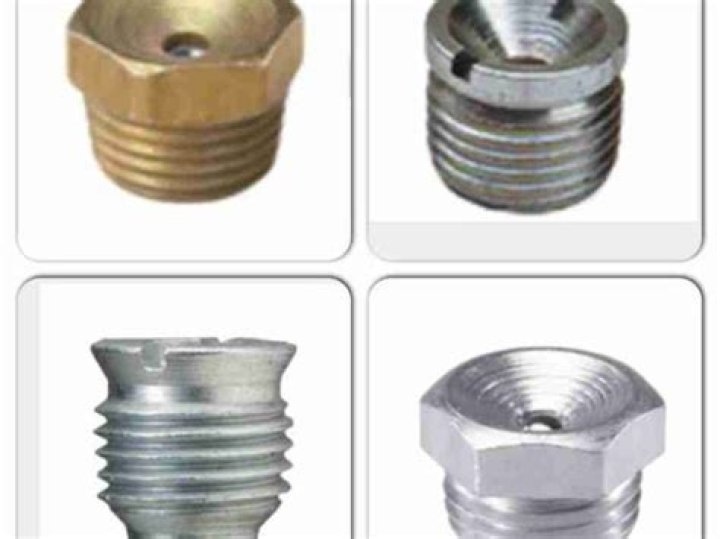

Are there different sizes of grease Zerks

The most common standard grease fitting size is 1/4″‑28 SAE‑LT and is often used in automotive applications. They can also be found in agricultural environments as well as other various standard duty applications. For heavy duty applications, larger 1/8″‑27 PTF zerk fittings can be found.

Are all grease guns the same?

Types of Grease Guns Grease guns have three ways in which they can be powered: by hand, air or electricity. Aside from these variations, the hand-powered (or manual) grease guns can either be manufactured with a lever or a pistol grip.

Are grease fittings metric?

Metric Grease Fittings are available in both regular and stainless steel. Metric Grease Fittings are also referred to as Metric Zerk Fittings, Metric Lubrication Fittings, Metric Hydraulic Fittings, and Metric Zerks.

Are there different types of grease fittings?

There are three major thread types for grease fittings: metric, taper or parallel, and unified. M5, M6, M7, M8, and M10 are common metric threads. British standard pipe (BSP), pipe thread fine (PTF), and national pipe thread fine (NPTF) fittings use tapered or parallel threads.

Is there a difference between metric and standard grease fittings?

there IS a difference between metric and american grease fittings. see photo below. metric is on the left, american on right. you can see one is slightly longer then the other which is fatter and the angle of the curve coming in from the tip is different.

What are the different types of grease guns?

The most common styles of grease guns include the lever, pistol-grip, hand grip, air-powered and battery-powered. The lever style is the most economic and widely used of all the grease guns.

Which grease gun is best?

BEST OVERALL: Lincoln 20V Li-Ion PowerLuber Dual Battery Unit.
RUNNER UP: DEWALT 20V MAX Cordless Grease Gun.
BEST MINI: Astro Pneumatic Tool 101 Mini Grease Gun.

What size hole do I drill for a grease fitting?

Fitting Thread SizeTap Drill Selection For Standard Thread FittingsDrill Size Selection for Spin Drive Fittings1/4″-28#3 (for soft metal use #5)”A” – .234″ Dia.5/16″-329/32″ (for soft metal use “J”)-1/8″ Pipe11/32″ (for soft metal use “R”)3/8 – .375″ Dia.*1/4″ Pipe7/16″-

What are the different sizes of grease fittings?

There are two grease fittings that are very common. These are the 1/4″-28 thread and the 1/8″ NPT thread. However, there are other less common grease fitting threads in use. Here are some ways to identify the threads on your grease fittings.

How do you know when a grease fitting is full?

If this is the case, the best tactic is to “feel” the grease into the bearing cavity until slight resistance or back pressure is felt against the trigger, or lever, signaling the bearing cavity is now full.

Article first time published on

What threads are used on grease Zerks?

SAE‑LT (Society of Automotive Engineers) threads possess SAE pipe thread dimension of 1/4″‑28 taper. Grease zerk fittings in the automotive industry as well as many other industrial machines and standard duty applications use SAE‑LT threads.

Are John Deere grease fittings metric?

21 Piece Metric Grease Fittings Assortment in 6, 8, and 10 mm thread sizes. 21 assorted metric grease fittings in nine of the most popular styles and sizes are contained in an easy-to-handle, sturdy plastic box with six separately labeled and illustrated compartments.

What is a button head grease fitting?

Button head grease fittings are a heavier duty fitting distinguished by its flat, low profile appearance. They are able to handle large grease volume due to their high flow rate and sturdy construction. Button head fittings feature a smooth working surface and allow for easier coupler attachment and removal.

Does anyone make a grease gun that works?

Best Electric Grease Gun—Lumax Cordless Grease Gun Another great tool by Lumax is the LX-1175 Handyluber; a lightweight, electric grease gun operated by a 12V battery that can deliver up to five cartridges of grease on one charge.

Do I need a grease gun?

Engine oil comes in plastic bottles and keeps your engine lubricated and cooled. Gear oil also comes in bottles, but has a much higher viscosity to protect heavy differential gears. The heavy grease that lubricates Spicer joints and axle bearings requires a special tool, a grease gun.

Is pistol grip or lever action grease gun better?

For industrial applications with smaller bearings, a lever grease gun that produces higher pressure but less output volume is ideal. The pistol grease gun has less mechanical advantage and develops less pressure. … The pistol grip grease gun usually provides lower pressure (500 psi) and lower output per stroke.

How many ounces of grease are in a pump?

Answer: Generally, a shot of grease means one stroke from the grease gun. However, the output, or amount of lubricant dispensed from a grease gun depends on the model. Grease guns deliver widely varying amounts of grease (typically 0.1 ounce or 2 to 3 grams).

How many cc's are in a pump of grease gun?

Gun grease gun dispenses a theoretical 3cc per stroke. Our tests confirm the actual volume dispensed is 2.7cc/stroke.

What is the highest pressure grease gun?

Alemite High Pressure Series Grease Guns will develop up to 15,000 psi pressure, and are designed to perform in harsh environments. In addition to grease, they are suitable to dispense sealants and other similar fluids. All steel construction ensures long life and reliability.

What does ZERK mean?

zerk in American English (zɜrk ) noun. a small metal fitting through which grease can be inserted into a mechanical joint that requires periodic lubrication.

What size are John Deere grease fittings?

There are 1 each of these fittings: 10 mm x 1 straight, 10 mm x 1 45 degrees angle, 10 mm x 1 90 degrees angle. John Deere grease fittings are manufactured to the most stringent quality standards and are heat-treated to SAE specifications.

Why is it called a grease ZERK?

The Zerk design, named after Oscar Zerk, used a fitting much smaller than the Alemite pin-type and did not lock the hose coupler or hand gun and fitting together. Instead, the seal between them was maintained by the pressure of a pushing action when the operator applied the coupler to the fitting.

What is a #3 drill bit?

Description. #3 HSS Taper Length Drill Bit. Taper length drills are designed for general purpose drilling where a length longer than jobber length is required.

What is grease fitting thread?

Thread forming grease fittings are used to save tapping cost, and have special tapered drive threads that reshape the material in an untapped hole to provide a leakproof seal.

When should I stop greasing?

Stop greasing if you note back pressure that is not normal.
Check to see that the exhaust ports on a machine are free from debris, including hard crust.
Slowly pump the lubricant into a machine’s bearings for several seconds.

Can you over grease fittings?

Use Just Enough: Don’t overfill when you grease Zerk fittings. Usually, three or four pumps of grease are enough and over-greasing a joint pushes grease out the aforementioned seals, which attracts dust, sand, and dirt. Contaminated grease can damage moving parts, so avoid having excess squish out the seals.

Is grease Zerks pipe threaded?

SAE Products 1/8″ pipe thread grease fittings are commonly referred to as 1/8″ pipe thread zerk fittings. Below is an image and drawing of SAE Products H-200 1/8″ PTF grease fitting.

Are grease fittings tapered?

Thread forming grease fittings are used to save tapping cost, and have special tapered drive threads that reshape the material in an untapped hole to provide a leakproof seal.

What is a grease syringe?

Plastic grease syringes greatly ease the task of applying small measured amounts of lubrication grease to bearings, linear guides, spindles and more. The syringes come with a tip to help in applying the grease to the proper points needed in your application.
