Can a Layer 2 switch route VLANs

You can configure one or more VLANs to perform Layer 2 bridging. Thus, MX Series routers or EX Series switches can function as Layer 2 switches, each with multiple bridging, or broadcast, domains that participate in the same Layer 2 network. You can also configure Layer 3 routing support for a VLAN.

Can a layer 2 switch do routing?

The layer 2 and Layer 3 differs mainly in the routing function. A Layer 2 switch works with MAC addresses only and does not care about IP address or any items of higher layers. Layer 3 switch, or multilayer switch, can do all the job of a layer 2 switch and additional static routing and dynamic routing as well.

What are two reasons a VLAN would be used on a layer 2 switch?

Uses. VLANs address issues such as scalability, security, and network management. Network architects set up VLANs to provide network segmentation. Routers between VLANs filter broadcast traffic, enhance network security, perform address summarization, and mitigate network congestion.

Can a switch route VLANs?

7 Answers. L2 switches cannot do Inter-VLAN routing, since they only take care of L2 network stuff, that is, forward frames between links. If it is a L3 switch, then it can do IP protocol routing between VLANs.

How does a Layer 2 switch differ from a VLAN?

A layer-2 switch operates at the data link layer, and a router operates at the network layer. … When a VLAN switch receives a frame for another computer, it forwards the frame unchanged to the correct computer.

How do you communicate between two VLANs in the same switch?

Use a router, with one router LAN interface connected to the switch for each and every VLAN. …
Use one router interface with trunking enabled. …

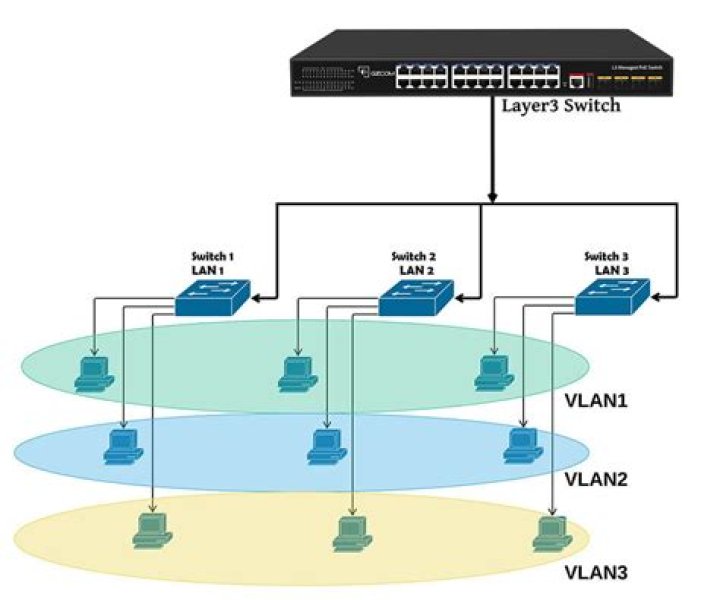

Use a Layer3 switch, a device that performs both the switching and routing operations.

How do I know if my switch is Layer 2 or 3?

Layer 2 vs Layer 3 switches Devices in an Ethernet network are identified by a MAC (media access control) address, which is generally hardcoded to a particular device and doesn’t normally change. Layer 3 is the network layer and its protocol is the Internet Protocol or IP.

Can a switch do routing?

Layer 3 switches are thus able to segregate ports into separate VLANs and perform the routing between them. Like traditional router, a layer 3 switch can also be configured to support routing protocols such as RIP, OSPF, and EIGRP.

How do you create an inter VLAN routing?

Step 1: Create VLANs (VLANs 10 and 20) on the L2 switch. Description. …
Step 2: Assign the VLANs to the L2 switch ports. …
Step 3: Enable L3 routing and create VLANs (VLANs 10 and 20) on the L3 switch. …
Step 4: Configure Switch VLAN Interfaces (SVI) …
Step 5: Configure a routed port for connecting to the firewall on the L3 switch.

Why switching is faster than routing?

In a LAN environment, a switch is faster than Router. In Router, every port has its own broadcast domain. The switch has one broadcast domain except VLAN implemented. Router operations revolve around IP Addresses.

Article first time published on

Can different VLANs communicate?

Devices in different VLANs cannot communicate when only using layer 2 switches. … In other words, a layer 2 switch allows devices in the same VLAN or subnet to communicate. Any VLAN to VLAN communication will not be allowed with just a layer 2 switch.

Do Layer 2 addresses cross the router to other networks?

This reduces the L2 complexity of the client access layer, which makes the network more reliable and easier to manage. Yes. Link-local addresses, much like MAC addresses, do not cross a router, so the scope to which duplicate addresses can cause a problem is quite limited.

Do you need a layer 3 switch for VLANs?

If you answered yes to one or more of the above questions, you sure need a layer 3 switch for improved performance. In all other cases, it is optional. Layer 3 switches act as both switches and routers. They are ideal for VLANs only, as they do not have a WAN interface.

How does a Layer 2 VLAN work?

It uses hardware based switching techniques to connect and transmit data in VLAN. By looking at the destination MAC address in the frame header, the Layer 2 switch interconnects multiple end nodes of VLAN and intelligently forwards traffic between them without unnecessary flooding of frames onto the network.

What is difference between l2 and l3 VLAN?

Layer 2 is generally hardware i.e. mac address “routing” or mac tables. Layer 3 has to do with ip’s. Layer 3 devices are usually managed and they can create and route between vlans.

Why would a Layer 2 switch need an IP?

Explanation: Layer 2 switches can be configured with an IP address so that they can be remotely managed by an administrator. Layer 3 switches can use an IP address on routed ports.

What is inter-VLAN routing?

Definition. Inter-VLAN routing can be defined as a way to forward traffic between different VLAN by implementing a router in the network. … The user nodes in the VLANs forwards traffic to the router which then forwards the traffic to the destination network regardless of the VLAN configured on the switch.

What is difference between Layer 2 and layer 3?

Generally speaking, Layer 2 is a broadcast Media Access Control (MAC) MAC level network, while Layer 3 is a segmented routing over internet protocol (IP) network.

Can a switch port have multiple VLANs?

You can have three vlans on one port if the switch configuration allows it. Mine allows one for data and one for VoIP. The quick answer is yes, That’s called a trunk. Your specific hardware will determine what is possible.

What happens to switch ports after the VLAN?

What happens to switch ports after the VLAN to which they are assigned is deleted? … The ports are placed in trunk mode. The ports are assigned to VLAN1, the default VLAN. The ports stop communicating with the attached devices.

Can ping between VLANs on same switch?

Yes, You can ping devices in one VLAN, having IP address in different subnet range by implementing routing.

What are the advantages of VLAN and inter VLAN routing?

VLANs enable logical grouping of end-stations that are physically dispersed on a network. …
VLANs reduce the need to have routers deployed on a network to contain broadcast traffic. …
Confinement of broadcast domains on a network significantly reduces traffic.

What are the 3 types of VLANs?

Port-Based VLAN. Port-based VLANs groups virtual local area network by port. …
Protocol Based VLAN. This type of VLAN processes traffic based on a protocol that can be used to define filtering criteria for tags, which are untagged packets. …
MAC Based VLAN.

Is router on a stick bad?

The disadvantages to a Router on a Stick Network are: It is more complex to set up compared to other networks. Traffic between VLANs goes into the router and out of the router through the same port. The trunk is a major source of congestion.

Are VLANs on routers or switches?

In technical terms, a VLAN is a broadcast domain created by switches. Normally, it is a router creating that broadcast domain. With VLAN’s, a switch can create the broadcast domain. This works by, you, the administrator, putting some switch ports in a VLAN other than 1, the default VLAN.

Does a VLAN need a router?

VLANs don’t need routers to communicate. Well, they usually do, but not necessarily. They just need some “external help”.

Do I need a router if I have a switch?

Note: switches have absolutely no routing functionality and cannot take the place of a router. Your router likely has a four-port switch built into it but that does not mean your new eight-port dedicated switch can replace your router—you still need the router to mediate between your modem and switch.

Can I use router as a switch?

You can change your router’s configuration to work as a switch. Many small office routers are actually a combination of various network devices in a small package, which allows them to be used for other purposes when the routing capability is not desired or needed. You can configure your router as a switch.

What is the difference between switching and routing?

Routing and Switching are different functions of network communications. … The function of Switching is to switch data packets between devices on the same network (or same LAN – Local Area Network). The function of Routing is to Route packets between different networks (between different LANs – Local Area Networks).

What are the important similarities between switching and routing?

What are the important similarities between switching and routing? Both switches and routers are used to deliver data from a source to a destination. 4.

How many VLANs can be configured on a switch?

A switch supports a maximum of 4096 VLANs, among which VLANs 0 and 4095 are reserved for system use, and VLAN 1 is the default VLAN. Therefore, you can only create VLANs 2 to 4094. You can repeat the vlan command multiple times.
