Can I use flexible conduit outdoors

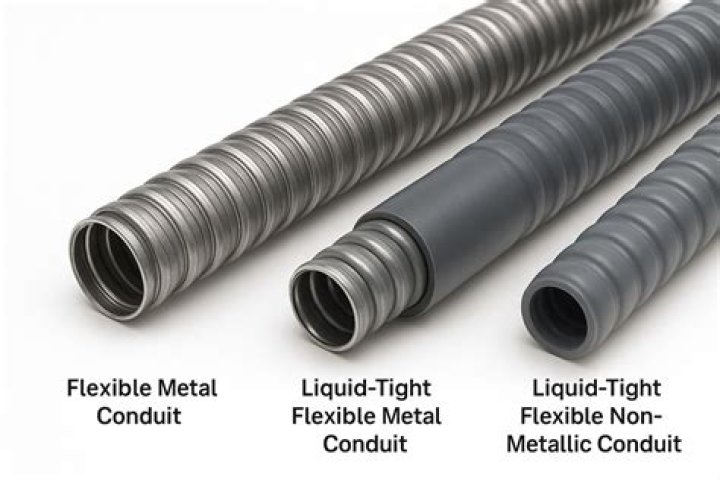

Flexible Metal Conduit is a helically injury, flexible tubing usually made from aluminum. Because it can not be used outside or in other wet areas, Flexible Metal Conduit is rather restricted in its usefulness, yet there are a couple of applications where it is the clear selection.

Can flexible PVC conduit be used outdoors?

Some code-compliant PVC fittings can be used with ENT inside walls, floors, some ceilings or encased in concrete. Outdoor flexible nonmetallic tubing is strong, watertight, non-corrosive and weighs less. Metal or plastic boxes can be used with nonmetallic conduit. Always run a ground wire when using PVC conduit.

What type of conduit should be used outdoors?

Out of the many conduit forms available, PVC conduit is considered best for outdoor applications. Among all conduit types, PVC is lightweight and versatile. Available in a variety of thicknesses or grades, PVC is well suited for direct burial or above ground work.

Is flexible conduit waterproof?

Flexible metallic conduits or FMCs are often used in commercial buildings. … However, this conduit is not waterproof and requires the use of a specialized tool in order to cut through it.

Can flexible metal conduit be exposed?

According to 348.10 of the 2011 NEC, flexible metal conduit (FMC) is permitted in exposed or concealed locations.

How do you run a PVC conduit through an exterior wall?

Step 1: Drill a hole in the wall. …
Step 2: Cut and bend the conduit. …
Step 3: Slide the conduit through the hole. …
Step 4: Add conduit supports. …
Step 5: Pull the wire through the conduit. …
Step 6: Seal wall gaps with caulk. …
Step 7 (optional): Dig a trench.

Is flexible conduit code?

You may use flexible metal conduit in any length as long as you follow the Code rules for support (Sec. 350-18) and grounding (Sec. 250-18).

Where is flexible conduit used?

Flexible conduits are used to connect to motors or other devices where isolation from vibration is useful, or where an excessive number of fittings would be needed to use rigid connections. Electrical codes may restrict the length of a run of some types of flexible conduit.

Where can you use flexible conduit?

Reduced wall flexible conduit can be used in flexible metal raceway systems for electrical power, communication cables, motor leads, listed assemblies and wire fixtures and manufactured wiring systems.

When can you use flex conduit?

It is mainly used where rigid catheters are difficult to bend because flexible catheters can bend. Although flexible conduits are easier to work with than rigid conduits, it offers less protection for the conductors it carries.

Article first time published on

What type of conduit is suitable for damp location?

PVC conduit is often used in underground and wet location applications. This type of conduit has its PVC fittings, connectors, couplings, and elbows. They are easy to attach with a cleaner and PVC glue.

How do I run conduit outside my house?

Step 1: Drill an opening in the wall. …
Step 2: Bend and cut the conduit. …
Step 3: Insert the conduit into the hole. …
Step 4: Install conduit supports. …
Step 5: Pulling the wire through the conduit. …
Step 6: Seal gaping holes in walls with caulk.

Can you run flex in concrete?

Can Carflex conduit and fittings be direct buried? Yes. 1/2″ through 1″ are listed by UL for direct burial or concrete encasement applications. 1-1/4″ through 2″ do not meet the crush requirements for this installation and are not listed to be direct buried nor encased in concrete.

Is metal conduit waterproof?

Liquid-Tight Flexible Metal Conduit (LFMC) is FMC covered by a plastic waterproof coating. Its interior is similar to FMC, but it is suitable for wiring in wet or damp locations. It can also be buried in the ground or embedded in concrete.

Can flexible metal conduit be used in damp locations?

Flexible metal conduit can be used for exposed or concealed work in dry locations. It can be used for wet locations provided conductors within are lead covered or other approved type.

How many wires can be in a flexible conduit?

The NEC specifications are: One wire: maximum fill is 53% of the space inside a conduit. Two wires: maximum fill is 31% Three wires or more: maximum fill is 40% of the conduit’s total available space.

Should you glue PVC conduit?

Yes, an electrical PVC conduit needs to be glued properly with PVC solvent cement or water and insects could get in there to damage the electrical wires, especially if the conduit is buried underground.

Is a flexible non metallic conduit?

Flexible plastic conduit is also sold as LFNC, liquid-tight nonmetallic conduit. Plastic conduit can be heated and bent to non-standards shapes, or pre-formed bends and elbows can be used. … Use proper fittings to join and terminate rigid plastic conduit tubing, and protect it from damage too.

What is flexible non metallic conduit used for?

Non-metallic conduit is a versatile product that has a variety of applications for indoor and outdoor locations. Non-metallic conduit is used in fixture whips, data centers, electric signs and outdoor lighting, HVAC, pool and spas and locations with exposure to sunlight and weather conditions and more.

How long can you run liquid tight conduit?

You can install Liquidtight Flexible Nonmetallic Conduit (LFNC) in lengths longer than 6′ (1.8m), but only if it is securely fastened at intervals less than 3′ (900 mm), and within 12″ (300 mm) of boxes and fittings.

Can flex PVC be buried?

Flexible PVC pipe is simply not suitable for underground use, but don’t take my word for it. PlumbingSupply.com has this at the bottom of their flexible PVC page: “Note: Spa Hoses can be damaged by rodents or insects, including termites.”

How long does flexible PVC last?

As one of the most-used plumbing materials, PVC pipe is known for being very durable and long-lasting. In fact, PVC pipes last approximately 100 years.

Is flexible PVC rated for underground use?

You should use only rigid PVC pipe for the plumbing in your inground swimming pool. Even though it’s more difficult to install, it’s much stronger than flexible PVC pipe, which isn’t rated for underground use at all. Flexible PVC is easy to crush or puncture, and bugs like termites can chew through it.

What type of conduit that is commonly used with outdoor equipment such as air conditioner units?

While LFMC or liquid-tight flexible metal conduit is a special type of flexible metal conduit used with necessarily sealed fittings and has a plastic coating, the parts that make up the entire LFMC has made it watertight. This metal electrical conduit is also used with outdoor equipment like air conditioner units.

Can Thhn wire be used outside?

THHN is still the single conductor wire used outdoors and in conduit, because the THWN rating can resist water, oil, gases, and solvents.

Can I use armored cable outdoors?

The interlocking metal tape armor Type MC cable is required to have a bare or insulated equipment grounding conductor in addition to any other conductors within the cable. … These cables can be installed either indoors or outdoors and in exposed and concealed locations.

Can you run conduit on the side of your house?

There are two ways to run electrical wiring on the exterior walls of a house or other structure. One method is to run individual wires in a conduit system such as intermediate conduit, rigid conduit or schedule 40 or 80 vinyl conduit. … Locate and mark the the wall studs, using a stud finder.

How can I run electricity from my house to my shed UK?

Find an electrician. …
Think about WHY you need to power your shed. …
Work out where the cable will run. …
Prepare the cable trench. …
Check you’re happy with the plan. …
Let the electrician do their work.

Can seal tight conduit be buried?

A: Yes, SEALTITE® has been tested for the Direct Burial rating in Earth or Concrete. According to the NEC Article 350 Liquidtight Flexible Metal Conduit. Liquidtight flexible metal conduit (LFMC) is intended for use in wet locations or where exposed to oil or coolants, at a maximum temperature of 176°F – 80°C.

Is liquid tight conduit rated for underground?

This type of conduit is also suitable for applications that require bending as well as applications wherein vibration is expected. … Liquid tight conduits can provide adequate protection against moisture as well as crushing, even when buried underground.
