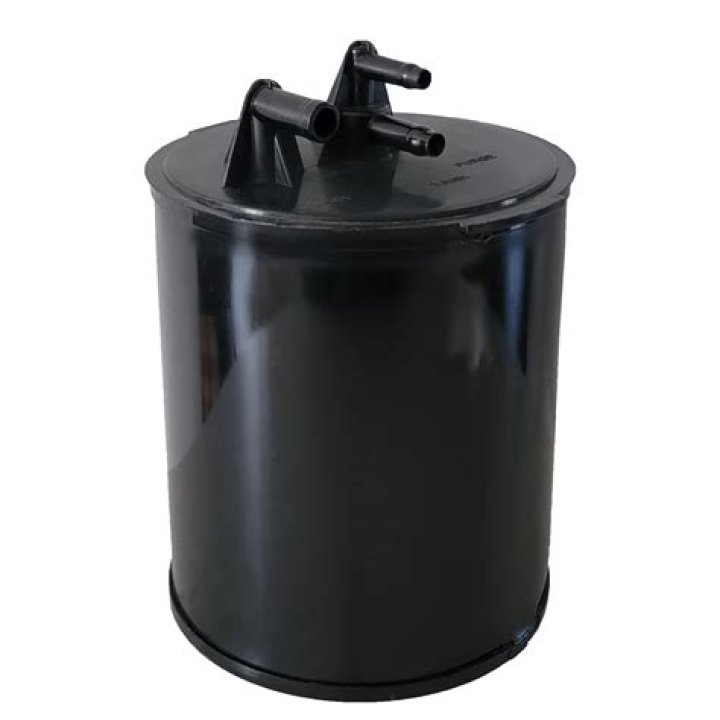

Can you clean out a charcoal canister

Never wash the inside of the charcoal canister with any type of liquids. Only use 40-50 p.s.i of compressed air to clean the charcoal canister.

How do I know if my charcoal canister is clogged?

Check Engine Light On. …
Issues Filling up The Fuel Tank. …
Hissing Noise when you open fuel tank cap. …
Fuel Smell Odor. …
Failing Emissions Test. …
Excessive Smoke From Exhaust.

What does a bad charcoal canister do?

A faulty charcoal canister will fail to collect fuel vapors before they escape your powertrain, which will cause a strong fuel smell around your car. Sometimes, these noxious fumes may accumulate inside the cabin, which will be problematic for most drivers.

Can a car run without a charcoal canister?

Will My Car Run Bad Without a Vapor Canister? Typically, a bad vapor canister will not make your engine run poorly—but the problem can make your car fail an emissions test. What’s more, a bad vapor canister will cause your vehicle to release more pollutants into the atmosphere.

When should I replace my charcoal canister?

There are at least a few reasons you might need to replace the canister. Symptoms you may notice from a faulty charcoal canister might include check engine light (CEL), difficulty refueling, poor engine performance, excessive fuel odor, or the reduced fuel economy.

Can I delete my EVAP canister?

Basically all you need to do is locate your Fuel Tank Vent Line and unplug it from the Charcoal Canister. Locate your Vapor Purge Valve and unplug the lower hose that connects to the Charcoal Canister. Now plug the Fuel Tank Vent Line directly to the Vapor Purge Valve.

Is a vapor canister the same as a charcoal canister?

Yes, the Charcoal and Evap. canister are the same part.

How long do charcoal canisters last?

Most of them will last the life of the car and never need replacing. If you’re having issues with your emissions system and error codes related to the canister’s purge solenoid, you may need to investigate. Chances are, the canister will be fine and you just need to change the solenoid.

Will a bad EVAP canister cause stalling?

The purpose of the EVAP system is to prevent large amounts of fuel vapors from escaping into the atmosphere and from getting into your vehicle. … In addition, the buildup of fumes inside of the canister can cause your vehicle to stall or misfire.

How do you remove a charcoal canister?

This is just forward of the gas tank and has several plastic fuel-line connections running into it. Disconnect those lines using the flathead screwdriver. Unbolt the charcoal canister from the frame using a 3/8-inch ratchet and socket. Slide the canister out of the bracket and remove it from the vehicle.

Article first time published on

What are the symptoms of a bad vapor canister purge valve?

Check Engine Light.
Rough Idle.
Trouble Starting Car.
Poor Engine Performance.
Emissions Test Failure.

What causes incorrect purge flow?

Diagnostic trouble code (DTC) P0441 stands for “Evaporative Emission Control System (EVAP) Incorrect Purge Flow.” Your car’s computer will set the code when it determines there’s an improper amount of fuel vapor being “purged” from the EVAP charcoal canister into the engine.

What is inside a charcoal canister?

The interior of the canister is filled with charcoal or carbon pellets. The input of the canister connects to the gas tank’s vent port, while the output connects to the purge valve in the side of the vehicle’s intake manifold.

How do I know if my purge valve is stuck open?

The most common problem with the purge valve is when it sticks or does not close fully. This may cause the “Check Engine” light to come on. In some cars, a stuck-open purge valve can cause difficulty starting right after refueling at a gas station: for the first few seconds the engine may run rough and stumble.

Where is the vapor canister vent solenoid located?

In most cars, the EVAP vent valve is located underneath the vehicle, close to or at the charcoal canister near the fuel tank, see the photo. For that reason, it often fails due to corrosion. The most common problem with the vent valve is when it sticks open or fails.

Will an EVAP code clear itself?

If the condition that caused it to come on is a minor fault, and stops occurring, then yes, it will clear itself. If the condition indicates a larger problem, then it will stay on until cleared manually.

What is a code po441?

Code P0441 Meaning The evaporative emission control (EVAP) system prevents fuel vapors from escaping into the atmosphere. … However, when check engine light code P0441 is set, the purge valve is not properly regulating the flow of the fuel vapors by allowing too much flow or too little flow.

What can cause a large EVAP leak?

Gas cap is missing, left open, or not secured properly.
Gas cap is faulty or damaged.
Fuel tank filler neck is deformed.
Fuel tank is cracked or damaged.
Fuel tank pressure sensor is faulty.
Charcoal EVAP canister is cracked or damaged.

What is a charcoal canister for Miata?

The EVAP system uses the charcoal canister to store fuel vapors that escape the cas tank through a tube. … This allows environmentally harmful fuel vapors from entering the atmosphere, and increases fuel mileage over a tank of fuel.

What is EVAP canister?

The EVAP canister is usually rectangular plastic container mounted somewhere in the vehicle. The canister is filled with activated charcoal, which absorbs and stores gasoline vapors. The vapors are stored in the canister until the engine is being driven.
