Can you run electrical wire above ground

You can run electrical wire outside to nearly any location. Although some types of electrical cable do not have to be enclosed in conduit for outside installation, enclosing any exposed cable is a good idea.

How high off the ground should electrical wires be?

Power Lines Over Streets and Roadways With Commercial Traffic. For any driveways, alleys, roads, or streets likely to carry vehicles more than 8 feet in height, the guideline is for all power lines to be at least 15.5 feet above the ground measured at their lowest point.

Does outdoor wiring need to be in conduit?

Generally speaking, yes, outdoor wiring needs to be in conduit to protect it from physical damage. Type UF cable needs conduit when exposed, no need for conduit on the buried sections.

How do I run electricity to my shed above ground?

Running electrical lines above ground is usually not recommended for a shed. Instead, run wiring out to the shed via a specialized underground conduit. But be wary of installing this without identifying all other possible utility lines in its path.

Do I have to bury electrical wire?

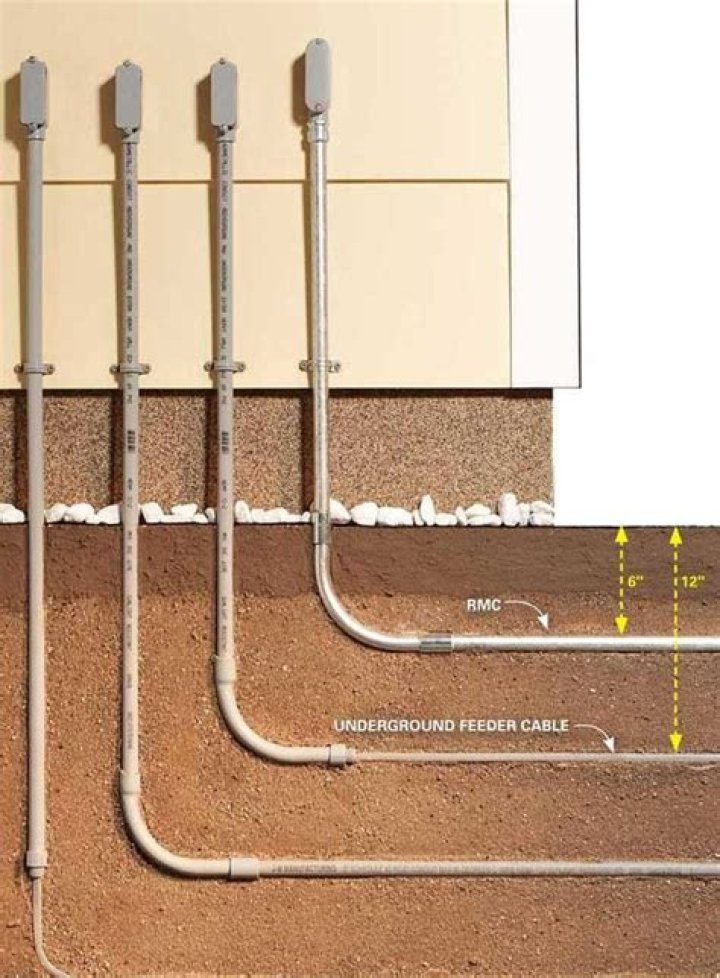

In general, bury metal conduits at least 6 inches below the soil surface. You may also run them at a depth of 4 inches under a 4-inch concrete slab. Under your driveway, the conduits must be below a depth of 18 inches, and under a public road or alleyway, they must be buried below 24 inches.

Why are electricity cables above ground?

Cables are typically installed 1m below ground, whereas the conductors of an overhead line are typically more than 10m above ground, so the magnetic field directly above such a cable is usually higher than that directly below the equivalent overhead line.

Can I drill above an outlet?

The vertical wires are typically pretty easy to avoid: avoid drilling above a receptacle or light switch. The horizontal runs should have enough space to avoid most damage, unless you drill into the hole in the stud that they pass through.

What is code for buried electrical wires?

Low-voltage (no more than 30 volts) wiring must be buried at least 6 inches deep. Buried wiring runs that transition from underground to above ground must be protected in conduit from the required cover depth or 18 inches to its termination point above ground, or at least 8 feet above grade.

What kind of electrical wire can be buried underground without conduit?

Direct burial wire is a type of outdoor electrical wire that is buried underground, usually without conduit. Naturally, these cables have to possess distinct characteristics to withstand the environment of the ground.

Can you use an extension cord permanently?

Conclusion. The authorities do not want people to use extension cords permanently because they present a fire, electrocution, and tripping hazard. If you are determined to use an extension cord over the long term, don’t cover it. You shouldn’t pass it through walls, ceilings, and floors.

Article first time published on

Can electrical wire be exposed outside?

You can run electrical wire outside to nearly any location. Although some types of electrical cable do not have to be enclosed in conduit for outside installation, enclosing any exposed cable is a good idea. Schedule 40 polyvinyl chloride (PVC) conduit for electricity is gray and is rated for sunlight resistance.

How do you bury outdoor electrical wire?

1. At 24-in. …
2. There’s one restriction: It needs a conduit where the cable is exposed on the outside of the house and to 18 inches below the ground.
3. Burying the cable 24 inches requires more digging, so this method only makes sense if you have easy-to-dig soil or are renting a trench digger.

Can I use normal electrical cable outside?

Cables for external use have been designed to survive the adverse conditions in the outdoor environment. … Unprotected outdoor cables must, as a minimum, be weather resistant, which includes protection against the typical ambient temperature range, UV light, ozone and water.

Can I run water and electric in the same trench?

If trench is to be a joint trench (shared with other utilities) the following separations must be maintained: 24 inches between gas and electric lines. 12 inches between water and electric lines. … 12 inches between communications and electric lines.

What size wire do I need for a 500 foot run?

500 Feet – a 120-volt, 20 amp circuit would require 1/0 AWG wire. A 240 volt, 30 amp circuit would require 3/3 AWG wire.

Can you nail above an outlet?

The vertical wires are typically pretty easy to avoid: avoid drilling/nailing above a receptacle or light switch, or, if you have to, avoid missing on the side that the receptacle is nailed to.

Do electric socket cables run up or down?

Wires can be run anywhere. In a wall they can come from below, from above, or from another outlet to another outlet horizontally through the wall.

Can I drill a hole next to an outlet?

Avoid drilling near light sockets or outlets Wires in the wall often connect vertically and horizontally behind outlets and sockets and can lead to electrocution. Hitting a pipe in the wall can cause flooding. A simple rule of thumb is to avoid drilling anywhere near where there may be electrical hookups or piping.

Can electric lines be underground?

Nationally, roughly 25 percent of new distribution and transmission lines are built underground, according to a 2012 industry study. Some European countries, including the Netherlands and Germany, have made significant commitments to undergrounding.

How far can I run power underground?

14 AWG50 feet12 AWG60 feet10 AWG64 feet8 AWG76 feet6 AWG94 feet

Why don't they run power lines underground?

At first, people complained utility poles, as they would come to be called, were unreasonably ugly. Today, people claim they’re unreasonably risky. Each year, hurricanes, snowstorms, and an assortment of other weather events destroy above-ground utility poles. Heavy snow and ice can snap wires.

Can you run Romex underground?

Romex cannot be used in the situation you describe as buried conduit is considered a wet location. You must use conductors such as THWN. Also, minimum burial depth for conduit (PVC I assume) is 18″, unless you run rigid or IMC, in which case you can go a minimum of 6″.

Can you bury wire without conduit?

Direct Burial rated wire is approved to be run in the earth in accordance with the National Electric Code (NEC), usually without the use of conduit to surround it. The combination of the insulation material and its thickness keeps out moisture and other harsh factors to protect the wires inside.

Can you use twin and earth outside?

T&E has been in use outdoors and over cateneries for decades without any issues whatsoever. Agreed. If fact the (16th Ed) OSG in appendix 3 says T&E is generally suitable “on exterior surface walls, boundary walls and the like” with just a comment that protection from sunlight may be necessary.

Does electrical wire have to be in conduit?

There are no wires in conduit and they must be installed, or pulled, through the conduit after installation. … Rigid conduit is used for very large wires, exterior installations and where structural strength is required. EMT is the most common conduit used in residential wiring.

Can you bury a heavy duty extension cord?

In general, you can’t bury the outside extension cord. Using a standard extension cord is designed initially only for temporary use. Instead, you can use a more suitable cable type for any permanent outdoor purposes, such as a direct burial UF cable.

Can I put an extension cord underground?

You can only bury direct burial rated cable. Any old extension cord, whether rated for wet locations or nor, will suffer insulation failure over time. If you need power somewhere else than your outdoor outlet, have an electrician install a new circuit and bury it to the new outlet where you need power.

Is it safe to leave extension cords plugged in outside?

Never use indoor extension cords outside, they are not built for such rugged use. Do NOT leave even your outdoor extension cord outside more than a day or two. Left outside over extended periods, cord materials can breakdown, potentially resulting in sparking, fire, and shock.

Is it OK to run Romex in conduit?

Running Romex in a Conduit When using any non metallic wire outdoor, including Romex, it is a good idea to run it through a conduit. Yes, they can be used outdoors, it is better to be safe than sorry. We recommend using a conduit when running the wire underground.

Can Romex wire be exposed in a garage?

No, you cannot expose Romex wires or non-metallic sheath wires in the detached garage or anywhere. Because it’s not safe to expose it on the outside. Besides, it goes against the National Electrical Code or NEC.

What cable can be used outside?

Outdoor-rated cables are differentiated by their UV-resistant jackets. These types of cables are designed to be used outside, but not buried. Outdoor-rated cables are made to withstand heat and UV rays, and their UV-resistant jackets are either made out of PE or a UV-resistant PVC material.
