Do shower drains have traps

The shower drainage features a piping that has a trap as part of its key components. The trap in the shower drain works like the one beneath the kitchen sink. While the sink trap is P-shaped, you may find some S-shaped shower traps.

How does a shower drain trap work?

Similar to a kitchen or even toilet trap, a shower trap always retains a certain amount of water to seal off any gases emitted by the sewer that could come into the bathroom. When in use, shower water will flow into the drainage to create a vacuum, which can slow down the discharge of the water itself.

Where is the shower P-trap located?

A shower P-trap is located beneath the shower drain hole. It may be one solid piece of pipe or it may be an extension pipe attached to a J-bend pipe to form a “P.” P-traps are removed using the same process in either case. Access to the P-trap is the key element in the process.

Do bathtub drains have traps?

P-traps are S-shaped pipe components that keep toxic sewer gases from escaping into your residence. They are required on all plumbing fixtures, including sinks, tubs and showers. … A bathtub trap begins at the end of the tub drain assembly, where it is glued onto a fitting screwed to the drain outlet.

Is shower drain supposed to have water in it?

2 Answers. Yes it’s normal and what you want. It’s called a P-trap and the water sitting in there seals out the sewer gasses.

Why do you need a shower trap?

Yes, shower and tub drains require a trap in the plumbing to prevent harmful sewer gases from coming into the home.

Do I need AU bend with a shower trap?

Newcomers to bathroom plumbing sometimes ask, ‘why do I need a U bend? ‘ The simple answer is that the water trapped in the U bend acts as a barrier to the foul smells that otherwise rise from the sewer or other drainage pipework. This is why it is an absolute requirement in the building regulations.

What is a shower trap?

Shower traps are designed to take waste water out of a property to a drain. The shallow bent tube is installed within a confined watertight area under the tray which prevents smells from coming up into the room. Unscrewable to remove clogged hairs that can cause blockages.

How deep should a shower trap be?

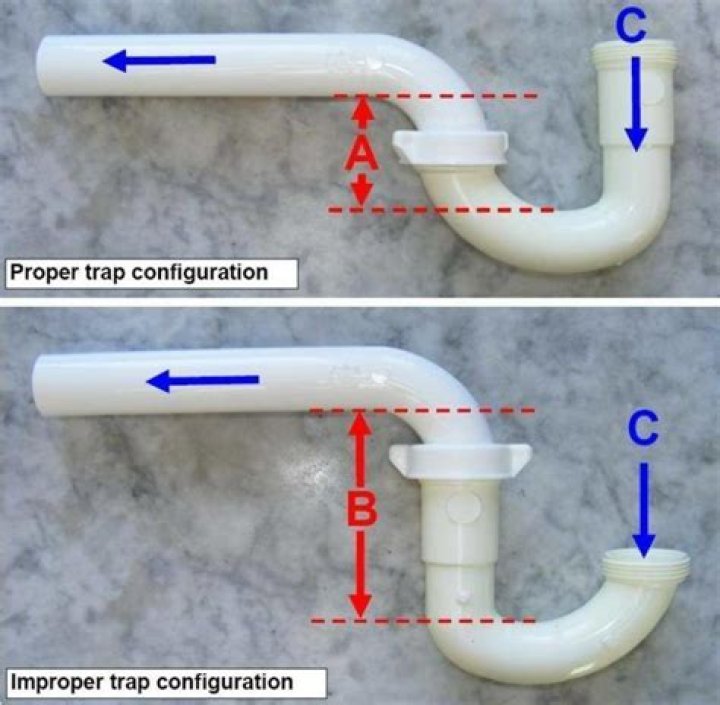

To prevent these problems, plumbing codes require that the water seal in a trap be between 2 and 4 inches deep (2006 to 2018 IRC, P3201. 2).

How far can a trap be from a shower drain?

The maximum distance between the shower drain and the P-trap is 5 feet. However, the P-trap should be as close to the shower drain inlet as possible. You should even have the P-trap directly under the shower drain for the best results.

Article first time published on

Why does my shower smell like sewer?

Smells in a shower drain can be caused by odor-causing bacteria that feed on debris in the pipe. Some of these anaerobic bacteria live in fetid water in the P-trap and produce hydrogen sulfide gas, which smells like sewage. Other odors can also be caused by the debris itself, like hair or soap scum build-up.

How much does a shower P trap cost?

P Trap Replacement Prices The p-trap, also known as a sink trap, runs between $200 and $325 to replace. Costs will vary by location – urban areas with higher costs of living can expect higher installation prices.

Why won't the water in my shower drain?

The blockage could be caused by a build-up of hair, grease and soap. Other possible causes are a build-up of dirt or minerals from your water or tree roots growing through tiny cracks in your underground pipes. To access your drain, you may need to remove the drain cover.

Why does my shower drain smell like rotten eggs?

A rotten egg smell is caused either by biofilm clogging the shower drain or the backup of sewer gasses through the drain. Decomposing biological debris trapped in the drain produces an odor and must be removed to eliminate the smell. … The p-trap also stops sewer gases from backing up through the drain.

Which is better S trap or P-trap?

P-traps are generally considered by most to be more effective and consistent in maintaining water trap compared to S-traps. Their design makes them less vulnerable to drying out and losing seal: a properly installed P-trap will never lose its water seal.

Do all drains need a trap?

Because of its shape, the trap retains some water after the fixture’s use. This water creates an air seal that prevents sewer gas from passing from the drain pipes back into the building. Essentially all plumbing fixtures including sinks, bathtubs, and showers must be equipped with either an internal or external trap.

Does a shower trap stop smells?

This is called a P-trap, and the purpose is to hold a small amount of water at all times to block sewage gasses from coming back up the pipe and into your bathroom. … This is an easy fix – just run water in the shower for a few minutes and the P-trap will refill and the smell should go away.

What is the rough in for a shower drain?

ToiletShower/TubDischarge/Drain Hole from Back Wall12 1/2″14″Discharge/Drain Hole (Vertical)0″0″Fixture (Side to Side Buffer)15″ to 18″ min18″ minFixture (Front Buffer)21″ min18″ min

Why does a shower require a 2 inch drain?

A 2-inch pipe is the recommended size because showers have a low threshold for flooding, and a 2-inch pipe helps the water drain faster than does a 1 1/2-inch pipe. So, if you are converting from a tub and shower combination to a shower, you’ll likely have to change the drain pipe size.

Where do shower drains lead to?

If you are not connected to a sewer system, your water drains into a septic tank. In the tank most of the solids settle out while the liquid water will go on to flow through underground pipes that have holes drilled into them; those holes allow the water to seep out and into the ground.

Does P trap have to be directly below shower drain?

It doesn’t have to be directly under the shower drain, but it should be as close as possible. Shower drains and traps are notorious for getting hair clogs, and it’s best if they are reachable with a drain snake or cleaning tool of some sort.

Can a shower and sink share a drain?

Is It Possible to Have the Same Drain for the Shower and Sink? Yes, the drain for the shower and the sink can be the same. The shower and sink can use the same drain pipe if it is well below the sink and shower level.

Does P trap have to be straight?

Does a P trap have to be straight? The two main parts of a P-trap do not need to be in the same vertical plane. As noted by others, they can be rotated well out of plane to each other when fitted, and commonly are. The horizontal part, its wall tube, should go straight into the house drain system wall pipe.

Does peeing in shower make it smell?

Urine smells can sometimes be an issue in the home when someone urinates in the shower and the urine rinses down the drain. While you may think the urine and odor will wash away, you often notice a lingering urine odor that makes the shower experience very unpleasant.

What is good to pour down a smelly drain?

Pour baking soda and vinegar down the drain: Run hot tap water for several seconds, and then turn the water off. Dump one cup of baking soda down the drain followed by two cups of hot vinegar. Let the concoction fizz. After one hour, flush the drain with hot tap water.

How do I get the musty smell out of my shower drain?

To clean it, you’ll start by pouring ½ cup of baking soda down your drain and then follow that up with ½ cup of distilled white vinegar. Cover your drain and give the mixture time to dissolve the sediment.

What is the average cost to replace a shower drain?

Install a Shower Drain: national average cost The national average materials cost to install a shower drain is $56.20 per drain, with a range between $50.42 to $61.98. The total price for labor and materials per drain is $304.76, coming in between $276.31 to $333.21.

How much do most plumbers charge per hour?

One website says that the cost of a plumber ranges from $175 to $450 for a typical job with the average cost per hour ranging from $45 to $200. This can include jobs like repairing faucets, toilets, sinks or bathtubs. Depending on the job, some plumbers charge a flat rate, or service fee of $300 on average.

How much does it cost to fix a leaking shower drain?

Type of RepairAverage Repair Costs (Labor Included)Drain Pipe$100 – $400Door$100 – $500Pipe$100 – $600Pan$150 – $500

Can you snake a shower drain?

Shower drains can easily be clogged with hair and other debris, but fortunately, they are among the easiest fixtures to clear using a drain snake. … Sink and bathtub drains often require that you disassemble the drain trap in order to snake out the clog.
