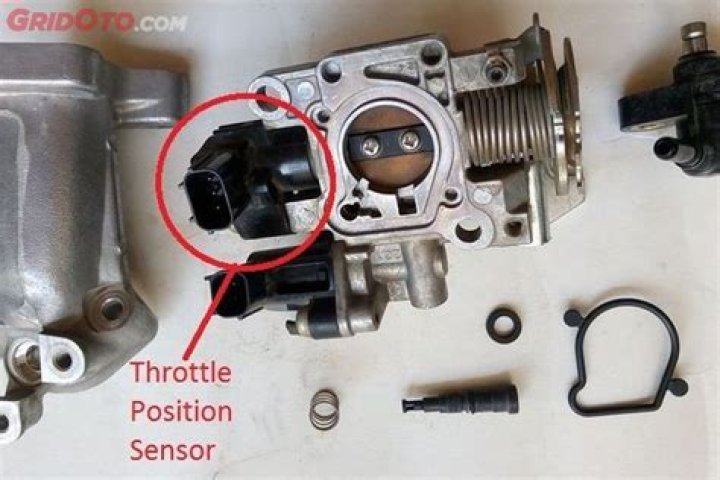

Does throttle position sensor affect idle

Not only will a faulty throttle position sensor cause problems as you attempt to accelerate, but it can also give you trouble as the car idles. Even though you are not pressing the gas pedal at idle, the sensor may still be delivering inaccurate data.

What are the symptoms of a bad throttle position sensor?

• An unexplainable bucking and jerking in the vehicle.
• Sudden idle surges.
• Sudden engine stalling without any apparent reason.
• Hesitation while accelerating.
• Sudden surges in speed while driving on the highway.
• Intermittently flashing of check engine light for no apparent reason.
• Difficulties in changing gears.

Does TPS control idle?

TPS gives to the onboard controller information about the idling, deceleration, rate of acceleration and the fully open throttle valve state (WOT). … Fuel supply is resumed after the engine speed reaches its idle value or when the throttle valve is open. Some cars allow adjustment of these values.

Can a bad TPS cause low idle?

Unstable Engine Idle: Faulty position sensors can cause sporadic idle conditions due to fluctuating airflow. If you see your car misfiring, Idling rough, or stalling out while you drive then you definitely want to have a professional check out that sensor.

What happens when you unplug throttle position sensor?

The TPS as we call it is one of the most important sensors on the engine. Without it, the computer has no way of knowing when you push down on the gas or open the throttle. Best it can do it watch some other sensors and make some estimated guesses. On some cars, it may burp just as you unplug it if it’s running.

What causes RPMs to fluctuate at idle?

Why does my engine’s RPM seem to fluctuate (runs rough)? Many engine performance problems can be linked to maintenance issues such as stale fuel, dirty air filter, fouled spark plug, and deteriorated oil. … Engine hunting and surging at idle is usually caused by a fuel delivery, air leak, or governor system problem.

Will a bad TPS always throw a code?

the engine’s computer has built-in logic that monitors the tps feedback to make sure it matches up with information sent by other engine sensors. a faulty tps can set a trouble code in the computer if the voltage value is either not present, sporadic, slow or constant, and this can illuminate your check engine light.

What controls engine idle speed?

Idle speed is controlled by using an electronically controlled throttle bypass valve, as seen in Fig. 6.6, which allows air to flow around the throttle plate and produces the same effect as if the throttle had been slightly opened such that sufficient. flows to maintain engine operation.

What happens if TPS is not calibrated?

If your TPS is faulty or uncalibrated, the sensor will be unable to accurately determine the position of the sensor. This will lead to a variety of symptoms, all of which are caused by the fact that the ECM is delivering the wrong air/fuel ratio to the cylinders thanks to the bad sensor.

What sensors control idle speed?

The computer monitors idle speed by counting ignition pulses from the ignition module in the distributor or crankshaft position sensor when the throttle position sensor or throttle switch signals the computer that the throttle is closed and the engine is at idle.

Article first time published on

Can a bad throttle body cause a high idle?

4. Poor or high idle. When a throttle body is not functioning correctly, some noticeable characteristics may be poor or very low idle. … In the case of a vacuum leak, you may experience a very high idle, which is caused by too much air being allowed into the intake system.

How do I reset my throttle position sensor?

This step can also be necessary when you install a new sensor. The easiest way to reset your throttle position sensor is to unhook the negative cable from your battery for up to five minutes or to remove the fuse for your engine control module.

Does throttle position sensor affect transmission?

The Throttle Position sensor measures the throttle position, which is controlled by the gas pedal. It is used to determine engine load and if it fails it can cause automatic transmission shifting problems.

How do I calibrate my accelerator pedal position sensor?

To recalibrate the ECM and accelerator pedal, the ignition switch must be in the ON position and then the accelerator pedal must be slowly and fully depressed from idle to full throttle. Repeat the procedure three times.

What causes a miss at idle?

Many system malfunctions can cause misfires or rough idling. Ignition system components, including spark plugs, plug wires, ignition coils and ignition timing are culprits as are lean air/fuel mixtures and mechanical issues within the engine.

Why are my rpms bouncing while driving?

When the transmission develops a leak and fluid levels fall, a vehicle will begin to rev at higher levels as a result of the gearbox band or torque converter slipping. The vehicle may also experience irregular or delayed gear shifting. A manual vehicle experiencing this difficulty may be related to a slipping clutch.

Does a throttle position sensor need to be calibrated?

Once you have fitted a Throttle Position Sensor, or TPS, you will need to calibrate it from within MEITE. The signal on the chosen pin should sweep from approximately zero to five volts as you move the throttle from fully closed to fully open. …

What is the typical throttle position sensor TPS voltage at idle?

A constant, unbroken, voltage output at around 0.7 V, with the throttle at its idle position. As the throttle moves from its idle position, at around 0.5 s, the output progressively increases with increasing throttle opening. With the throttle at its fully open position, the output is around 3.7 V.

What causes engine idle high or low?

The most common problem is a faulty fuse. In modern vehicles, engine idle speed is most often controlled by the idle air control (IAC) motor. … When your car’s throttle is malfunctioning, this can cause your car to stall or idle high. Often this is a result of dirt buildup in the air intake.

What does the idle control sensor do?

An idle air control valve, also called an idle air sensor control motor, is an electrically operated valve that controls the amount of air that bypasses the throttle plate in cars with a fuel injection system [source: Autozone]. This causes the idling speed of the engine to change as needed.

How do I increase the idle speed on my throttle body?

Turn the idle screw, now exposed from the protective rubber coating, in order to adjust the idle. Loosen the screw in a counter-clockwise fashion to increase idle speed or tighten it in a clockwise manner in order to decrease the idle speed. Ideally, you will want the idle to rest at 650 RPM.

What RPM do diesels idle at?

If you consider stock gasoline / diesel engines, their respective Idling RPM is around 750–800 RPM to 950–1000 RPM and around 600 RPM.

Can a bad 02 sensor cause high idle?

Yes, a bad O2 sensor can cause a high, or rough, idle. The oxygen sensor output is part of the systems that control engine timing, combustion intervals, and the air to fuel ratio. When it starts to go bad, it can cause rough idling, loss of power, hesitation, or stalling.

Why does my engine idle high after cleaning throttle body?

Cleaning the throttle body allowed more air to enter the engine, and the computer is compensating by adding more fuel. The idle will relearn if you put the vehicle in drive and allow the idle to come down with all accessories off for about two to three minutes.

Can speed sensor cause shifting problems?

Transmission problems One of the most common signs of a bad speed sensor is abnormal automatic transmission operation. If the VSS is faulty, the transmission may exhibit symptoms such as delayed shifts, hard shifts, and limited gear operation.
