How big is a sheet of durock

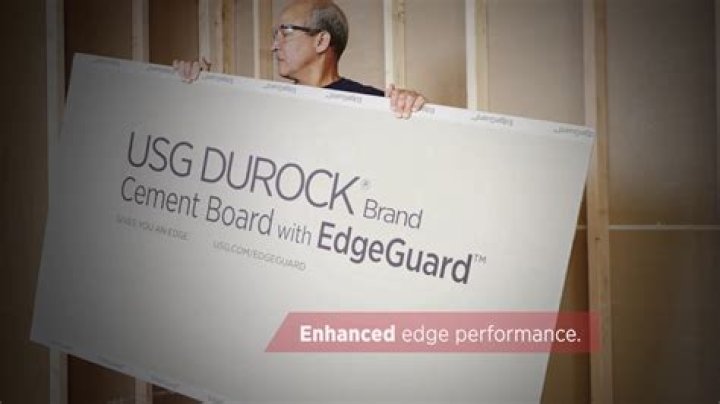

DUROCK Brand 3-ft x 5-ft x 1/2-in Cement Water Resistant Backer Board.

What size are sheets of durock?

DUROCK™ 5/8 x 4′ x 8′ Cement Board at Menards®

Which is better Hardibacker or durock?

HardieBacker is also the go-to choice when it comes to countertops and tile. Durock is too abrasive and can damage vinyl, porcelain, and enamel. HardieBacker does not contain any course materials, so it is the preferable choice. It has a warranty that extends over the use of vinyl tile applications.

How big is a sheet of cement board?

Cement board, technically called cementitious backer unit (CBU), is manufactured under different brand names. The standard size sheet is 3 x 5 ft.and 1/2 in. thick, weighs 45 to 60 lbs.

What is the best way to cut durock?

To cut DUROCK Brand Cement Board, mark desired size on the board with a rule and pencil. Score both sides and edges with a utility knife through the glass-fiber mesh, and snap the board to size. Smooth cut edges with wood rasp.

Is durock a drywall?

Mold resistant drywall is exactly as it states. It is made just like regular drywall except that is had more fiberglass in it and the paper has less organic product in it. …

What thickness is backer board?

Cement backer board comes in two standard thicknesses, 1/2 inch and 1/4 inch. The industry standard is to use 1/2-inch-thick backer board on wall tile installations, such as a tub surround.

Can you durock 1/4 walls?

3 Answers. 1/4″ hardibacker alone is an unsuitable substrate for shower wall tile. If it were attached to properly waterproofed drywall, plywood, or plaster it would be fine. Think about it, one wayward elbow, knee, or hip bump and you may get flexion which would cause the grout (or tile) to crack.

Do you need a vapor barrier behind cement board?

You should NOT place a vapor barrier BEHIND the backer board. Where, pray tell, would any such collected vapor/water go? Answer:There’s nowhere proper for such moisture to egress. The current best practice is to place waterproofing OVER the backetboard and just UNDER the tile.

What is the best backer board for showers?

Cement board is a good, reliable backer board that works well on both floors and walls. Keep in mind that most tile setters err on the side of caution and brush a waterproofing membrane on top of cement board when it is in wet areas like showers or tub surrounds.

Article first time published on

Is durock waterproof?

Liquid-applied waterproofing and crack isolation membrane and vapor retarder ideal for waterproofing showers and other wet areas.

How far apart are screws in durock?

Fasten panels to subfloor while the adhesive is wet with 32 mm (1-1/4″) CGC Durock Wood Screws or 38 mm (1-1/2″) hot-dipped galvanized roofing nails spaced 203 mm (8″) o.c. in both directions.

Can you use drywall screws on cement board?

You don’t want to use regular drywall screws for cement boards. They can corrode, they can break down the edges of the boards, and they won’t drive in flush properly. Use ITW’s ROCK-ON and BACKER-ON screws instead.

Can I cut durock with a jigsaw?

Use power tools on large projects or thick Durock to muscle through the process with ease. A circular saw with a carbide-tipped woodcutting blade is the best tool for the job. … While a jigsaw or an angle grinder fitted with a cutting wheel can also cut Durock, these options result in more mess and less accuracy.

Is 1/4-inch cement board enough?

Floors: A 1/4-inch minimum thickness is needed, but thicker panels are also fine. Walls: Use 1/2-inch or 5/8-inch-thick cement board, not 1/4-inch. The extra thickness is needed when spanning the studs and it provides a solid base for the tile.

What is the thinnest backer board for tile?

It does suggest that 1/4-inch cement backerboards are generally useful for the underlayment of tiled floors.

Can you use 1/2-inch cement board on floors?

Floors. Both 1/4- and1/2-inch cement board are appropriate for floors. To install cement board on floors, cement board manufacturers mandate a 5/8-inch plywood subfloor or OSB underlayment. They also require a 3/4-inch subfloor where tile size exceeds 12 inches.

Can you use drywall mud on durock?

Things You’ll Need Durock Cement Boards are a type of drywall reinforced with cement for a harder surface. This type of wall material can be finished just like ordinary drywall, using joint tape and joint compound.

Does durock grow mold?

USG Levelrock and USG Durock™ gypsum underlayments do not support mold or mildew growth, but there is always a chance for such growth to start from other organic materials, such as latex paint or sawdust, that may have contaminated the underlayment surface.

Is durock mold resistant?

DUROCK, USG’s cement board is water-resistant, which prevents mold accumulation, and is easy to install. Dan Collins, Senior Manager at USG, recommends using MOLD TOUGH in lieu of standard sheetrock and green board in basements, kitchens and baths.

How do you tape drywall to cement board?

1. Apply 2–3 coats of joint compound to the seam between wall boards.
2. Wait at least 24 hours between coats of joint compound.
3. Use this setting-type joint compound over mesh tape for best results.
4. Do not use thinset mortar to seal a joint between drywall and cement board.

Do you need to tape cement board?

2 Answers. The thinset and mesh tape are to strengthen the seams. If you are going to tile over the cement board, you should tape the seams. This should not be that difficult.

Is cement board the same as DuROCK?

Durock and Hardiebacker are two different brands of cement backer boards used in rooms that are susceptible to moisture buildup. While both of these brands offer products that are highly raved about by users, each brand does have their own features that set them apart from each other.

How thick is durock Cementboard?

1/4″ USG Durock® cement board is an ideal substrate for floor and countertop ceramic tile installations. The 1/4″ thickness helps eliminate transition trim when abutting carpet or wood flooring and minimize level variations with other finish materials.

How thick should backer board be for shower walls?

The minimum recommended thickness for the shower wall is 1/2″ because like some of the other boards, they become far too flexible at thicknesses below 1/2″. Foam shower tile backer boards are generally about 4x the cost of cement board.

How thick is tile and thinset?

In most installations, a layer of thinset 3/16 to 1/8-inch thick is sufficient. Too much thinset creates a mess and inhibits proper bonding between the tile and the substrate. For most tiles, apply a layer of thinset 3/16–1/8-inch thick.

Do I need to waterproof shower walls before tiling?

Applying a waterproofing sealer to cement backer board before tiling. Since a tile tub or shower surround gets wet, it requires a waterproof backing, rather than just drywall.

Can durock get rained on?

After application, and for at least 24 hours, finishes, leveling/skim coats and basecoats should be effectively protected from rain and excessive moisture.

Do you need waterproofing on durock?

Durock (USG): If waterproofing is desired, use USG Durock™ Tile Membrane or USG Durock™ Brand Waterproofing Membrane. Hardiebacker (James Hardie): the use of a waterproof membrane, vapor barrier or vapor. retarding membrane is optional unless the local building code requires it.

Does durock need to be taped?

For tile backer boards such as Durock, Wonderboard, Hardiebacker, Permabase, and others the seams between the board need to be treated with 2-inch alkali-resistant mesh tape. … It helps to make the walls that are to be tile more monolithic.

How many screws come in a 3x5 sheet of durock?

Fasten the DUROCK Brand Cement Board with 1-1/4 hot-dipped galvanized roofing nails or 1-1/4 DUROCK Brand Screws. In both directions, the floor must be at least 1/3.
