How deep should wires be chased into walls

For cables* within walls protection can be provided by ensuring the cables are at a depth of not less than 50mm from the finished surface of a wall of either solid or framed construction.

How deep should a cable be buried in a wall?

For cables* within walls protection can be provided by ensuring the cables are at a depth of not less than 50mm from the finished surface of a wall of either solid or framed construction.

How deep do electrical wires need to be?

In general, bury metal conduits at least 6 inches below the soil surface. You may also run them at a depth of 4 inches under a 4-inch concrete slab. Under your driveway, the conduits must be below a depth of 18 inches, and under a public road or alleyway, they must be buried below 24 inches.

How deep do wall chases need to be?

The document states that, vertical chases shouldn’t be deeper than 1/3 leaf of the wall, and horizontal chases shouldn’t be deeper than 1/6 of the leaf.

Should cables in walls be in conduit?

9 Answers from MyBuilder Electricians All cables should either be contained in steel conduit or protected by 30mA RCD. If these two cannot be met, then the cables should be installed at least 50mm (2″) from the surface.

Can you bury wire without conduit?

Direct Burial rated wire is approved to be run in the earth in accordance with the National Electric Code (NEC), usually without the use of conduit to surround it. The combination of the insulation material and its thickness keeps out moisture and other harsh factors to protect the wires inside.

How do you chase a wall through cables?

1. A strong sand/cement mix (3:1:1 soft sand:sharp sand:cement). or.
2. One Coat plaster or patching plaster. or.
3. A standard decorator’s filler.

What is the code for underground wiring?

Low-voltage (no more than 30 volts) wiring must be buried at least 6 inches deep. Buried wiring runs that transition from underground to above ground must be protected in conduit from the required cover depth or 18 inches to its termination point above ground, or at least 8 feet above grade.

What size wire do I need to run 150 feet?

150 Foot Run – A 120-volt circuit on a 20 amp breaker will require 6/2 AWG wire for 150 feet.

Can you run cables horizontally in walls?

Yes you can,the 17th regs says cables should be run verticaly or in safe zones you can also run horizontaly between two live points,in other words socket to socket.

Article first time published on

Do I need to cover cables before plastering?

“You should cover the cable with capping before plastering over it. This so the cable is protected over the plaster.”

What is a wall chaser tool?

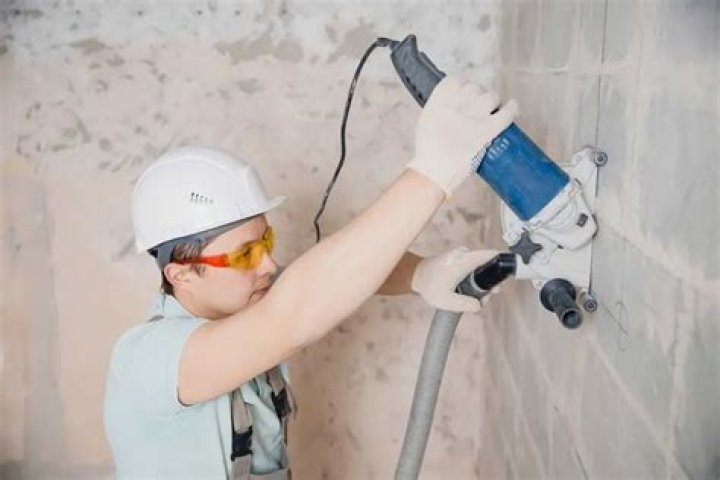

Wall chasers are a twin bladed power tool used for cutting narrow channels into brick, stone or concrete walls, perfect for electricians and plumbers.

Will cement damage electrical cable?

It is not damaging to the cable, but it does mean re-threading is impossible, so any repair involves a chisel.

Do you need to fill holes before plastering?

Filling holes and doing the prep work is easy unless you want to pay someone extra to do it. Due to shrinkage it might be best to have the worst of it filled in first and allowed to dry fully before skimming.

What does URD stand for in electrical wire?

Underground residential distribution wire (URD) is a specialty aluminum wire intended for use in residential construction and light to medium duty commercial applications.

How long does underground wiring last?

If you’re living in or buying an old house, the wiring will eventually need to be updated. Electrical wiring has a life expectancy of 50 to 70 years. The copper in electrical wiring can last over 100 years; however, the outer protective sheathing will degrade much sooner.

How far can I run 6 gauge wire?

14 AWG100 feet10 AWG128 feet8 AWG152 feet6 AWG188 feet

What size wire do I need to run 300 feet?

for 300 feet for 100 amp rated service I would use Aluminum direct burial 1/0-1/0-1/0-1/0, the forth can be as low as #4 for the ground (but also in conduit, even if in conduit must still be rated underground wire and required by code also) Also note the size wire the breaker can handle, cannot cut strands to make fit, …

How far can you run 12 gauge wire on a 15 amp circuit?

Originally Answered: How far can you run 12 gauge wire? The National Electric Code states that a 5% drop is acceptable at the furthest outlet from the source. So using 12 AWG wire and figuring a 15 amp current draw you get a (one way) distance of 125 feet.

How deep must PVC conduit be buried?

Coated electrical cable in PVC conduit Currently, the National Electrical Code (NEC) tells us that the required burial depth of electrical cables in various rigid non-metallic conduits, such as PVC, is 18 inches.

Can I use underground wire inside?

The most common types of direct burial cable used in residential projects are underground service entrance (USE) and underground feeder (UF). … While standard NM cable is rated only for dry, interior applications, UF cable can be used outdoors as well as indoors.

Can you run conduit on the ground?

Both flexible and rigid conduit can be used for above ground applications. When using flexible conduit, the materials should be anchored every 12 to 16 inches to prevent the conduit from sagging, creating a situation which binds the electrical wire inside.

Do electric cables run up or down?

There are a number of electrical wiring safe zones in which the cables should run: Top of the wall – where the wall meets the ceiling there is a 150mm zone where cables should be run. It is at the top of the wall and runs horizontally around the whole wall.

Do electric wires run up or down?

Electrical wires typically run either vertically, up and down the side of a stud or horizontally. The vertical wires are typically pretty easy to avoid: avoid drilling above a receptacle or light switch.

Can you plaster over chased cables?

No problem plastering straight over cables but if you think you might ever want to pull them out put some plastic capping over them first.

Do cables need to be capped?

Thin galvanised metal capping does not need to be earthed. In fact if the cables are installed within safe zones and the circuits are RCD protected there is no need for any capping or conduit at all and cables can actually be laid direct in the chase and plastered over.

Can you bury live wires in a wall?

However, it is important to terminate the wire in a junction box and avoid burying the wire in the wall. The tape may come off when temperatures change and in such situations, live electrical wires potentially become dangerous.

What size hole do you drill for electrical wire?

Most electricians keep their inspector happy by drilling 3/4-in. holes dead center on a 3-1/2 in. wide stud. This gives them a hole large enough to run two electrical cables and leave 1-3/8 in.

How big of a hole can you drill in a 2x4?

2. Drilling. Any stud may be bored or drilled, provided that the diameter of the resulting hole is no more than 60 percent of the stud width, the edge of the hole is no more than 5/8 inch (16 mm) to the edge of the stud, and the hole is not located in the same section as a cut or notch.

Can you run Romex horizontally?

Most houses are wired in type NM cable (Romex). All wiring should be neat and align with vertical and horizontal building lines. … 14-, 12-, or 10-gauge cable across joists or along the bottom edge of joists. They should run along the sides of joists, through bored holes, or along a continuous 1x attached to the joists.
