How do concrete wedge anchors work

A 5/8” concrete wedge anchor requires a 5/8” hole to be drilled into the concrete. The hole in the concrete needs to be drilled a minimum of 1/2” deeper than the concrete wedge anchor will penetrate into the concrete.

How deep do you drill for wedge anchors?

A 5/8” concrete wedge anchor requires a 5/8” hole to be drilled into the concrete. The hole in the concrete needs to be drilled a minimum of 1/2” deeper than the concrete wedge anchor will penetrate into the concrete.

Will wedge anchors crack concrete?

Drop-in anchors and wedge-type anchors, for example, are now “unqualified” for cracked concrete. In addition, most adhesive anchors are not acceptable for use in cracked concrete.

How deep do wedge anchors need to be in concrete?

When installing a wedge anchor, it’s important to have a minimum of 2-1/2 inches embedded into the concrete. There should also be at least an inch exposed, enough for the attaching material to grab onto.

Which is better wedge anchor or sleeve anchor?

Because of the surface area available in the design , the sleeve anchors hold better and may even work best where the material is not very stable or drilled well . On the other hand the wedge anchor will work very well in precision drills and will provide strong and reliable locks.

What is a wedge anchor for concrete?

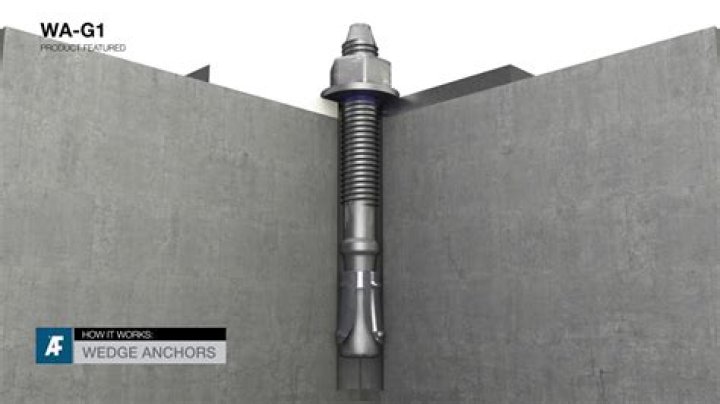

Wedge anchors are designed to anchor objects into concrete. They are installed into a pre-drilled hole, then the wedge is expanded by tightening the nut to securely anchor into the concrete. They are not removable after the anchor is expanded.

Are wedge anchors strong?

Wedge Anchors are extremely popular and are one of the strongest anchors for hold strength. Wedge anchors look and function like a sleeve anchor but have a much smaller sleeve near the bottom of the anchor.

What size hole do I drill for a 3/8 concrete anchor?

Bit size = 3/8” (same as anchor diameter) Drill the hole at least 1/2″ deeper than the length of the anchor. 2. Clean out the hole using a wire brush, compressed air, vacuum, blow out bulb or other method.

What are wedge anchors used for?

What is a wedge anchor used for? Concrete Wedge Anchors are used to anchor and secure materials and equipment to solid concrete masonry surfaces. While they could be used in other masonry materials, this is not recommended.

How deep should the hole be for a lag shield?

The depth should be at least equal to the length of the lag shield you will install, but with a diameter that is larger than the designated size of the lag shield anchor. For example, a 3/4” lag shield requires a 1” hole. Use a vacuum to clear the hole of all dust and debris.

Article first time published on

How long should concrete wedge anchors be?

As a rule of thumb, the space for the nut and washer is equal to the diameter of the wedge anchor being used. For example, if a 2×4 is being fastened to concrete with a 1/2” wedge anchor then the minimum length of wedge anchor would be 1-1/2”(2×4) + 2-1/4”(minimum embedment) + 1/2”(space for nut and washer) = 4-1/4”.

How long should concrete cure before using wedge anchors?

It normally sets in 10 to 30 minutes. After an hour or so, QUIKRETEâ Anchoring Cement will have set sufficiently to screw most types of anchor bolts home. For extreme loads, wait 2 hours before applying load to the anchor. Within 24 hours, QUIKRETE® Anchoring Cement reaches pull-out strength of 12,500 psi.

Can you use wedge anchors in stone?

Wedge anchors can only be used in solid concrete. They cannot be used in brick, block, and mortar joints. While natural base materials such as stone and granite may be solid, they are inconsistent and their holding values have not been tested. … Once inserted into the hole, it is not possible to remove the wedge anchor.

Are wedge anchors the same as expansion anchors?

A wedge anchor is a mechanical type expansion anchor that consists of four parts: the threaded anchor body, the expansion clip, a nut, and a washer. These anchors provide the highest and most consistent holding values of any mechanical type expansion anchor.

What grade are wedge anchors?

Wedge anchors are available in many types of finishes and material grades. The four most common types are: zinc plated low grade carbon steel, hot dipped galvanized, 304 stainless steel, and 316 stainless steel.

How deep should concrete anchors be?

Steps to Installing Concrete Fasteners The hole should be drilled 1/4″ to 1/2″ deeper into the base material than the anchor will penetrate. This allows for any material to fall when the anchor is inserted into the hole. After the hole is drilled, it must be cleaned of all debris, material or dust.

What is the proper spacing between foundation anchor bolts?

Interior braced wall plates shall have anchor bolts spaced at not more than 6 feet (1829 mm) on center and located within 12 inches (305 mm) of the ends of each plate section where supported on a continuous foundation.

How strong is a 3/8 wedge anchor?

SizeMinimum EmbedmentPull-Out (lbs.)3/8”1-1/2”12231/2”2-1/4”29995/8”2-3/4”37493/4”3-1/4”4978

Why are concrete screws blue?

The blue, corrosion-resistant coating enables them to withstand the harshest conditions. And their unmatched performance in concrete, block and brick applications make them an excellent alternative to expansion anchors, plugs and lag shields.

What is a wedge bolt?

Wedge-Bolt® Screw Anchor. The Wedge-Bolt® anchor is a one piece, heavy duty anchor with a finished hex head. It is easy to identify, fully removable and vibration resistant. The steel threads along the anchor body self tap into the hole during installation and provide better positive engagement.

Are wedge anchors removable?

Removing wedge anchors Wedge anchors can be removed from concrete in one of three ways: If the hole beneath the anchor is deep enough, simply pound it into the concrete with a hammer. Use a saw or grinding wheel to cut the anchor off just above the surface, and pound the rest flat with a hammer.

How do you measure a wedge anchor?

Wedge Anchor diameter is measured from the outside of the threads. Wedge Anchor length is measured as the entire length of the bolt. Drill a hole in the concrete at least 1/2″ deeper than the desired embedment depth. Thoroughly clean the hole of all debris.

Should a drill bit be the same size as a screw?

The drill bit should be the same size as the shaft of the screw without accounting for the threads. To do this, simply line up a screw side by side with the drill bit. If they’re the same size, then you’re good to go. You can also look for the measurements labeled on most bits and screws.

What size drill bit do you need for a 3/8 wedge anchor?

The correct drill bit size for a 3/8″ wedge anchor is 3/8″. In this case, the bit size is the exact same as the anchoring diameter.

How do you match a drill bit to an anchor?

To get the right-size hole, measure the shank of the drill bit against the front of the anchor — its diameter should be the same size or 1/16 inch more than that to make the opening for the screw. If the diameter of the anchor is displayed on the packaging, drill the hole with a bit of the same diameter.

Can you use a lag screw in concrete?

The short answer is Yes! You can install a Lag Screw into concrete. … Lag shields are concrete anchors that expand near the bottom to hold the shield inside of a drilled hole. They are made specifically for the installation of lag screws into masonry materials.

Which side of the lag shield goes in first?

Lag shield anchors allow lag screws to be installed into concrete and masonry walls. After drilling a hole into the material, lag shields should be tapped into place ribbed side first until flush with the surface. The lag screw can then be installed with a wrench or socket tool.

What is the difference between a lag bolt and a lag screw?

Although these terms are used interchangeably, lags should technically be referred to as a screw and not as a bolt. A bolt is a fastener with machine thread that can accept a nut. A bolt is properly assembled and tightened by rotating the nut. … Lag screws are almost always used in wood applications.

How far apart are concrete anchors?

A rule-of-thumb in the concrete-fastener industry is that the minimum spacing should be 10 diameters from each anchor, and measured center to center. The spacing from an unsupported edge should be at least five-anchor diameters.
