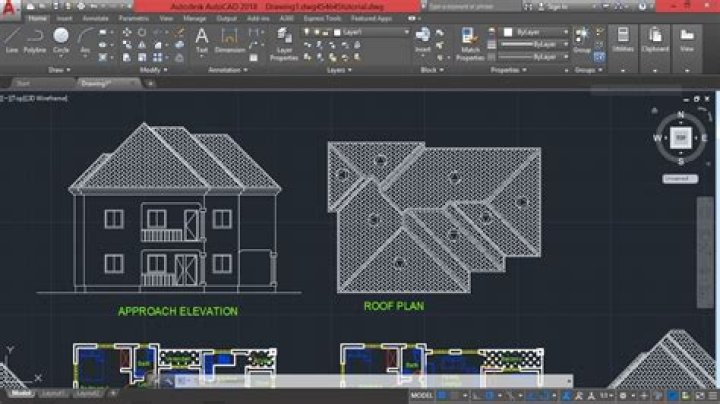

How do I draw a roof in Autocad

In View Controls, select the Top. … In the Home tab, in the Build panel, click Roof to start the roofadd command.In the Properties palette, specify the Shape and an Overhang distance.Specify points on perimeter of the external wall.Select an isometric view to show the roof in 3D.

What's the pitch of a roof?

Roof pitch (or slope) tells you how many inches the roof rises for every 12 inches in depth. An Example of a roof pitch would be a “6/12 pitch” which means that the roof rises 6 ” for every 12″ inward towards the peak (or ridge).

How do you hatch a roof in AutoCAD?

Select the roof you want to change, right-click, and click Edit Object Display. …
Click the Display Properties tab.
Select the Section display representation, and select Style Override.
If necessary, click .
Click the Hatching tab.

What is the elevation of a roof?

In the construction industry, the term ‘elevation’ refers to an orthographic projection of the exterior (or sometimes the interior) faces of a building, that is a two-dimensional drawing of the building’s façades.

How do you make a 2D roof in AutoCAD?

Draw a closed 2D polyline in the shape of the intended roof, in the location where you want to place the roof.
Open the tool palette that contains the roof tool you want to use. …
Right-click a roof tool, and click Apply Tool Properties to Linework and Walls.

What are section drawings?

A ‘section drawing’, ‘section’ or ‘sectional drawing’ shows a view of a structure as though it had been sliced in half or cut along another imaginary plane. … Plan drawings are in fact a type of section, but they cut through the building on a horizontal rather than vertical plane.

What type of drawing is a roof plan?

Typically, a roof plan is a simple 2D drawing which shows a bird’s eye view of your roof. Annotations can be made to further explain specific aspects, such as ridges and slopes, as well as the roof pitch. and are drawn to the same scale as an accompanying floor plan.

What is a 4/12 roof pitch?

A roof that rises 4 inches for every 1 foot or 12 inches of run is said to have a “4 in 12” slope. … The slope ratio represents a certain amount of vertical rise for every 12 inches of horizontal run. For example, a “4 in 12” slope can be expressed as the ratio of 4:12. A “6 in 12” slope is expressed as 6:12.

How do I figure out the angle of my roof?

The angle, or pitch, of a roof is calculated by the number of inches it rises vertically for every 12 inches it extends horizontally. For example, a roof that rises 6 inches for every 12 inches of horizontal run has a 6-in-12 pitch.

Can roofs be flat?

A flat roof is a roof which is almost level in contrast to the many types of sloped roofs. The slope of a roof is properly known as its pitch and flat roofs have up to approximately 10°. Flat roofs are an ancient form mostly used in arid climates and allow the roof space to be used as a living space or a living roof.

Article first time published on

What is a roof with 4 sloping sides?

Mansard roof is also called 4 sloping side roof. That is because it has 4 sloping sides. It is similar to Gambrel roof in that sense. … Because of the shape of these sloping roof types, upper levels of the house will only be visible from a distance not from close.

What is roof hatch?

BILCO roof hatches provide safe and convenient access to roof areas by means of an interior ladder, ship stair or service stair. A variety of special sizes are also available to provide an accessible way to install or remove large pieces of equipment from a building.

How do I turn off hatching in Revit?

Try going into the desired elevation, select everything and right click. From the shortcut menu select OVERRIDE GRAPHICS IN VIEW and choose ELEMENT from the flyout. In the following dialog you will see an option for surface patterns and you will see a master check box to turn the visibility on/off.

What is roof plan in architectural drawing?

A scaled drawing, or diagram, of a planned roof development, is called a roof plan. … A roof plan often includes the dimensions of the roof, which includes the design of the roof, its shape and size, and the material placement — vents, drains, valleys, and slopes, etc.
