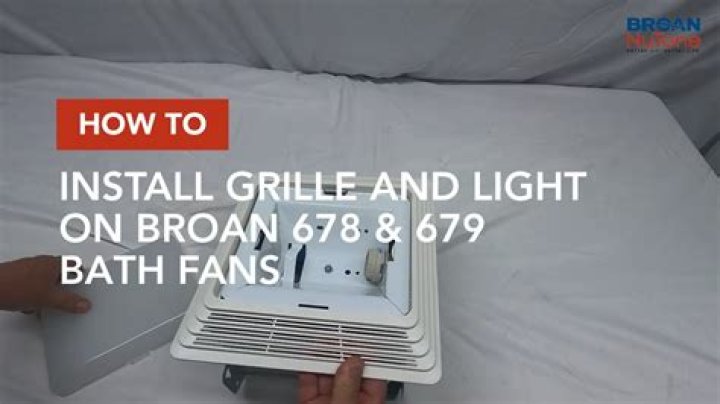

How do I install Broan grill

Now that we’ve covered the LED light + exhaust fan specs, it’s time for the main event: replacing the old exhaust fan cover! It only take four easy steps and about 5 minutes of your time to install your new exhaust fan cover.

Can you just replace a bathroom exhaust fan cover?

Can bathroom exhaust fan get clogged?

ightly. If it doesn’t, there might be a blockage in the duct connecting to the exhaust fan. Remove the grille and try to find and clear the clog with a brush, preferably one that’s specifically for cleaning ducts.

How do you vent a bathroom with no outside access?

Install a recirculating fan in a half-bath. This type of bath fan doesn’t exhaust air to the exterior. …
Reduce noise with an inline fan. …
Vent under the floor to get outside. …
Build a soffit to hide ductwork. …
Install commercial ductwork.

Can I add a light to my bathroom fan?

Installing a fan/light combination as a replacement for an existing light fixture is an easy project. The wiring is already in place, so the project requires no special knowledge of electrical wiring. For this installation, the light switch will operate both the fan and the light at the same time.

How does a ventless bathroom fan work?

Ductless fans work by expelling air out of the home (through open windows if necessary) so that no condensation forms on surfaces in the room. The blade speed in ductless models is significantly lower than in duct fans. This helps draw in more air into the fan.

How do you remove a round fan cover?

How Do You Remove a Bathroom Vent Cover? To remove the cover, gently pull down on the cover to expose the fan; then squeeze the metal mounting wires on either side and slide them out of their slots. This will allow the cover to be completely removed from the fan housing.

Does a bathroom exhaust fan have to be vented to the outside?

Bathroom fan installation requires outside ventilation. If the fan isn’t accessible through an attic, you’ll need to vent through a sidewall of your house. … Letting the fan exhaust into an open attic will cause moisture buildup on the underside of the roof. Avoid venting through a soffit vent or ridge vent.

What is the code for bathroom ventilation?

Residential code: R303 Ventilation air from the space shall be exhausted directly to the outside. Mechanical code: M1501. 1 Outdoor discharge. The air removed by every mechanical exhaust system shall be discharged to the outdoors.

Why are bathroom fans so weak?

The Dampers Are Stuck There are two dampers for a bath fan, one at the housing and another where the duct exits the building. If they don’t open easily or open only partly, airflow will be weak. Try moving the exterior damper by hand to make sure it opens easily. Clean away any debris that might hinder movement.

Article first time published on

When should I turn on my bathroom fan?

“You should turn the fan on each time you run water in the bathroom and leave it running for about 20 minutes after you open the [bathroom] door,” says Bayne. The most important time to do this is after you shower. If you’re continually forgetting to turn it off, install a fan timer.

How do I wire a light and fan to one switch?

Connect the green/bare copper wires together.
Connect white wires together.
Connect black wires together.
Connect the lighting wire, typically blue, to the black fan wire and the black ceiling wire.
Tuck the wires back into the box.

Can bathroom exhaust fan be on same circuit as lights?

In general, residential exhaust fans require very little power and combining with lights should not be a problem. This is acceptable. Many bathroom fans include lights with the intention of both being wired to one switch on the same circuit. They can also be wired separately to different switches.

What kind of wire do I use for a bathroom fan?

Most bathroom ventilation fans use a 15-amp circuit breaker and 14-gauge wiring. Due to the increased power drawn, fans with heaters usually require a 20-amp circuit breaker and 12-gauge wiring. Use the manufacturer’s electrical specifications to confirm this.

Do I need an isolator for a bathroom fan?

Answer: The provision of isolating devices for extract fans in bathrooms or shower rooms is not specifically addressed in BS 7671. A fan isolator mounted adjacent to the fan would fulfill the requirement for switching off for mechanical maintenance. … The switch need not necessarily interrupt the neutral conductor.

Is it OK to vent a bathroom fan into the attic?

No, you cannot vent your bathroom exhaust fan into the attic. You should never exhaust the bathroom fan directly into the attic. … It is almost always required by code that the exhaust fans vent on the outside of the home with no air leaks into the interior of the home.
