How do I test my NPN proximity sensor

To test the polarity of an NPN sensor, remove the load wire from the input module. With the voltmeter measuring the open load wire observe the voltage as the sensor energizes.

How do you test a NPN sensor?

To test the polarity of an NPN sensor, remove the load wire from the input module. With the voltmeter measuring the open load wire observe the voltage as the sensor energizes.

How do you troubleshoot a proximity sensor?

Make sure that the proximity sensor cable is not damaged, and that it is separated from high-power spindle/axis/pump cables. Make sure that the connectors and pins for the proximity sensors are not contaminated. Make sure the pins have not backed out of the connector. Check for contamination on the proximity sensor.

How do I know if my proximity sensor is working?

Or you can just make a phone call, then hold your hand on the screen – that should turn the screen black if the sensor is working. Taking your hand away should show the screen again. If that’s not happening, your proximity detector is probably going (or gone).

How do I know if my proximity sensor is NPN or PNP?

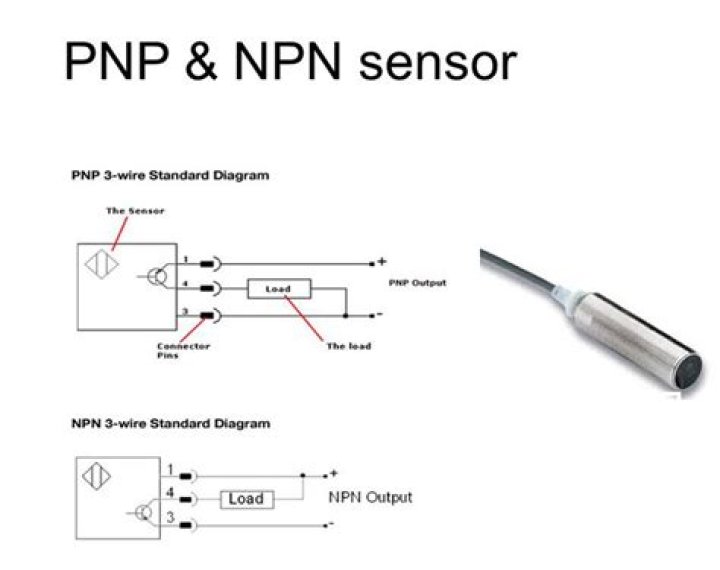

Power on the system and carefully measure the voltage between 0V and the black wire. If there is a voltage of +24V when the sensor is active, it is a PNP-type sensor. If there is a 0V reading on the multimeter when the sensor is active, it is most likely an NPN sensor.

How do I turn on the proximity sensor?

From your Home screen, tap the Application screen icon. Find and tap Settings → About Phone → Diagnostics. Tap Test device → Ear proximity, and follow the on-screen instructions.

How do you test an inductive proximity sensor with a multimeter?

1. Disconnect the wires for the sensor at its power source (Point A in the diagram).
2. Plug the black probe into the COM (common) port on your multimeter. …
3. Set your multimeter to Continuity – the symbol looks a bit like this: •))).

How do you test a sensor?

You can play around with your phone to check if individual sensors are working; for example tilting your phone to test the gyroscope or move your palm across the screen to test the proximity sensor etc. If the CPU-Z readings change in response to your actions, then the sensors are fine and working.

How do I enable proximity sensor in Realme?

Go to settings>> additional settings>> developer mode scroll down >> quick developer times>> turn on sensor off tiles. Then go to control centre >>tap on edit and drag the sensor off time to main center and then tap to turn it on.

How do you test a PIR sensor?

Once you have the breadboard wired up, insert batteries and wait 30-60 seconds for the PIR to ‘stabilize’. During that time the LED may blink a little. Wait until the LED is off and then move around in front of it, waving a hand, etc, to see the LED light up!
