How do I vacuum my air conditioner pump

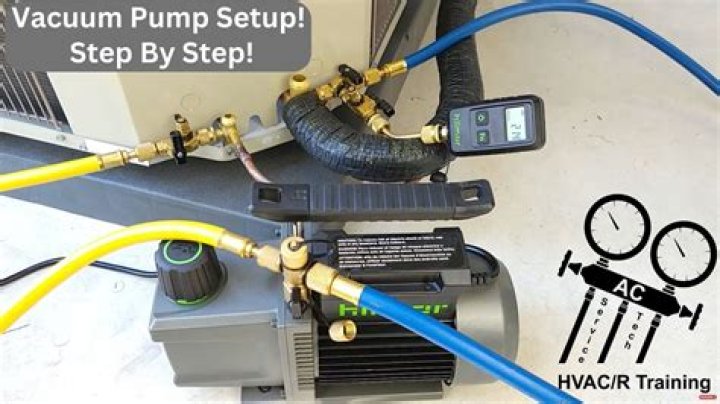

Turn off the air conditioning in the car and switch off the car engine.Hook up the refrigerant gauge manifold set. … Screw the AC vacuum pump to the center valve of the refrigerant gauge manifold set. … Close the valve that goes to the gauge.

How can I vacuum my AC without a vacuum pump?

1. Step 1: Depress the AC system’s access valves. …
2. Step 2: Charge the low side valve. …
3. Step 3: Disconnect pressure from the high side valve. …
4. Step 4: Repeat Steps 2 and 3. …
5. Step 5: Charge With Refrigerant. …
6. Does vacuuming your AC system remove oil?

Can you pull a vacuum on just the low side?

Yes. You can pull a vacuum from one port. The AC system is a continuous loop. There is a part known as an orifice tube which restricts the flow of refrigerant, but doesn’t stop it.

What happens if you don't vacuum your AC system?

If you do not evacuate the system to remove air and moisture, you will reduce heat transfer capability through the refrigerant because air which is 78% nitrogen is not condensable in automobile systems. Moisture in an A/C only induces corrosion and more problems.

How can I vacuum my AC system without a pump?

1. Depressing the Access Valve. …
2. Charging the Low-Pressure Side. …
3. Repeat Step One (Depress the High-Pressure Side Access Valve) …
4. Repeat the 2nd and 3rd Steps. …
5. Charge With Refrigerant.

What is the purpose of pulling a vacuum on AC system?

Pulling vacuum is the process of evacuating a refrigeration or air conditioning system (including refrigerant lines, coils, etc) of all unwanted contaminants and particulate primarily dirt, water and air.

How do you vacuum a vacuum pump?

The principle behind positive displacement vacuum pump is create a vacuum by expanding the volume of a container. For example in a manual water pump, a mechanism expands a small sealed cavity to create a deep vacuum. Because of the pressure, some fluid from the chamber is pushed into the pump’s small cavity.

How long should AC system hold vacuum?

How much vacuum should an AC system hold? A vacuum of about 500 microns or 29.92 hg gauge pressure is needed for removing any moisture that may have entered the system along with the non-condensable gases while it was open. The automotive A/C system must hold the vacuum of 29.92 in Hg for at least 1 minute.

Why do you use a vacuum pump on an air conditioning unit?

Air conditioning vacuum pump is used to remove unwanted air and water vapor from the air conditioning system when it is under service. … The evacuation process is the next step in which the vacuum pump is used to remove the air and moisture from the refrigerant system.

Does vacuuming an AC system remove the oil?

there will remain a certain amount in low spots of your condenser, drier and evaporator. Pulling a Vacuum on the system (especially for just 30 minutes) will not remove much (if any) of that oil…and only then…if it had absorbed moisture.

Article first time published on

Can I leave a vacuum pump running overnight?

You can leave your pump running as long as you think is needed, check now and then if the pump is not getting to hot and check oil level… in the mould. Now you could just leave it like that and let it cure overnight…but you bug has to be fully closed without leaks.

Does a vacuum pump remove oil from AC system?

The pump shouldn’t remove or vaporize the PAG oil. The pump should remove air in the system, degas the PAG oil, and vaporize any residual volatiles (mostly water) from the system. Rotary vane pumps typically release a small mist of pump oil from the exhaust port when it’s pumping against atmospheric pressure.

What side does the AC vacuum go on?

It is crucial to always pull the vacuum from both high and low-side service ports. Then remove the Schrader cores from the service ports during evacuation by using an evacuation service tool core remover. This tool has a valve on it that can be used during the vacuum hold test.

Do you vacuum high low side?

After replacing a failed component the system is “flat” you are now ready to vacuum the system down and recharge it. The high side port should be on the line between the condenser and the expansion valve or orifice tube while the low side port will be on the return line between the evaporator (firewall) and compressor.

How do you vacuum a split system?

Steps To Vacuum Down a Mini Split (Usually the only port on the unit.) Hook Center Yellow Hose to the Vacuum Pump. Turn On the vacuum pump and open the valve on the HVAC Gauges Low Pressure Side (Blue). Let the pump run until it goes into a Vacuum, negative pressure.

How does vacuum pump works?

Vacuum pumps essentially move gas molecules from one region to the next to create a vacuum by changing high and low-pressure states. As molecules are removed from the vacuum space, it becomes exponentially harder to remove additional ones, thus increasing the vacuum power required.

How do I choose a vacuum pump capacity?

The capacity for vacuum pumps is specified in a couple of different ways, depending on the type of vacuum pump and the manufacturer. It is important to know the ACFM rating of the pump, which expresses the “actual cubic feet per minute” inlet capacity at a specific vacuum level.

How low can a vacuum pump pull?

A high quality vacuum pump will be able to take you down to 200-500 microns. With the system almost completely free from water vapor, you are ready to put the refrigerant back in the system. A thorough approach to evacuation ensures longer equipment life and reduced risk of problems.

How much vacuum can a vacuum pump pull?

Because the maximum theoretical vacuum at sea level is 29.92 in. -Hg, actual pump capabilities are based on and compared to this theoretical value. Depending on pump design, the vacuum limit ranges from 28 to 29.5 in. -Hg or about 93% or 98% of the maximum theoretical value.

How do you know if your AC compressor is low on oil?

If the problem is due to an oil loss, you may see the following telltale signs inside the compressor: All rods and bearings will be worn or scored. The crankshaft will be uniformly scored. Rods may be broken due to the compressor seizing up.

How often should you change your vacuum pump oil?

When the oil observed in the sight glass is contaminated, it turns brown and begins to foam. After a long period of work, it is absolutely necessary to replace it with a new one. Even without the above mentioned symptoms, it is recommended to change the oil after every 100 hours of vacuum pump operation.

Why does my vacuum pump smoke?

In many cases, the smoke you see is actually mechanical pump oil vapor. … But, oil vapor or oil mist is a natural by-product of creating vacuum in an oil sealed mechanical pump. There is nothing to worry when you notice this kind of vapor because the pump emits it while pumping on a specific chamber from the atmosphere.

How long does a vacuum pump last?

The vacuum pump is designed to last a lifetime, but usually this will not happen due to the harsh conditions in which it has to operate. There are a variety of issues that can lead to the vacuum pump not working properly, which is why you will need to keep an eye peeled for warning signs.

What happens if you put too much oil in your AC compressor?

If you add too much oil to the system, it may pool in various places of the system and can coat the inner walls of the evaporator and condenser coils. This will diminish their ability to absorb or dissipate heat, thereby bringing down the overall cooling performance.

What oil goes in a C vacuum pump?

The oil used in a vacuum pump is usually mineral oil that has been distilled through a process to reduce its Vapor Pressure. The vacuum pumps have an ultimate vacuum of 0.010 Torr.

Where do I put the oil in my AC compressor?

Pour the oil very slowly into the intake port or low side of the compressor. This is where the large line entered. While pouring in the refrigerant oil, rotate the hub and clutch slowly to let the oil enter the compressor.
