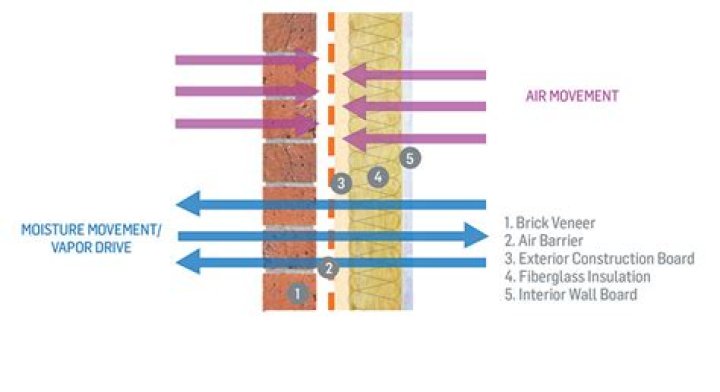

How do vapor barriers work

A vapor barrier reduces the movement of water vapor by diffusion. Holes in the vapor barrier that allow humid air through may allow a lot more water vapor into an assembly than the vapor barrier is stopping. Because of this, air sealing is more important than vapor retarders.

Where should vapor barrier be placed?

Vapor barriers are usually best installed on the side of the wall that experiences the hotter temperature and moister conditions: the inner surface in colder climates and the outer surface in hot, humid climates.

How long do vapor barriers last?

While thinner plastic or regrind may be okay for short-term use, only reinforced virgin poly should be used for long-term applications like crawlspace vapor barriers. Properly installed virgin reinforced poly should last 20 years or more in a crawlspace.

Is a vapor barrier really necessary?

Vapor barriers protect against mold and rot inside structures by preventing condensation and moisture from building up and damaging building materials. If a home is being built in a very humid climate, a vapor barrier can be an essential source of protection from problems caused by excess moisture.

Does vapor barrier go over insulation?

Fiberglass insulation must stay dry to be effective. Vapor barriers are sheets of plastic or other material placed on one side of insulation sheets. … In any case, the vapor barrier must point to the warm side.

Do you need Vapour barrier on interior walls?

The IRC recommends builders install a Class-I or -II vapour retarder on the interior side of homes in climate zones 5 (Cold) and north, and in the Marine 4 zone. However, if you air-condition your house in the summer, your might trap condensation in your roof or walls for part of the year.

Do I need a vapor barrier behind drywall?

Normally interior walls do not require a vapor barrier, but there are some situations where it is highly recommended. … A continuous plastic vapor barrier behind the drywall will protect the interior walls of these areas from water damage.

Is painted drywall a vapor barrier?

Class III vapor retarders are identified by the IRC as latex or enamel paint. However, research shows that standard painted drywall is commonly vapor permeable (greater than 10 perms, up to 40 perms) – a benefit during the cooling season, but a potential concern during the heating season.

What happens if I don't use vapor barrier?

If water vapor diffuses or infiltrates into the wall cavity and finds the cool surface, moisture problems can occur. Of course, you can have moisture problems here even without the exterior vapor barrier because of what Bill Rose calls the rule of material wetting.

Is Tyvek a vapor barrier?

No, DuPont™ Tyvek® is not a vapor barrier. It is made with unique material science to keep air and bulk water out while allowing moisture vapor inside walls to escape.

Article first time published on

Does vapor barrier grow mold?

Commonly installed vapor barriers often cause mold infestations. The real functional reason for most of these installations is to channel water down the inside of the wall into an evacuation system below.

Will a vapor barrier reduce humidity?

A vapor barrier blocking evaporation of ground moisture will lower the relative humidity in the crawl space and hopefully the mustiness you complain of.

How do I know if my vapor barrier is damaged?

How do I know if my Moisture Barrier is damaged? If skin looks and feels rough, dull, flaky, inflamed, red, or itchy, you may have damaged your moisture barrier (although there can be other causes for those symptoms as well.) You might even be experiencing more breakouts than usual.

Should I put a vapor barrier on my ceiling?

All attics — vented or unvented — should have an air barrier (a properly detailed airtight drywall ceiling, for example) regardless of climate. Omitting a ceiling vapor barrier by arguing that “you have to let the moisture escape” or “because the house has to breathe out the top” is actually correct, in a way.

What is the difference between a vapor barrier and a moisture barrier?

These two terms essentially refer to the same thing. Moisture barriers and vapor barriers are both building materials designed to prevent water from getting past the barrier. … No vapor barrier is capable of stopping all moisture from passing through.

Where does the vapor barrier go in an attic?

The vapor barrier is always installed facing the heated side of the wall or ceiling, because that’s where the moisture is coming from.

Is a vapor barrier required by code?

The International Residential Code (IRC) requires either a Class I or II vapor retarder on the interior side of frame walls in climate zones: 5, 6, 7, 8 and marine 4 (see climate zone map).

How thick should vapor barrier be?

Vapor barriers should be at least 6 mil in thickness to effectively cover the area and create a moisture barrier. Triangle Crawl Space Solutions uses both a 6 mil material for simple vapor barrier installation and a thicker more durable 12 mil vapor barrier material depending on the budget and needs of the home.

Does a vapor barrier prevent mold?

By installing a crawl space vapor barrier system, you will greatly reduce the moisture levels, preventing mold and foul odors from growing and forming.

Is a vapor barrier necessary behind cement board?

You should NOT place a vapor barrier BEHIND the backer board. Where, pray tell, would any such collected vapor/water go? Answer:There’s nowhere proper for such moisture to egress. The current best practice is to place waterproofing OVER the backetboard and just UNDER the tile.

Is kraft paper a vapor barrier?

Vapor barriers—sheets of plastic or kraft paper—keep water vapor out of the wall cavity, so the insulation stays dry. Not every type of insulation needs a vapor barrier. But if it does, the barrier should face inside in northern, heating climates, and outside in humid southern climates.

Is a vapor barrier necessary in a bathroom?

Protection From Moisture or Vapor A bathroom is generally a very warm place. This is because whenever warm air meets colder air, the formation of moisture is therefore guaranteed. The vapor barrier is vital as it screens the place where the moisture could definitely form.

Is a vapor barrier necessary under laminate flooring?

All laminate flooring requires an underlayment to allow the floor to float and give the locking system its strength. … You will need a moisture barrier underlayment when installing: On a cement subfloor. On any subfloor that has a chance of moisture coming up and soaking into the flooring.

Is a vapor barrier necessary under a concrete slab?

A concrete vapor barrier is any material that prevents moisture from entering a concrete slab. Vapor barriers are used because while fresh concrete is poured wet, it’s not supposed to stay that way. It needs to dry and then stay dry to avoid flooring problems. … This is why a vapor barrier under concrete is essential.

What can I use for vapor barrier in crawl space?

Use plastic sheeting to control moisture in your crawlspace. We use foil-faced rigid insulation to keep the space under the house dry. The plastic and the insulation will eliminate any moisture problems you have in the crawlspace, such as water droplets collecting on the concrete walls and pipes.

Can house wrap be used as a vapor barrier?

For example, House wrap by itself is not an air barrier, it is a vapor barrier. However, IF installed properly, which is rare, with taped seams, bottom, top edges, and no tears, it acts as an air barrier. So primarily it acts as a vapor barrier, but installed properly can do both; vapor barrier and air barrier.

Can plastic sheeting be used as a vapor barrier?

In simple terms, a vapor barrier is a material that won’t allow moisture to pass through it, such as plastic sheeting. … It’s designed to stop the moisture before it can enter the wall cavities. There are two basic types of vapor barriers used with exterior wall insulation. The most common is paper-faced insulation.

Is felt paper a moisture barrier?

A high-quality WRB is air- and moisture-resistant, permeable, and has high tear strength and UV-resistance. It should also be simple to install. House wrap and asphalt felt paper are weather-resistant barriers that strive to achieve energy-efficient, healthy, and comfortable homes or commercial buildings.

Can you encapsulate mold?

Encapsulating mold is a process in which a mold sealant is applied to a surface in order to prevent any mold there from growing or spreading. In most cases, materials that cannot be adequately cleaned of mold should be removed and replaced.

How do I prevent mold in my crawl space?

Make sure all gutters and downspouts are working correctly. …
Make sure below-ground walls are free from cracks. …
Look for any leaks around HVAC ducts, pipes and any plumbing components and fixtures.

Is mold in crawl space normal?

Molds and Fungus thrive where there is cool, moist air. That’s why your crawlspace is a breeding ground for mold. … This is a perfectly normal moisture content and one that will not support fungal growth. You can Google “moisture content of wood necessary to support fungal growth” and see for yourself.
