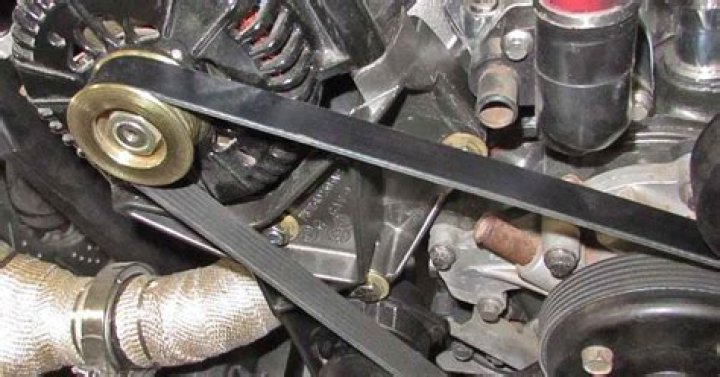

How do you align a serpentine belt

Noises that indicate your drive belt may be misaligned As the speed of the serpentine belt or drive belt increases, it will probably become nearly inaudible. A squeal, on the other hand, is a chirp that gets louder and increases in volume along with engine speed.

How do you align a pulley without a laser?

There are two ways to align pulleys: Traditional and laser. Traditional alignment methods are quick but often inaccurate. With these methods, mechanical tools such as straightedges, tape measures, wire, string, feeler gauges, spirit levels and calibrated cones are used.

What does a misaligned serpentine belt sound like?

Noises that indicate your drive belt may be misaligned A chirp is a repetitive, high-pitched noise that doesn’t last long, and is usually worse when the engine is idling. … A squeal, on the other hand, is a chirp that gets louder and increases in volume along with engine speed.

Can a serpentine belt be adjusted?

Most serpentine belts have an auto-tensioner that automatically keeps the proper tension on the belt. However, some belts have an adjustment screw that applies tension to the belt. … To correct the problem, tighten your belt.

What are the two most common methods for aligning sheaves?

There are several sheave alignment methods, the most common of which is the string and straightedge method, wherein these must touch each sheave at two diametrically opposite positions simultaneously (totaling four contact points). The sheaves should be rotated half a turn and checked again.

How do you stop a serpentine belt from slipping?

You should apply belt dressing to your serpentine belt every month or every 3,000 miles to prolong its life and to prevent it from slipping. Sometimes, depending on the cause of the squeak. Belt dressing is intended as a tool to help you maintain your belts.

How do you adjust the belt in order to acquire the optimum tension?

The first step is to tighten the drive belt adjuster lock. The bolt should be tight, but take care not to overtorque it. Next, tighten the pivot point bolt. This will tighten the belt a bit more too.

Can you adjust the tension on a belt tensioner?

Locate the adjuster bolt on the belt tensioner used to secure the serpentine belt, and adjust the tension by loosening or tightening the adjuster bolt with a racthet and socket while you simultaneously move the belt back and forth gently to find the proper tension.

Can a bad serpentine belt cause rough idle?

Poor Driving Experience So if you have searched for answers to the question, can a bad serpentine belt cause rough idle? The answer is yes.

How tight should tensioner pulley be?

The required measure of tension in the serpentine belt is that it should not deflect more than ½ inch when twisted either way from the middle. If twisted more, the belt is loose, and if twisted less, the belt is too tight.

Article first time published on

What causes V belts to twist?

Cause: Pulley misalignment is a common cause of premature belt failure. Misalignment forces the belt to kink or twist while running, causing premature wear. Solution: Replace the belt and make sure to realign the pulleys. Also check that the pulleys, pulley brackets and shafts are not bent or broken.

How do you calibrate a belt tension gauge?

Regularly check gauge calibration using a free weight. Suspend a known weight on a single-strand belt, and attach the gauge. The belt tension gauge dial should read the same as the weight; if not, return to OTC for calibration. Regularly check gauge calibration using a free weight.

What can happen if the belt tension in a belt drive system is adjusted to be too tight?

If a belt is too tight in a system, it can add stress to your bearings. The added stress to bearings can result into over amperage of your motor and potential motor failure.

Why is my belt tensioner shaking?

Causes of Belt Tensioner Wobbling In general, belt tensioners tend to get noisy when they fail. If your belt tensioner is chirping or makes other noises, it is often an indication that the part is old and needs to be replaced. You can even remove the belt, spin each pulley, and listen for rumbling or other noises.

Should you replace tensioner with serpentine belt?

There is no recommended timeframe in which to replace your tensioner, especially as the belt itself usually needs replacing before the tensioner does. However, you should inspect your tensioner each time you service your car to monitor its condition and replace it if necessary.

Can serpentine belt affect acceleration?

Typically a damaged belt tensioner will not impact vehicle performance. It would cause the serpentine or drive belt to wear prematurely or to squeak – but not cause the acceleration issue.

What happens if you put a serpentine belt on wrong?

In some instances it may be possible to install a serpentine belt the wrong way. If this happens, one or more pulleys will rotate in the WRONG direction, affecting the operation of the alternator, water pump, A/C compressor or power steering pump. This can cause major problems.
