How do you change a pulley on a riding lawn mower

If a pulley is badly worn, it can cause a bad vibration from the cutting deck on your lawn tractor. To check all your pulleys, start by removing the mower deck. Next, remove the mandrel covers and belt, then check all the pulleys for play and roughness when spinning.

How do I know if my lawn mower pulley is bad?

If a pulley is badly worn, it can cause a bad vibration from the cutting deck on your lawn tractor. To check all your pulleys, start by removing the mower deck. Next, remove the mandrel covers and belt, then check all the pulleys for play and roughness when spinning.

How do you remove a pulley from a deck?

1. Remove the mower deck from the lawn tractor. …
2. Remove the bolt from the center of the pulley with a wrench. …
3. Place the three jaws of the spindle puller under the pulley and center the threaded screw directly in the center of the pulley so it rests on the spindle shaft.

How do you remove the pulley on a lawn mower deck?

Spray a liberal amount of penetrating oil onto the front and back sides of the pulley hub until they are thoroughly soaked. Spray the pulley retaining bolt and pulley shaft with the oil. Allow about 30 minutes to two hours for the penetrating oil to loosen the rusted pulley and other parts.

How long does it take to replace an idler pulley?

If you are doing the job at home, give yourself about four hours to change all the parts. You will need the following tools and parts: Replacement idler pulley.

What noise does a bad pulley make?

Squealing. When the engine is idling, a bad pulley may make a squealing sound. This is due to the bearings in the pulley going bad. The bearings may also make various other sounds such as clattering or even a rumbling sound, making the vehicle sound as if there was much more wrong than a bad pulley.

What happens when a pulley goes bad?

A damaged pulley can cause the drive or serpentine belt to dislodge. If that happens, all components that derive power from that belt will stop functioning. On most vehicles, these parts include the alternator, water pump, power steering, air conditioning system, and different exhaust components.

How do you remove the pulley on a John Deere mower spindle?

Remove the large nut on top of one of the spindles. Turn on the air compressor and attach the air wrench to the compressor. Holding the spindle with one hand, place the air wrench on top of the nut, set the air wrench to the reverse setting and pull on the trigger. Once the nut is removed, slide the pulley off.

How do you remove a pulley from a keyed shaft?

To tighten the screw at the end of the gear puller, use the sockets wrench. Continue until the pulley is free. You can try to loosen the pulley by hitting the exposed end with a hammer.

How much does it cost to change a pulley?

The cost to replace the idler pulley of your driver belt will usually be somewhere between $80 and $200. The cost for the new part should only be anywhere from $40 to $90, while the cost of the labor will be anywhere from $40 to $110. These prices do not include added taxes and fees charged by the auto shop.

Article first time published on

How much does it cost to get a pulley replace?

It will cost between $125 and $380 to have your pulley replaced. The labor should cost between $45 and $155 and the parts should cost between $85 and $225.

What is an idler pulley on a lawn mower?

Popular Craftsman Lawn Mower Pulleys 910 inch offset Ground drive fixed idler pulley helps apply tension to the drive belt, allowing the belt to turn.

What does a worn idler pulley sound like?

When the grooves on the belts are not holding on to the pulleys, you will hear a noise coming from the engine. They will make a rattling sound if the bearings are worn out. They will remove the belt from the pulley and try to move it on their own. …

How do you know if you need a new idler pulley?

Visual Clues of a Worn Idler Pulley Such wear decreases tension that can cause significant belt slippage. If the pulley or bearing is noticeably damaged, cracking, breaking, seizing, or otherwise coming apart, it is an indication that it requires prompt replacement.

How do you remove a crank pulley without a puller?

There is a way to do it. You put a wrench on the pulley bolt and block the other end against the floor or the frame. Then you use the starter motor to turn the engine (DO NOT START IT, JUST TURN IT) for at most one or two revolutions of the crank. Just enough to break the bolt loose.

How do you put a pulley on a motor shaft?

To attach a pulley, a mechanic tightens mounting screws, which draw the tapered surfaces of the bushing and pulley hub together. Forcing the mating tapers together creates a wedging action between the bushing and pulley, and between the bushing and drive shaft.

What does the idler pulley do?

The idler pulley is a common part that’s found on the majority of the vehicles on the road. Its primary function is to provide tension and guide the engine drive belt. These belts wrap around the various parts of the engine such as the power steering pump, alternator, water pump etc…

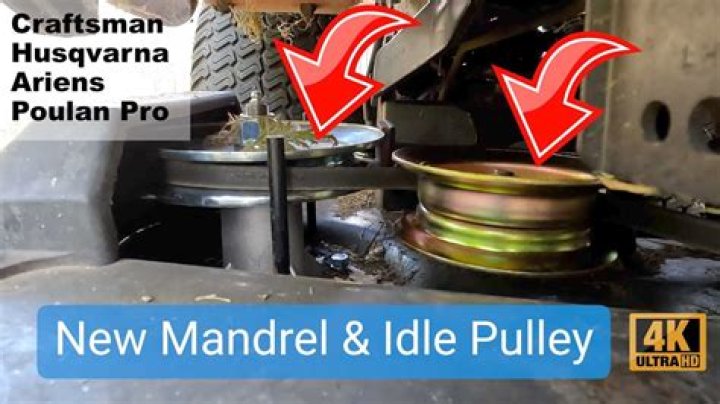

What is a mandrel pulley?

The Mandrel Pulley is a pulley. The Mandrel Pulley uses belts to transfer the energy from the Motor to the blades. If the Pulley is bent or damaged it will affect the performance of the engine.

What is a mandrel on a riding mower?

The mandrel assembly attaches to the deck and spins the blade. The bearings in the mandrel assembly wear down through normal use. An unbalanced blade speeds the wear on the bearings, as does hitting rocks while mowing. The mandrel assembly in this repair guide includes the blade shaft and bearings.
