How do you check the amp draw on a refrigerator compressor

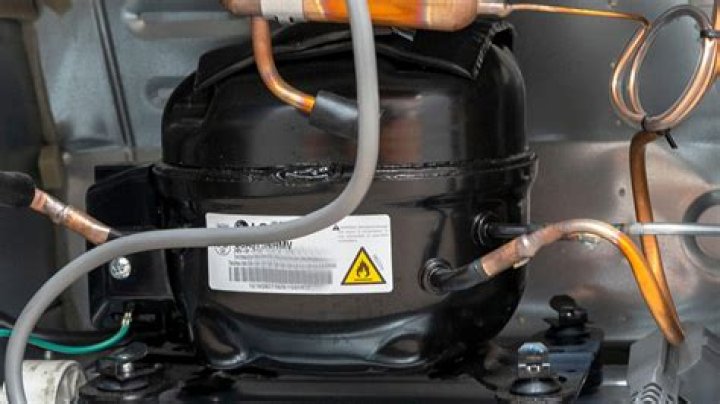

Pull the refrigerator away from the wall and locate the compressor with a flashlight. … Divide that number by 120 volts, which is the voltage of your power supply, to get the current that the refrigerator draws in amperes.

How many amps does a refrigerator circuit draw?

Most refrigerators run between 3 to 6 amps, with that said, a refrigerator can spike at peak usage up to 15 amps. It’s best to take into consideration worst case scenarios. You should have refrigerators and freezers installed on a 15-20 amp dedicated 120 volt circuit.

How do you tell if the compressor is bad on a refrigerator?

You’ll know that your compressor is bad when it starts making abnormal noises, the compressor overheats or not providing proper cooling, or when the fridge compressor clicks on and off too frequently.

How many amps should a freezer compressor draw?

So how many Amps does a freezer use? A medium-sized freezer will use between 0.8 Amps and 1.5 Amps of current. This would be the current draw of the compressor while it’s running. Each time the compressor starts, it has a startup draw of between 2 to 3 times its running amperage.

How do I know if refrigerator compressor is working?

The best way to tell if something has gone wrong with the compressor is to pull the fridge slightly out from the wall and listen closely. If the motor is running with a slight humming sound but the temperature is above what its normal range should be, then it’s likely there could be a problem with the compressor.

What would cause my refrigerator to trip the GFCI?

This is usually caused by multiple appliances being plugged into the same circuit. To avoid this happening, make sure that your refrigerator has a dedicated circuit, which you can do by plugging your refrigerator into an alternative power outlet and seeing if it still trips.

Should a refrigerator be on a 20 amp circuit?

Refrigerator Circuit A modern refrigerator requires a dedicated 20-amp circuit. You may currently have a smaller refrigerator plugged into a general lighting circuit, but during any major remodeling, install a dedicated circuit (120/125-volts) for the refrigerator.

What causes low amp draw on a compressor?

Low Amp Draw — Low amp draw is caused by the reduced refrigerant flow rate through the compressor. During the compression stroke, some of the refrigerant will leak through the suction valve and back into the suction line, which reduces the refrigerant flow.

How many amps does a Dometic fridge use?

The fridge takes 5 amps. The panels produce up to 15 amps in total.

What causes a compressor to draw high amps?

The compressor could be pulling hi amps due to wear and age, low power supply or perhaps a weak start run capacitor. Check the voltage supply, inspect the capacitor with a multi meter and weak capacitors will sometimes look swollen or mishapen.

Article first time published on

How many amps does a 20 cubic foot refrigerator draw?

A 20 cubic foot freezer will typically use less than 4 to 5 amps when running. Upon start up, the a 20 cubic foot freezer will use around 10 to 15 amps.

How do I check my refrigerator refrigerant level?

To tell if your refrigerator needs more Freon, simply unplug the refrigerator, turn off the temperature control and place your ear on the side of the unit. A hissing or gurgling sound indicates that Freon is present. However if you hear nothing it’s likely that your fridge may be low on Freon.

What happens when a fridge compressor fails?

A refrigerator’s compressor is the heart of its cooling system, but what exactly happens when a compressor is going out in a refrigerator? … When one element of this system fails or operates at a lower efficiency, the compressor works harder to make up for it, which wears it down quicker.

What does a bad compressor sound like?

Loud noises when the compressor is running A worn bearing will produce a high pitched squealing or grinding sound, while a seized bearing will produce a grinding noise or a noticeable belt squeal.

How do I know if my compressor relay is bad?

The Shake and Rattle Test Unplug the start relay from the compressor and give it a shake. If you can hear rattling on the inside of the start relay, then the part is bad and will have to be replaced. If it’s not rattling and appears to be in good condition, you may have a problem with the actual compressor.

Where is the low side on a refrigerator compressor?

The low side line of the system will have a larger diameter metal pipe than the high-side. The low side service port is usually located between the AC compressor and evaporator.

How do you tell if an outlet is 15 or 20 amp?

Look at your outlet. If the two slots are parallel, it is a 15 amp outlet. If one slot is ‘T’ shaped and the other is straight, it is a 20 amp outlet that will also accept 15 amp plugs. If the two slots are perpendicular the outlet is 20 amp only.

Can you plug refrigerator into regular outlet?

Refrigerators don’t need special outlets. They can be plugged into a standard 110-120 volt outlet so long as the socket is three-pronged. However, it’s best if your refrigerator is on its own dedicated circuit. … This will ensure that your refrigerator gets the power it needs to run properly.

How do I stop my refrigerator from tripping the GFCI?

If you want to keep the fridge on a GFCI outlet, you can try replacing the breaker in the box with a GFCI breaker. Also, if you’re dealing with a dedicated circuit that just operates the refrigerator in the kitchen, you can simply remove the GFCI outlet and replace with a standard outlet.

Should a refrigerator be plugged into a GFCI?

A. That “protector outlet” you’re referring to is a GFCI, or “Ground Fault Circuit Interrupter” receptacle, and GFCI’s are required by building code in garages, kitchens, bathrooms, and on the exterior of new homes. … So freezers and refrigerators should never be plugged into GFCI’s.

How many amps does a 3-way fridge draw?

Based on 150W, your fridge will draw a constant 12.5amps; there is no thermostat control on 12v. Unlike new 12v only fridges which use compressors and use as little as 2amps, the 3-way fridges use heater elements – use lots of amps.

How many amps does a 12V fridge draw?

However, most will consume in between 1 amp and 6 amps (with 2.5 amps being fairly average) an hour when running. However, a fridge won’t usually run 100% of the time, so it only pulls that current when the compressor comes on.

How many amps does a 12 Volt RV refrigerator draw?

LoadWattsAmps @12V12V Outlet, Socket120-1301012V Outlet, USB252.1AC/DC RV Fridge50-1804-13.5AC/DC Fridge/Freezer, Portable8-300.7-2.3

Can a bad capacitor cause high amp draw?

The overloading could be a mechanical problem, like worn bearings, worn rods, etc. If we were looking at a single-phase compressor, the high amperage could be caused by a bad run capacitor.

How do I know how many amps my compressor is?

According to Underwriters Laboratories, divide the MCC by 1.56 to determine the Rated load Amperage (RLA). Often, compressor manufacturers will divide the MCC by 1.44 to determine the RLA of their compressors to meet certain other protection specifications. Compressor Amperage Data.

Will low refrigerant cause high pressure?

Condenser subcooling is a good indicator of how much refrigerant charge is in the system because low condenser subcooling can mean a low charge. … The excess refrigerant will accumulate in the condenser, causing high subcooling and high head pressures.

What happens if the amps are too high?

A higher voltage than a device is designed for will most likely blow up some components, but amperage is derived from how much current is actually drawn, based on the device’s resistance, so having “too much” is not a problem and will do no harm.

Should you always add a filter drier when changing a compressor?

Do not allow the new compressor to operate with a contaminated refrigerant. In addition, always replace the liquid line filter/drier during the repair. This helps to safeguard the system from circulating unwanted containments that may have been left in the system.

How many amps does a 18 cu ft refrigerator use?

The power requirements on all models will vary from manufacturer to manufacture, so it is best to examine the specification tag on the rear to get the exact details. On average, an 18-cubit foot fridge will require 115-volts and 15-amps of power.

How many watts does a refrigerator draw?

The average home refrigerator uses 350-780 watts. Refrigerator power usage depends on different factors, such as what kind of fridge you own, its size and age, the kitchen’s ambient temperature, the type of refrigerator, and where you place it.

How many watts does a 18 cubic foot refrigerator use?

Power Consumption Of 18 Cubic-Foot To 19 Cubic-Foot Refrigerators. The power consumption of 18 cubic-foot refrigerators (up to 19 cubic feet included in this section) ranges from 404 kWh to 553 kWh per year.
