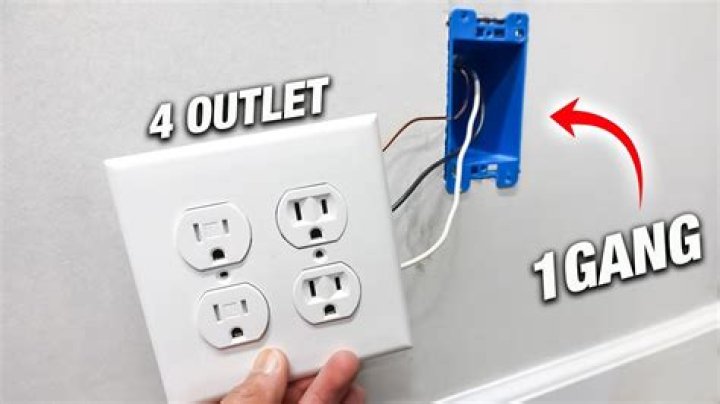

How do you install a remodel outlet box

Answer Not Found

What is the difference between old work and new work electrical boxes?

New work boxes, designed to be installed just after the wall is framed but before the surfaces are finished with drywall. They attach to studs. Old work (also called retrofit) boxes, designed to be installed after the walls are finished and are used during remodeling projects. They attach to drywall or plaster.

How do I install an outlet without opening a wall?

With surface wiring you can add outlets, switches and lights wherever you want easily and quickly, without tearing open a wall. When you paint the channels the wall color, they become almost invisible. You can finally get that outlet exactly where you need it.

Should ceiling electrical box be flush with drywall?

When you install an electrical box, make sure it is flush with the surface of this drywall strip; this will ensure the boxes are at the proper depth when the walls are finished.

Can you add an outlet to a wall?

You can add a new outlet quickly and easily without tearing open a wall, if you already have an electrical outlet in the other side of the wall. No extra holes. No messy patching and repainting.

What is AJ box?

An electrical junction box (also known as a “jbox”) is an enclosure housing electrical connections. Junction boxes protect the electrical connections from the weather, as well as prevent people from accidental electric shocks.

Does an outlet have to be attached to a stud?

Specialized hardware does exist to allow putting an electrical outlet or switch absolutely anywhere without reference to a stud. … All these items are generally referred to as ReWork boxes — boxes to be installed after the initial construction has passed.

What is the electrical box outside called?

This piece of equipment is known as the electrical panel, breaker box, fuse box, or service panel.

How deep is an outlet box?

Single light fixture switches and outlet receptacles typically fit into standard rectangular boxes, also known as “single-gang” or “one-gang” boxes. They are generally 2 x 3 inches in size, with depths ranging from 1 1/2 inches to 3 1/2 inches.

How far out should an electrical box be?

Receptacle boxes typically sit 12 inches up from the floor.

Article first time published on

How far can an electrical box be recessed?

According to Article 314.20 of the National Electrical Code, electrical boxes that are installed in walls or ceilings with surface materials consisting of “concrete, tile, gypsum, plaster, or other non-combustible material” must be positioned such that the forward (outer) edge of the box is recessed no more than one- …

How close to a sink can an outlet be?

Every bathroom must have at least one electrical outlet. It must be a GFCI, and it must be within 3 feet of the edge of the sink. Either behind or beside the sink is acceptable — across from the sink on an opposite wall is not. If the bathroom has two sinks, each must have an electrical receptacle within 3 feet.

What is a recessed outlet?

Recessed outlet hardware has a faceplate that is set deeper into the wall than a regular outlet. That means it prevents plugs and connectors from protruding above the surface of the wall. It’s aesthetically better looking, and in certain applications, it can be a lifesaver.

How do I replace an electrical outlet from an existing outlet?

Turn power to the outlet OFF.
Remove the face plate.
Unscrew and pull out the old outlet.
Remove wires from the old outlet.
Attach new outlet. …
Gently push the outlet back into the box.
Screw the new outlet in place.
Attach new face plate.

What can I use if I don't have a stud finder?

Shine a flashlight at a steep angle against the wall. …
Examine the baseboard for nails or outlets. …
Measure 16 inches from the first stud you find to approximate the location of the next one. …
Drive a small nail into the wall where you believe you have found a stud.

What screws to mount electrical boxes?

They can also snap if there is any reason that the electrical box can flex. This is all due to the hard tempered nature of drywall screws. Now I use #8 or #10 pan head stainless steel screws.

What is AJ box used for?

A junction box is an enclosure that protects a connection (the junction) of two or more wires carrying electrical current. This level of protection is needed to prevent fires and to maintain solid, reliable connections that stay tight over many years.

What is the difference between a junction box and a terminal box?

Terminal box is used for specific connections, no space for future expansion or does not require expansion of connections in future. On the other hand, junction box is with minimum specific size, plenty of woking space. Future expansion can also be planned for new connections.
