How do you insulate a concrete foundation

Locate underground utilities.Excavate the foundation perimeter.Install a footing perimeter drain pipe to provide adequate exterior drainage.Install damp proofing or a waterproofing membrane on the exterior side of the foundation wall and footing.

How do you insulate an existing foundation?

1. Locate underground utilities.
2. Excavate the foundation perimeter.
3. Install a footing perimeter drain pipe to provide adequate exterior drainage.
4. Install damp proofing or a waterproofing membrane on the exterior side of the foundation wall and footing.

How do you insulate concrete footings?

Pouring a concrete slab on top of a thick layer of rigid foam is an effective way to create a super-insulated foundation. Some types of foundations can lose heat through concrete footings. Fortunately, heat loss through footings is usually minor, so it’s perfectly reasonable for most builders to ignore the issue.

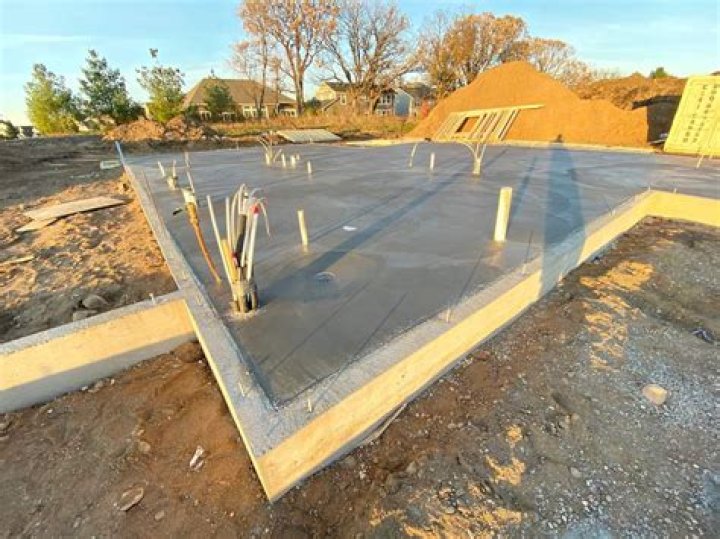

How do you insulate a concrete slab foundation?

Clean the exposed slab edge and apply damp proofing as a capillary break. Install non-moisture-sensitive rigid foam board insulation (such as extruded polystyrene [XPS] or mineral wool) along the edge of the slab of a slab-on-grade foundation to meet or exceed the insulation R-value required by code.

How do you know if your foundation is insulated?

You can look in your attic, crawl space, or rim joist and physically see if those areas are insulated. During this inspection, you can also see if the existing fiberglass or cellulose have started to shift, settle, or sag. You can also tell if these materials have come in contact with moisture.

Should I put insulation under concrete slab?

To ensure that the foundation of your home isn’t a major source of heat loss, you should install rigid insulation before pouring concrete. Doing this protects the concrete from moisture as well as keeps heat inside the home and is required by many modern building codes.

Is it worth insulating under a slab?

With a slab-on-grade, the difference is you use ‘insulation’ to insulate, rather than dirt. This effectively moves the frost line from 4 feet down to just 6 inches, problem solved. Building above grade on a slab can be a much cheaper starting place than a basement, and leads to a more comfortable and durable home.

Should foundation walls be insulated?

Walls. Basement walls should be insulated with non-water sensitive insulation that prevents interior air from contacting cold basement surfaces—the concrete structural elements and the rim joist framing. … The best insulations to use are foam based and should allow the foundation wall assembly to dry inwards.

Should I insulate the outside of my foundation?

Insulating the exterior foundation saves energy, protects basement walls from environmental damage and provides a drainage plane for water. … Also, we offer concrete slabs that are cost-effective alternatives to below-grade foundations.

Why are foundations insulated?

In addition to reducing heating costs, foundation insulation increases comfort, reduces the potential for condensation and corresponding growth of mold, and increases the livability of below-grade rooms. Foundations are either full basement, slab-on-grade, or crawlspace.

Article first time published on

How do you insulate a concrete floor before pouring?

1. Excavate the area under the slab to 12 inches below the planned level of the top of the slab. …
2. Place 4 inches of gravel in the excavation. …
3. Lay a layer of 6 mm plastic across the floor. …
4. Place 2-inch thick pieces of rigid Styrofoam insulation on top of the plastic sheeting.

How are insulated concrete forms used?

Insulating concrete forms, or ICFs, are forms used to hold fresh concrete that remain in place permanently to provide insulation for the structure they enclose. Their history dates back to after World War II, when blocks of treated wood fibers held together by cement were used in Switzerland.

How do you insulate poured concrete walls?

The next best way to insulate a concrete wall is with rigid foam boards. This is the most popular method because it’s so DIY friendly and cost effective. Rigid foam is a great insulator, R-2 to R-6 per inch on average, and water resistant. I recommend you tape and caulk all the seams once the boards are installed.

What insulation should I use for foundation?

There are two good approaches to interior basement insulation: rigid foam panels, and spray foam. Rigid foam systems consist of either expanded or extruded polystyrene foam board applied to the entire foundation wall, as shown in Figure 2-7 (BSC 2002).

How can I protect my foundation from insulation?

Cover rigid foundation insulation at least 6 inches below grade and 6 inches above grade with a protective layer, for example. Peel-and-stick composite membranes (60 mils) designed to be uncovered at grade that must be resistant to water, ice, UV radiation and mechanical damage.

Do you have to insulate a foundation?

Foundation Insulation In addition to reducing heating costs, a properly insulated foundation will keep below-grade rooms more comfortable and prevent moisture problems, insect infestation, and radon infiltration.

What kind of insulation goes under concrete slab?

A type of radiant barrier insulation for concrete slabs is called “Under Concrete Barrier.” It is usually made of a double layer of polyethylene bubbles enclosed between layers of 99 percent pure aluminum on one side and white polyethylene on the other.

How do I keep my concrete floor warm?

A layer of dense foam padding under the laminate can help warm up the floor. In slab situations, raising the subfloor off the concrete with a layer of plywood over sleeper strips before installing the surface flooring can also make it warmer on the feet.

How do you insulate under a slab foundation?

For under-slab applications, the rigid foam insulation typically should be installed over a gravel base, with a poly vapor diffusion retarder between the gravel and insulation. Additional insulation is applied along the edges of the slab, because that is a primary surface for heat loss.

What kind of insulation do you put under the concrete?

Best practice is to install a semi-horizontal piece of rigid insulation on an angle around the perimeter of the building below the topsoil. This “wing” helps maintain the heat buildup under the insulation and essentially makes the frost go around the wing, and the foundation wall is that much more protected.

How do you insulate an existing slab foundation?

1. Prepare the insulating floor. Remove dirt to fully expose the edges of the existing slab.
2. Measure the distance between the slab.
3. Install vapor barrier. …
4. Install the rigid foam. …
5. Install plywood panels. …
6. Install Threshold/Transitions. …
7. Finish the flooring material.

How do you insulate concrete?

There are two ways to handle insulating concrete floors. You can attach wood sleepers to the floor, fill the gaps with rigid-foam insulation, and then apply a subfloor and finish flooring. Or, as demonstrated here, you can cover the slab with rigid-foam insulation, add two layers of plywood, and then add the.

How do you hide insulation in foundation?

There is no perfect material for covering and protecting exterior foam on foundations. Use metal or plastic reinforcing to strengthen the cement parging on foundation foam boards. The most common approach is to apply a stucco-like “parged” finish with a surface-bonding cement.

How do you insulate the outside of a concrete block house?

The best choice for insulating the exterior face of a concrete block wall is some type of rigid foam board. Cover the concrete block wall with a good moisture barrier; some type of liquid asphalt or cement-based sealant is often used, but a tar paper or similar membrane also can be used.

How do you insulate an exterior concrete wall?

Depending on whether the concrete block walls will be covered or if the top of the wall is exposed can really change the way they are insulated. The option for insulating concrete block walls includes spray foam insulation, injection foam insulation, polystyrene beads, foam boards, and loose-fill masonry insulation.

Do concrete walls insulate?

While concrete provides a high degree of strength and durability, it offers very little natural insulation for the home. Adding insulation to your concrete walls improves your home’s energy efficiency, which often results in a more comfortable home for your family.

Do concrete walls need to be insulated?

Homes that have concrete walls in the basement or elsewhere still need insulation and weatherproofing for the owners to enjoy increased energy savings. … However your basement walls are constructed, you’ll likely want to insulate them.

How do you install foundation insulation panels?

Adhere the insulation to the foundation with foam-compatible adhesive, butting the joints tightly together. To cut the panels to size, score them with a utility knife and then snap them. Some building codes require a 2- to 6-in. gap between the panels and the siding for termite inspection.

What insulation goes under concrete floor?

Insulating a solid ground floor below the ground bearing concrete slab can be done using either PIR insulation boards or EPS insulation boards. EPS can be a cost-effective alternative to PIR for floor insulation, and the same thermal performance can be achieved with increased thickness.

Is it worth insulating a concrete floor?

Insulating a concrete floor. When building or renovating a new space, insulation should always be considered. From preventing damp to reducing heat loss and aiding with noise dampening, below-grade insulation is always important.

How do you insulate a concrete floor?

1. 6 Step Process to Insulating Your Concrete Floor. …
2. Step 1: Compacting your hard flooring. …
3. Step 2: Sand blinding. …
4. Step 3: Laying the damp-proof membrane. …
5. Step 4: Concreting. …
6. Step 5: Reinforcing concrete. …
7. Step 6: Levelling and insulation. …
8. Step 6a: Insulating above concrete.
