How do you know if a sprinkler solenoid is bad

Never-ending water: The valve solenoid may get stuck open, allowing all or a trickle of water through at all times. … Water leaks: High pressure from a broken solenoid can put a lot of stress on your sprinkler system and burst small or large leaks throughout it.

How do you test a sprinkler solenoid?

1. Turn off the water supply to the irrigation system using an isolation valve.
2. Disconnect the solenoid wires from the controller.
3. Using and multimeter test the number of ohms through the solenoid. 20-60 ohms – Good. …
4. If solenoid tests Good, then the solenoid is OK.

How long do sprinkler solenoids last?

“But, if it’s a good quality valve, it should last 12-15 years out in the field.”

What happens if a sprinkler solenoid goes bad?

A sprinkler works because the solenoid changes the water pressure inside the sprinkler chamber and lifts the plunger that opens the sprinkler valve. … If your solenoid is bad, the water pressure in the sprinkler chamber will not be changed and the valve will fail to open.

How much does a sprinkler solenoid cost?

Type of ReplacementAverage Replacement Costs (Parts and Labor)Solenoid$85 – $150Valve$85 – $150Manifold$100 – $225Controller$100 – $300

What causes solenoids to fail?

Solenoid coil failure can be caused by a number of factors. Applying an incorrect voltage to the coil will cause it to fail and may cause the coil to burn out. Electrical surges or spikes may also damage the coil. … Sediment or other particles entering the valve may cause coil failure.

How do you test a sprinkler solenoid with a multimeter?

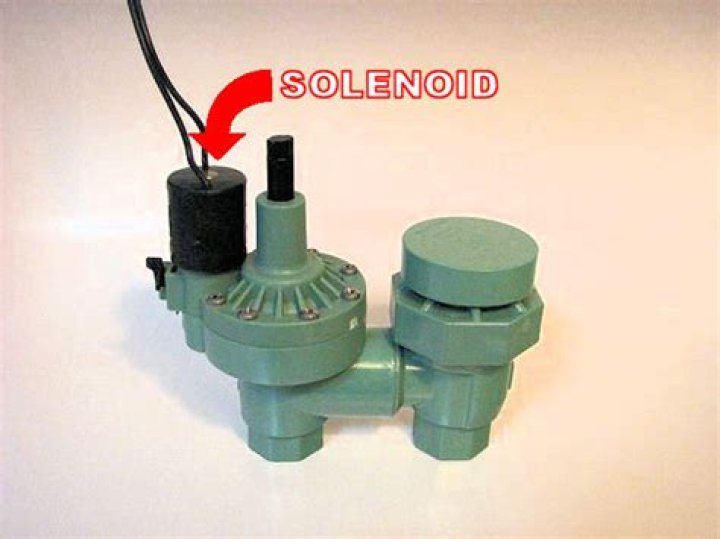

Rotate the multimeter dial to “Ohms” and place one lead to each of the two wires on the solenoid. The solenoid is a black, round object on top of the valve that opens and closes the water flow. The reading should be the same as it was at the irrigation controller; if not, the solenoid is defective and needs replacing.

Why is my solenoid valve not working?

Problem: Solenoid Valve Not Opening. Possible causes include lack of power in the solenoid coil, burnt coil, wrong voltage, pressure differences (too high or too low), and dirt of the membrane, valve seat, or tube. It can also be due to a vital part of the solenoid valve missing or being damaged.

Are sprinkler solenoids interchangeable?

It is also interchangeable with most brands of 24-volt automatic valves. This 24-Volt Solenoid replaces worn Orbit automatic valve solenoids. It is also interchangeable with most brands of 24-volt automatic valves.

What causes a sprinkler zone not to work?

Failing zones may also be caused by an electrical problem, which can manifest as a problem with the timer, the valve, the solenoid, or the wire. Frequently, a bad connection may be responsible. … When you suspect that the problem may be electrical, checking the timer is typically a good place to start.

Article first time published on

What causes a sprinkler valve to stay open?

Air Trapped in the Valve: The valves may have air trapped in them. A small bubble of air becomes trapped in the tiny water ports of the valve, this stops the water from flowing through the port. Since the water flowing through the port is what holds the valve diaphragm closed, the valve stays open.

Can you replace the solenoid on a sprinkler valve?

You must replace the solenoid that resides on top of the underground valve. Turn off your water supply to the sprinkler system. … Unscrew the wire nuts from the solenoid’s wires using your fingers. They are typically very small, plastic connectors.

What is a master solenoid?

A Master solenoid valve is a solenoid valve often installed at the head of your water supply which, when wired to the “MV” or “P” terminal, will open at the same time as any of your zone solenoid valves. … Master solenoid valves are a sensible idea when your system involves the installation of a main pipeline.

Is it the solenoid or starter?

The starter solenoid is a powerful electromagnet switch, which is why it’s sometimes called a solenoid switch. It activates the starter motor of an internal combustion engine. You might also hear it referred to as a starter relay.

Can a solenoid burn out?

In rare cases, a solenoid coil will burn out due to OVERVOLTAGE. The plunger WILL close, because the solenoid has extra force. (You’ll find no melted bobbin.) The high voltage causes excessive holding current which will overheat the coil and burn it out.

Do solenoids wear out?

Like any mechanical device or component, transmission solenoids do wear out with time. Standard preventative maintenance for your transmission can help offset their deterioration to a degree.

Can you manually open a solenoid valve?

The Magnet is the ideal tool for the service and maintenance engineer who requires a solenoid valve to be operated manually during installation, commissioning or decommissioning or when power is not available. …

How do I know if my sprinkler system has a master valve?

It is connected to the “master” or “pump” connection in your controller. For Generation 1 controllers, this is the blue terminal in the wall mount. For Generation 2 controllers, find the terminal marked “M”. In the image below, the master valve is in the small circular box to the left of the main sprinkler box.

How do you test a shift solenoid?

Raise up the vehicle with a jack and place jacks stands at all four corners to support it. Remove the bolts that are securing the transmission oil pan with a ratchet set and slide out the pan. This should reveal the solenoid that is attached to the transmission body.

How do I find a buried solenoid valve?

Start at that sprinkler and try to find the valve nearby. The cheapest and easiest way to find buried irrigation valves is often to probe the soil with a thin rod, such as a long screwdriver. Often you can estimate the rough location of the irrigation valve, then find a buried valve box by probing the ground.

Should solenoid be on or off?

Avoid over-turning the solenoid in either direction, as this can cause damage to the components or cause pressurised water to escape the solenoid. When you hear water rush through the device, it’s easy to tell that the valve has opened successfully.

Will a bad solenoid cause low water pressure?

Signs that Your Sprinkler Valve Solenoid is Bad Never-ending water: The valve solenoid may get stuck open, allowing all or a trickle of water through at all times. This will keep the sprinkler running even when the system tries to turn it off. … Low water pressure: Low water pressure can be just as much of a problem.

Why won't my sprinklers turn on manually?

If your sprinkler system won’t turn on or if you have low water pressure, this could be caused by the valves not being turned on all the way. Just locate the valves and make sure they are both turned on (you should have 2 valves, one located on the horizontal pipes and one for the vertical ones).

How do you diagnose a sprinkler valve?

1. Water not turning Off: If you notice that water is not closing off from the sprinkler, then there seems to be an issue in the diaphragm valve. …
2. Leaks of water: …
3. Broken Sprinkler Head. …
4. Stuck Valve. …
5. Wiring: …
6. Irregular Watering:

Should sprinkler solenoid be open or closed?

Make sure the sprinkler valve is closed, unless it’s the valve farthest from the main water source. You’ll want to leave this valve open and remove the sprinkler nozzle to allow air to escape when you turn on the water.

What does a solenoid valve do in a sprinkler system?

A water irrigation solenoid valve is an electrically controlled valve to regulate the flow of water. By applying a voltage over the coil, the valve opens and the liquid can flow through. Solenoid valves are also called electromagnetic valve, water valve, electric valve or electro valve.
