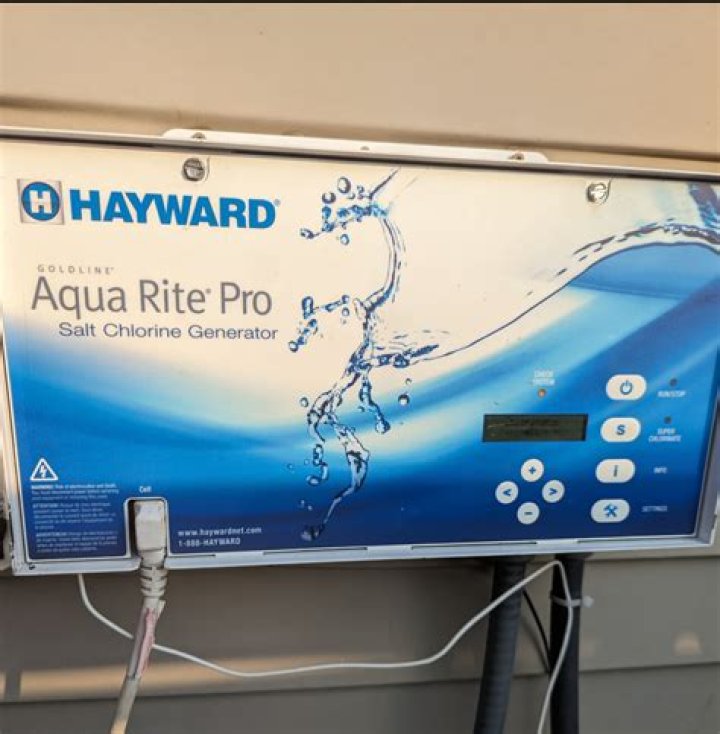

How do you reset a Hayward Aqua Rite salt generator

If the Inspect Cell Light is the only LED light flashing, then you can reset it by simply holding down the diagnostic button for 3 seconds, then release. The Inspect Cell indicator will now reset and will later come back on after another 500 hours of use.

How do I reset my Aqua Rite salt generator?

To reset, move the switch to ‘Off’ and then back to ‘Auto’. Wait for the relay to click (5 to 10 seconds). When the instant salt level is stable (and the negative sign still present), slide switch to ‘Super Chlorinate’ and back to ‘Auto’. It takes about 30 seconds for the unit to settle back on the default reading.

How do I reset my salt system?

If the “Inspect Cell” light flashes by itself it is an early indication that the salt generator needs a manual reset. Each cell is equipped with 500 operational hours and requires a manual reset once it expires. To reset the cell, hold down the “Diagnostic” button for 3-5 seconds.

How do I reset my Aqua Rite board?

Push the diagnostic button until “t-xx” appears on the display. Press Diagnostics button 5 times to display Instant Salt level. Wait for the number to settle. To reset, turn the unit to Off and then back to Auto.

How do I reset my Hayward Aqua plus salt?

With the pump running, take the power switch down to the “Off” position, and then back up to “Auto”. You should hear a click within 10 or 15 seconds. When you do, press the diagnostic button five times in a row. The system will go through a recalibration process.

How do I know if my salt water generator is working?

The easiest way to ascertain if the chlorinator is working is to make sure the cell is clean by checking the needle or production lights. Ensure there is enough salt in the pool. On the chlorinator box there should be a light or dial that indicates it is working.

How do I reset my Hayward salt cell after cleaning?

If the Inspect Cell Light is the only LED light flashing, then you can reset it by simply holding down the diagnostic button for 3 seconds, then release. The Inspect Cell indicator will now reset and will later come back on after another 500 hours of use.

What should my salt generator be set at?

We suggest you start your salt chlorine generator at 50 percent output and run it for a couple of days, then check the chlorine level. In a balanced pool, a good chlorine level is 1-3 parts per million. If your chlorine levels are low, you can raise the percentage, and if it’s high you can lower the percentage.

Why is my salt generator not working?

The saltwater chlorinator needs a sufficient flow of water for effective operation. A dirty skimmer basket, clogged or dirty filter, and a clogged pump strainer, can cause insufficient water flow for the chlorinator to produce less chlorine.

How do you unlock the configuration menu on Hayward Aqua Plus?

Press the ‘Menu’ until, ‘Configuration Menu-Locked’ appears. To unlock, press and hold the (<) & (>) until the text, on the display, changes from ‘Locked’ to ‘Unlocked‘ (unit will beep).

Article first time published on

Why is my Hayward salt system not generating chlorine?

The salt level is too high or too low (ideal 3200 ppm). The water temperature is warm and this causes a higher demand for chlorine. The water temperature is too low (below 50ºF) and this causes the Aqua Rite to stop generating. … Note: Any one of these problems will cause a little or no chlorine residual.

Why does my Hayward salt system say no flow?

The “No Flow” light indicates that the flow switch is not detecting sufficient water passing through. Check the following: cleaning the cell or the filter (see how to backwash a DE Filter or Clean a Cartridge Filter). Replace the flow sensor.

What temperature does a Hayward salt Cell stop working?

In pool water temperatures that are 60 degrees or below, the salt generators simply shut down and by design do not allow the salt cell to ionize (breakdown) the salt and convert it to chlorine.

What happens if salt level is too high in pool?

Having too much salt in your pool water can result in unnecessarily increasing chemical expenses. But having too little salinity restricts the amount of chlorine being generated and can lead to algae and bacteria growth.

How do I reset my Hayward OmniLogic?

Shut Down – When Shut Down is selected, the OmniLogic will turn off all pool equipment and report when it is safe to remove power. When this message is displayed, you can either power off the unit or restart the OmniLogic by touching the large power button displayed on the left side of the screen.

How do I change cell type in aqua rite?

1. Slide the Main Switch to the “Auto” position.
2. Push the Diagnostic button repeatedly until “t-xx” appears on the display (“t-15” is. the factory default). …
3. To change to a different cell type, slide the Main Switch from “Auto” to “Super. …
4. Push the Diagnostic button to exit.

How do you reset the salt level on a Hayward Pro Logic?

You must reset the system by entering the ‘Diagnostic Menu’ and then hitting the right arrow key once and then pushing the plus key once. This should reset the light and message.

How do you unclog a Hayward chlorinator?

To clear an air lock, remove the lid, then turn on the pump and allow the chlorinator to fill with water. Turn off the pump; replace the lid, and turn the pump back on again.

How do I check my cell hours on my Zodiac Tri chlorinator?

The TEST CELL message on your chlorinator is not always a fault, it is simply to remind you to check your equipment from time to time. It comes up when your cell has done 6000 hours or more. Press and hold the MINUTE button until the hours for the power pack and the cell are displayed.

How can I tell if my salt cell is bad?

1. The power center displays a Check Salt message. …
2. The Cell Warning light displays consistently, shutting off for only a short while after cleaning.
3. Voltage is higher than normal.
4. Amperage is irregular (it should normally be zero or just slightly above)

How long do Hayward Salt cells last?

It’s important to note, properly maintained salt cell will last 3-5 years; an improperly maintained cell can fail in a year. Considering that salt cells are relatively expensive, we want to make sure you know the basics about prolonging their lifespan so you’ll get the most value for your dollar.

What setting should my pool chlorinator be on?

Chlorine Feeders: For each 5000 gallons of pool water, add one 3″ chlorine tablet, more or less. Choose a mid-point setting on the 1-10 dial. The higher the setting, the greater the dissolution rate. A setting of 5 may be too high, and it depends on the number of tablets in the feeder.

How many pucks are in a Hayward chlorinator?

Your CL-220 holds up to 18 large (3″ diameter) tablets (about 9 lbs.) and has a dial type control valve to regulate the rate of water flow through the chlorine feeder. This large capacity feature, under normal conditions, should provide a minimum of two weeks chlorination for large pools.

How many pucks are in a chlorinator?

It is easy to tell if you need more chlorine pucks in your skimmer basket. Since they dissolve, once they have disappeared just add more. Chlorine pucks also allow you to manually control how much chlorine is in your pool’s water. It is usually 1 chlorine puck for every 5,000 gallons of water.

How many hours a day should a salt water pool pump run?

The average pool system needs to run anywhere between 4-10 hours so you will have to gauge it yourself though testing over time.

What should my chlorinator read?

On a Hayward Salt Chlorinator, your salt reading should be between 2,700 – 3,400 PPM (parts per million) with the optimum level of 3,200 PPM.
