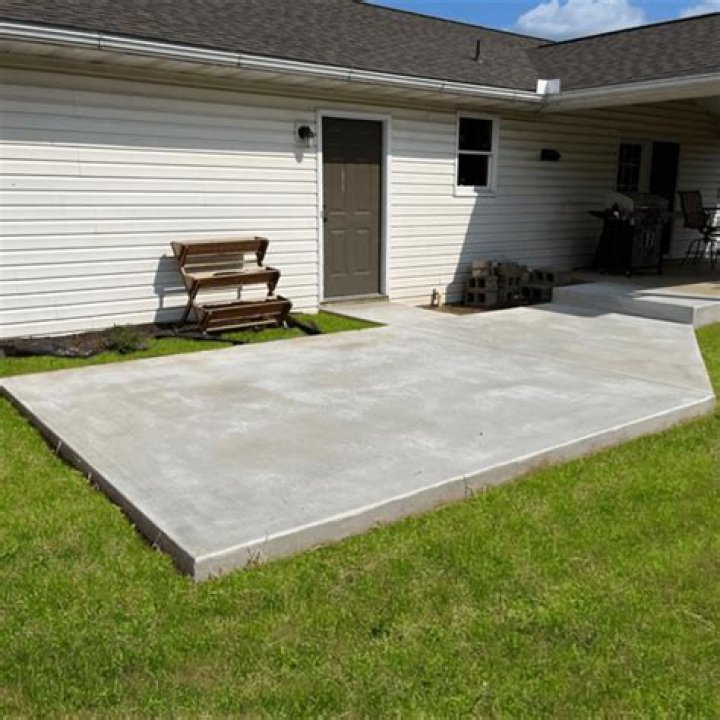

How do you score a concrete patio

You can use a skill saw or a 4 1/2″ angle grinder with a diamond blade, along with a straight edge. Measure your lines out, mark each end with a pencil, and then mark the lines with a chalk line, using blue chalk. Never use red chalk as it stains the concrete.

How do you score and cut concrete?

Use a standard circular saw, equipped with a corundum or diamond blade, for small tasks. For slabs, it’s best to cut through the top inch, then use a sledgehammer to break off the rest. The jagged edge left below the cutting line provides a good rough edge for the new concrete to bond to.

How much does it cost to score concrete?

Stained Concrete Driveway Cost The cost of a stained concrete driveway ranges from between $4 per square foot to $10 per square foot for a basic design. If you want it sealed, it will cost a little extra.

How do you grade a concrete patio?

The standard slope for proper concrete drainage is a one-quarter inch drop for every foot of length. So, to calculate the difference in height between one end of a patio or walkway and another, simply multiply the length by one-quarter.

What does scoring concrete mean?

Scoring concrete is essentially cutting a shallow cut into the concrete. These cuts can be used to create the illusion of tile or stone or to “draw” a custom pattern or logo into the concrete. Because these lines are actually cut into the concrete, they are as permanent as the slab itself unless covered.

What happens if you don't cut concrete?

Cutting too early can mark the pavement surface as well as cause joint raveling. Late sawing can result in random concrete cracks. Shallow cracks aren’t sufficient to prevent uncontrolled cracking while deep cuts are excessively labor intensive and undermine the aggregate interlock in the concrete.

Why do you score concrete?

Saw cuts are a used to create control joints in concrete, which help control where cracking occurs due to shrinkage. The cuts should be made at a predetermined spacing and only after the concrete has obtained sufficient strength but before internal cracking begins.

Can you cut concrete with a Sawzall?

You can cut through concrete with a reciprocating saw, as long as it’s a piece that’s thin enough for the tool, which is usually never the case with concrete. It is not recommended to cut concrete with a reciprocating saw, instead use a circular saw or angle grinder with a diamond blade attached.

Can you cut concrete with angle grinder?

Although the various concrete cutting saw is available, an angle grinder is the most convenient tool for small concrete cutting work. … A concrete-cutting blade for an angle grinder has a diamond-studded rim with ventilation grooves — a tile-cutting blade uses diamond studs but does not have the grooves.

How do you pitch a patio?

A patio should slope away from the house at the rate of 1/8″ (3mm) per running foot. Generally, a 4″ (100mm) thick slab set 2″ (50mm) above ground level is suitable. To ensure that the height and slope are correct, begin the excavation, layout and form construction where the patio meets the house.

Article first time published on

How thick should concrete be for a patio?

Four inches is the minimum thickness for a concrete patio. You’ll want to make it six to eight inches thick if the patio will support a structure such as a gazebo or hot tub.

What is a good slope for a patio?

All of the paving slabs will need to be laid with a slight slope, around a 1 in 80 fall. This is so that pools of water don’t form on the surface of your patio. That means that for every 80cm your patio should fall by 1cm. The fall may vary dependent on the size of your patio but this is the optimum level.

How much is a 20x20 concrete slab?

Slab SizeSquare FeetAverage Cost Installed15x15225$1,38820×20400$2,46824×24576$3,55420×30600$3,702

How many yards of concrete do I need for a 24x24 slab?

For example, for a concrete slab that is 24′ X 24′ X 4”, simply enter 4 in the Thickness/Depth field, 24 in the Width field, and 24 in the Length field. Click “Calculate”. Your answer should be 7.11 yards. Note: The Concrete Volume Calculator can also be used to determine yardage for aggregate products.

How much does it cost to pour a 40x60 concrete slab?

How much does a 40×60 concrete slab cost? It would be about $8,500 to $12,000 for a 40×60 foot concrete slab, 6 inches thick. That’s based on national averages of around $5 per square foot for a fully engineered, finished concrete slab, including labor and materials.

How soon can you cut concrete after pouring?

For most concrete work, cutting should take place within the first 6 to 18 hours and never beyond 24 hours. Smaller early-entry saws are available, which may allow cutting to begin within a few hours after placement.

How do you keep concrete from cracking?

1. Start with a sound subgrade. Make sure the subgrade is compacted. …
2. Modify the concrete mix. Use a low water-to-cement ratio. …
3. Install joints. Be active in deciding where control joints will be placed. …
4. Properly cure the concrete.

How do I upgrade my patio floor?

1. Paint a Pattern. Yes, you can paint your concrete slab. …
2. Lay Decking Flooring. Did you know you can lay decking over a concrete slab? …
3. Add Curves With Pavers. …
4. Lay Slate Tiles. …
5. Stain the Concrete to Look Like Tile. …
6. Add a Beautiful Outdoor Rug. …
7. Paint Concrete. …
8. Dress it Up.

Why we do groove cutting?

The purpose of the Groove Cutting is to weaken the slab along the approved line so that the slab cracks there instead of somewhere else. … Their purpose is to distribute the load evenly between slabs thereby protecting the concrete along the joints.

How deep should relief cuts be in concrete?

A good rule of thumb is to make your cut ¼ the thickness of your concrete. If ¼ of your slab’s thickness, doesn’t reach 1” make sure you still cut at least a 1” depth.

Does concrete need to be cut?

Joints should be sawed as soon as the concrete will withstand the energy of sawing without raveling or dislodging aggregate particles. For most concrete mixtures, this means sawing should be completed within the first six to 18 hours and never delayed more than 24 hours.

Does a concrete patio need expansion joints?

Expansion joints are virtually never needed with interior slabs, because the concrete doesn’t expand that much—it never gets that hot. Expansion joints in concrete pavement are also seldom needed, since the contraction joints open enough (from drying shrinkage) to account for temperature expansion.

When should you float concrete?

Float the concrete when you’re done grooving and edging (Photo 6). Floating removes the marks left by edging and brings the surface one step closer to a final finish. You may have to bear down on the float if the concrete is starting to harden.

What kind of blade Do I need to cut concrete?

Any handy homeowner looking to cut concrete needs one crucial tool: a diamond blade. While abrasive blades can cut concrete, they wear out quickly, potentially needing to be replaced multiple times in the course of one project.

Can I use a metal cutting disc on concrete?

Cutting discs are used as part of machines such as angle grinders to cut through hard, thick materials. These flat, thin and round discs look similar in shape to DVDs or compact discs and are able to cut through wood, concrete, stone and variety of metals, such as aluminium and steel.

How long will a diamond blade last cutting concrete?

According to experts, a low-quality diamond blade can only last around 12 hours of non-stop cutting, while high-quality blades can cut materials up to 120 hours.

Will a carbide Sawzall blade cut concrete?

The abrasive coatings that allow a reciprocal saw to grind through concrete consist of mineral-grit and there are two basic types of mineral-grit blade coatings: carbide and diamond. Aside from its reputation for beauty, the diamond is one of the hardest substances on the planet.

Why is it called Sawzall?

The name Sawzall is often used and is an example of a generic trademark. This name is from Milwaukee Electric Tool, who first produced a tool of this type in 1951, and in the United States, it is ubiquitously, colloquially applied to tools of this type.

How much slope is too much for a patio?

Many restaurants set up patios on existing sidewalks with a slope of 2% to a maximum of 5%, which supports the practice that the maximum slope of a patio is 5% or 5/8” per foot. Furniture sitting with the grade may not experience much from a 2% (1/4” per foot) patio grade at all.

What is the minimum slope for drainage?

For efficient drainage, paved surfaces should have a minimum 1-percent slope. Turf or landscaped areas should have a minimum slope of 2 percent.

Is rebar necessary for concrete patio?

Do concrete patios need rebar? Even though it’s possible to build a concrete patio without rebar, it’s not recommended. All concrete is subject to cracks, but rebar holds all the cracks together and keeps the slab level and even. Without rebar, the cracks would become quite wide and the concrete would become uneven.
