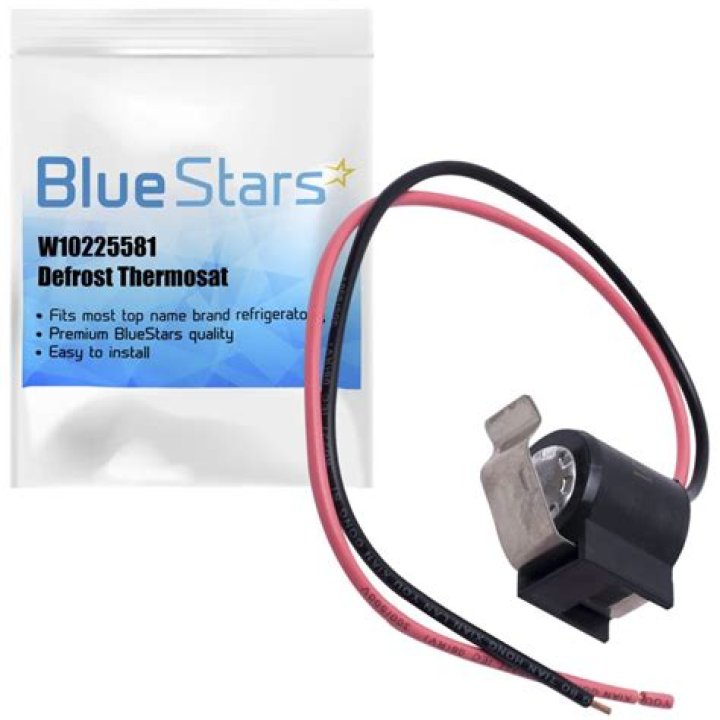

How do you test a bimetal defrost thermostat

Locate the bimetal thermostat. … Turn on the furnace or device and adjust the temperature control to turn it on. … Plug in the hair dryer and aim the flow of heat at the bimetal thermostat. … Replace the bimetal thermostat if it does not respond correctly to heat.

How do you test a bimetal thermostat?

Locate the bimetal thermostat. …
Turn on the furnace or device and adjust the temperature control to turn it on. …
Plug in the hair dryer and aim the flow of heat at the bimetal thermostat. …
Replace the bimetal thermostat if it does not respond correctly to heat.

How does a bimetal defrost thermostat work?

A defrost bimetal thermostat works separately from the refrigerator or freezer. This device, which turns on several times a day, senses the temperature of cooling coils. … When the frost is all melted, the bimetal thermostat will sense the temperature increase and trigger the defrost heater to turn off.

How many ohms should a defrost thermostat have?

Ohming the defrost heater and the defrost thermostat is the best way to test these parts. under 100 ohms (31 ohms typical).

Is a defrost thermostat normally open or closed?

The defrost thermostat should be in the closed position when cold. Check to be sure the thermostat is opening at the correct temperature by placing it in water and slowly heating the water. Defrost thermostats are designed to open between 40 degrees and 90 degrees Fahrenheit.

What happens when a bimetal device is heated?

the brass expands faster than the steel which causes the device to warp. the motion of the bimetal strip is then used to perform some useful task.

How hot should a defrost heater get?

Don’t know how hot the defrost heater gets but the defrost thermostat will operate when the freezer temperature reaches about 40°F and this turns off the heater.

What is a bimetal thermometer?

The bimetallic strip constitutes one of the most trouble-free and durable thermometers. It is simply two strips of different metals bonded together and held at one end. When heated, the two strips expand at different rates, resulting in a bending effect that is used to measure…

What does the bimetal thermostat do?

Bimetal Thermostats, which regulate the temperature inside heating pads, blankets, and medical pads, are used in any case where the applications need control for a low temperature. Bimetal Thermostats use two different kinds of metal to regulate the temperature setting.

What number should freezer be on 1 9?

If you have the 1 to 9 format on your freezer, set it to 4. The ideal temperature settings for the refrigerator and freezer are 34 degrees F to 38 degrees F, or 1 degrees C to 3 degrees C.

Article first time published on

How do I test my fridge freezer thermostat?

Place each of the multitester’s leads on a thermostat wire. When your thermostat is cold, it should produce a reading of zero on your multitester. If it is warm (anywhere from forty to ninety degrees Fahrenheit), then this test should produce a reading of infinity.

What are the symptoms of a bad thermostat?

#1 – Temperature Gauge Reading Higher (or Lower) Than Normal.
#2 – Sudden Air Temperature Changes Inside Vehicle.
#3 – Coolant Leaking.
#4 – Rumbling Noises.
#5 – Heater Malfunction.

Are defrost thermostats interchangeable?

It depends on how new you fridge is. For the older fridge they are interchangeable. For the newer ones the defrost timer is built into the control circuit board.

How often does the freezer defrost?

This process automatically happens. Most freezer models have a defrost cycle that lasts for approximately 25 to 45 minutes. The freezer can defrost once or twice a day. If you are wondering how this all happens, continue reading.

How does defrost sensor work?

Temperature – the defrost thermostat measure the temperature of the evaporator, activating once it reaches a set point to warm and defrost the evaporator. Frost thickness – an infrared sensor is used to measure how much frost built up and activate the heating element once it reaches a certain thickness.

What causes a refrigerator to not defrost?

If the defrost sensor fails to shut off the defrost heater, the fuse will blow in order to shut off the defrost heater. If the defrost sensor fuse blows, the defrost system will not work, and the refrigerator will not defrost. … If either the defrost sensor or fuse does not have continuity, replace the defrost sensor.

Where does the water from the defrost cycle go?

Defrosting Journey Thanks to its liquid state and gravity, the water enters the drain and travels down the hose. It ends its journey in the drain pan. If you find standing water in the fridge, the drain line may be blocked. Save money by defrosting the refrigerator regularly.

How often does the defrost cycle run?

There are timers built into the computer control of the system that restrict how often defrosting can occur. Generally, a unit must run for a minimum of about 35 minutes after starting up before completing its first defrost. From there, defrosts should occur no more often than approximately every 40 minutes.

Which metals are most commonly used in a bimetal temperature control?

The two metals typically used are steel and copper, but steel and brass can also be used. Since their thermal expansion is different, the length of these metals changes at different rates for the same temperature.

What type of action does a bimetal element produce with a temperature change?

A bimetallic strip is used to convert a temperature change into mechanical displacement. The strip consists of two strips of different metals which expand at different rates as they are heated.

What is meant by bimetal strip?

bimetallic strip in British English noun. a strip consisting of two metals of different coefficients of expansion welded together so that it buckles on heating: used in thermostats, etc. Collins English Dictionary.

How does a bimetal thermal fuse work?

Bimetal thermostats can also be outfitted with a thermal fuse. Designed to detect high heat, the thermal fuse will automatically break the circuit, which can save the device to which it’s attached.

How does a bimetal work?

Bimetal thermometers work on the principle that different metals expand at different rates as they are heated. By using two strips of different metals in a thermometer, the movement of the strips correlates to temperature and can be indicated along a scale.

What temperature should a bimetallic stemmed or digital thermometer be?

Bimetallic thermometer calibration Make sure the stem does not touch the bottom or sides of the glass. Let it sit until the dial stops moving. If the thermometer is accurate, it should measure 0 ° C or 32 ° F.

What is a thermocouple thermometer?

thermocouple, also called thermal junction, thermoelectric thermometer, or thermel, a temperature-measuring device consisting of two wires of different metals joined at each end. One junction is placed where the temperature is to be measured, and the other is kept at a constant lower temperature.

What temperature should a bimetallic stemmed or digital thermometer be calibrated?

For a bi-metallic stemmed thermometer, wait until the needle stops moving then use a small wrench to turn the calibration nut until the thermometer reads 212°F. NOTE: Accuracy of digital thermometers should be verified using ice point methods steps 1-6 or boiling point method.

How do you test a thermostat with a common wire?

It is easy to see if you already have a c-wire connected to your system. Simply remove your current thermostat face from its baseplate and look for the terminal labeled with the letter “c.” If this terminal has a wire attached to it, you have an active “c-wire.”

Should a thermostat have continuity?

You are testing for continuity, and you should receive a reading of either zero or infinity. At room temperature, testing the thermostat should produce a reading of zero. But if a thermostat is tested when it is heated to its limit, a reading of infinity should be produced.
