How do you test a fuse and relay

The only tool required to check a relay is a multimeter. With the relay removed from the fuse box, the multimeter set to measure DC voltage and the switch in the cab activated, first check to see if there are 12 volts at the 85 position in the fuse box where the relay plugs in (or wherever the relay is located).

How do you know if you have a bad relay fuse?

You want to feel and listen for any clicks. If you feel and hear clicks, the relay works on one side – the side with the energizing circuit and coil. However, if there was no sound from the horn, the relay has a problem along the contact circuit.

What happens when a relay switch goes bad?

If your starter relay has gone bad, the electrical signal will never make it from the battery to the starter motor. As a result, your engine won’t turn over – no matter how many times you turn the key. A faulty relay often produces an audible clicking sound when you turn your car.

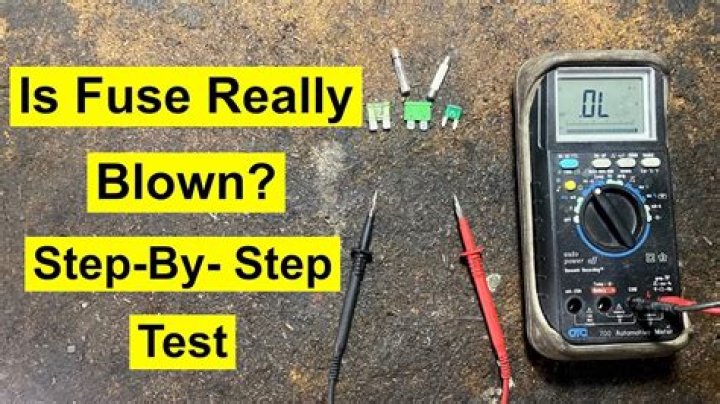

How do you tell if a relay fuse is blown with a multimeter?

Fuse is OK: If the multimeter reading changes to a low resistance value (similar to the result of touching the 2 leads together). Fuse is Blown: If the meter reading does not change and display still shows the original 100% resistance state. Don’t forget to turn the multimeter OFF when you have finished testing.

How do I know if my relay module is working?

1. Keep the multimeter in the continuity check mode.
2. Check for continuity between the N/C contacts and pole.
3. Check for discontinuity between N/O contacts and the pole.
4. Now energise the relay using the rated voltage. …
5. Now check for continuity between N/O contacts and pole.

Why relay testing is required?

Why is protection relay testing important? Due to the critical nature of protection relays, testing during the commissioning stage is crucial for confidence in the operational safety of an electrical system. Additionally, testing on a regular basis is necessary to ensure correct operation is maintained.

How do you test a flasher relay?

1. Access the junction box where your flasher relay is located. …
2. Turn your car or truck’s ignition on.
3. Connect the clip of the test probe to any good ground. …
4. Remove the relay and locate its control and power terminals.
5. Turn your multimeter on and set it to the ohms setting.

How do you test a fuse and relay with a multimeter?

The only tool required to check a relay is a multimeter. With the relay removed from the fuse box, the multimeter set to measure DC voltage and the switch in the cab activated, first check to see if there are 12 volts at the 85 position in the fuse box where the relay plugs in (or wherever the relay is located).

What is the resistance of a 12v relay?

The relays are usually supplied with 12 V directly from the vehicle battery. The electrical resistance (impedance) of the coil is vary and is different depending upon the manufacturer of the relay as well as relay’s type, but in general a typical value should be expected between 50 ohms and 200 ohms.

Why do relays stop working?

When operated at full load, a relay is said to have failed when its contacts fail to operate (often because they weld together) or when contact material erosion results in an unacceptable high path resistance. When asked to hot switch a load, a relay may only be good for 100,000 operations.

Article first time published on

How do you test a 12V relay with a multimeter?

Leave the multimeter on ohms or continuity. Touch the leads across the switch pins. A normally open relay should read open or OL. Energize the electromagnet coil with a 9-12V battery across the pins.

How do you know if a flasher relay is bad?

The most common symptom of a bad or failing turn signal / hazard flasher is hazards or turn signal lights that do not function. If the flasher breaks or has any internal issues it can cause the lights to malfunction, or not respond at all when the turn signal lever or hazard light button are pressed.

How do I test my motorcycle blinker relay?

You can test it by connecting it to a battery and then directly thru a bulb or two bulbs wired in parallel, to give you the correct current flow thru the flasher. When you complete the circuit, the flasher should work and the lights should flash.

What are the test performed during commissioning of relay?

Primary injection tests on each relay to prove stability for external faults and to determine the effective current setting for internal faults (essential for some types of electromechanical relays) Testing of protection scheme logic.

What is relay testing kit?

Single Phase Relay Testing Kit are designed to test various types of relays such as Inverse time over-current relay 51, Under/over-voltage relay 27/59, Instantaneous over-current relay 50, Auxiliary AC/DC Relay making it suitable especially for site testing.

What is relay calibration?

The law requires that these relays are tested and calibrated once in 2 years. … This causes the relay to open the main Switch (called a Circuit Breaker) when the current goes high. This can prevent electrical fires as well as serious short circuits and electrocution.

How many volts does it take to trigger a relay?

Most are rated at 12v, usually a range of 12-15v. Actual voltage required to operate the relay is usually a little under 12v. That is why your accessories can still operate with the key on and engine off, usually making actual voltage a bit under 12v with lights on.

How many ohms is a relay coil?

Like for automotive applications, the relay coil resistance is mostly in the 50 ohms – 200 ohms. For 24V systems, the coil resistance can be as high as 200 ohms to 600 ohms.

How do you read a relay?

Relays are switches that open and close circuits electromechanically or electronically. Relays control one electrical circuit by opening and closing contacts in another circuit. As relay diagrams show, when a relay contact is normally open (NO), there is an open contact when the relay is not energized.

Can you check fuses with a test light?

Always use the proper test light or voltage meter to check the vehicle’s fuses. … Clamp the end of the test light or the negative cable of the voltage meter to a good ground close to the fuse box. Check one end of the first fuse. It should light the test light or show 12.6 volts or so on the voltage meter.

Can a fuse test good but be bad?

The only way to tell if a fuse is good or bad is to remove it from the circuit and test it with VOM meter on the resistance scale. A good fuse will have no resistance whereas a bad fuse will read infinite resistance.
