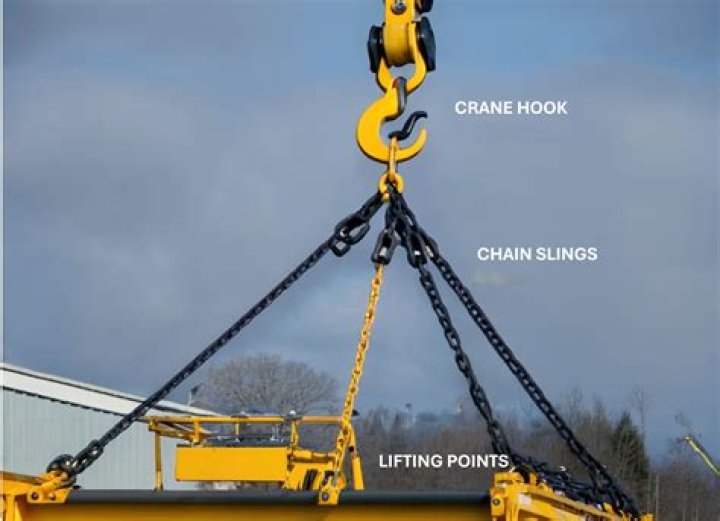

How do you use a chain sling

Do not force, hammer or wedge chain slings or fittings into position. Keep hands and fingers from between load and chain when tensioning slings and when landing loads. Ensure the load is free to be lifted. Make a trial lift and trial lower to ensure the load is balanced, stable and secure.

How should you use chain slings safely?

Do not force, hammer or wedge chain slings or fittings into position. Keep hands and fingers from between load and chain when tensioning slings and when landing loads. Ensure the load is free to be lifted. Make a trial lift and trial lower to ensure the load is balanced, stable and secure.

What is the maximum amount of wear permitted in a chain sling?

(c) Check each chain link for excessive wear, twisted or bent links, cuts, nicks, or gouges, and stretched links. If wear exceeds 15 percent of the original diameter of the link, the chain should be removed from service. A 5 percent stretch on any link should be considered the maximum allowable.

When lifting with a chain sling the sling angle should not exceed?

The sling must not be twisted, knotted or kinked in any way. o Use packing to prevent damage to the sling from corners or edges and to protect the load. o Do not exceed the SWL or rated angle. Any choke angle must not exceed 120° and any basket 90°.

What are the 3 types of slings?

Web sling. …
Wire rope sling. …
Chain sling.

How often should chain slings be inspected?

All sling chains, including end fastenings, shall be given a visual inspection before being used on the job. A thorough inspection of all chains in use shall be made every 3 months.

Should slings be inspected before each use?

Frequent Inspection – The sling must be inspected by a designated person before each day or shift in Normal service conditions, or before each use in applications where a rapid rate of sling wear or other degradation may exist. (Severe service conditions).

Where are sling angles taken from?

All Sling angles are measured from the horizontal. As the angle decreases the stress imposed on the leg of a sling increases. A simple demonstration makes this very clear. Imagine one carries a weight with one’s arm hanging down, and then try lifting the same weight sideways up and away from your body.

How do you find the angle of a sling?

How is this figured out? Mathematically, the length of the sling is divided by the height from the load to the hook. Example: The sling is 10′ long and the height is 5′, divide the length by the height, for a sling angle factor of 2, which is the SAF for a 30-degree horizontal angle.

Is wire rope a sling?

Wire rope slings, sometimes referred to as wire cable slings are more robust and durable than nylon slings and also have higher temperature limits. Wire rope slings with an independent wire rope core (IWRC) can withstand contact and exposure temperatures up to 400 degrees (F).

Article first time published on

When inspecting chain slings What do you look for?

Name or trademark of manufacturer.
Grade.
Nominal chain size.
Number of legs.
Rated load for the type of hitch(es) used and the angle upon which it is based.
Length (Reach) of the sling.
Individual sling identification (e.g., serial numbers)

What should be attached to every sling?

Slings used in a basket hitch shall have the loads balanced to prevent slippage. Slings shall be securely attached to their loads. Slings shall be padded or protected from the sharp edges of their loads. Suspended loads shall be kept clear of all obstructions.

Are chain slings affected by heat?

Although extremely strong, chain can still be negatively affected when exposed to temperature extremes. The acceptable temperature range will vary depending on the grade of the chain and will also vary in reduction of Working Load Limit (WLL).

Do shoulder slings work?

Wearing a shoulder sling may be key to helping your arm or shoulder heal after an upper body injury or surgery. You might need to wear a sling after a stroke or if you have an elbow or shoulder fracture. But it’s important to use it correctly. If you do, you can prevent further injury and help your muscles heal faster.

What can I use for an arm sling?

You can also make a sling using a belt, rope, vine, or sheet. If the injured arm should be kept still, tie the sling to the body with another piece of cloth wrapped around the chest and tied on the uninjured side.

What determines what type of sling you use?

Slings are made of a variety of materials. We determine what type of sling to use by the size and type of load, and the environmental conditions in the work area. For cranes and slings to perform properly, they have to be in top condition. So, good inspection and maintenance are especially important.

Do slings expire?

Some companies will insist on replacing them every year, whereas others don’t deem it necessary to do so more often than every four years. It is essential that you get all machinery serviced regularly, which will be an important factor in deciding how often to replace lifting slings.

Do not use a sling if it has?

DON’T Use a Sling That is Damaged Cuts, abrasions and fatigue damage significantly reduce the load capacity of the sling and increase the chances that a sling will fail during the lift. Slings that show signs of wear or damage must be taken out of circulation immediately.

What is the minimum grade of chain required for chain slings?

Steel chain slings are regulated under the MIOSHA Part 49 Slings. Only alloy steel chain, grade 80 or 100 is to be used for overhead lifting.

What if a sling is missing a tag?

If during the course of a chain sling inspection, the user notes that the tag or identification is damaged, missing, or illegible, the alloy chain sling shall be removed from service. A replacement sling tag is considered a repair, however additional proof testing is NOT required if the tag is replaced.

Who can inspect lifting slings?

Under the Lifting Operations and Lifting Equipment Regulations 1998 (LOLER), lifting equipment inspections should be carried out by competent persons. A competent person is someone who has the right experience and knowledge to thoroughly understand what they are looking for.

How should chains be stored?

Store chains in a dry place away from vehicle traffic – chains should never be left where they can be run over by trucks or other equipment. Store them on racks where air can circulate around the chains to keep them dry. Refrain from lifting heavy chains manually, NSC states. Instead, use machinery.

How do you calculate chain sling capacity?

To calculate the SWL of a sling needed to lift a load, divide the load by the angle factor and divide by the reeve factor. For example: Two slings have a 60° angle between them and are both reeved around a 4 tonne square load. This means a factor of 1.73 for the angle and 0.5 for the reeve.

How do you lift slings?

Always inspect the sling for damage before use. …
Make sure you have chosen the right lifting sling for the job ahead. …
Do not exceed the working load limit of the lifting sling. …
Ensure the load is secured. …
Make sure the lifting point is directly above the centre of gravity.

What is the difference between a rigger and slinger?

Rigging is the process of lifting and moving objects. Slinging is the name for the materials used to connect the load to the crane or any other type of lifting device.

What size shackle should be used with wire rope?

Rule 5: When using a shackle with wire rope, the shackle must be equal to or larger than the wire rope diameter.

How do you measure a wire rope sling?

To measure yourself, the actual diameter of a wire rope is the diameter of a circumscribed circle that will enclose all the strands. It’s the largest cross-sectional measurement as shown here. You should make the measurement carefully with calipers, preferably digital.

How do you store chain slings?

They should be dry, clean and protected from corrosion. Store chain slings on a rack and not lying on the ground. The storage area should be dry, clean and free of any contaminates which may harm the sling. Do not alter, modify or repair a chain sling but refer it to a Competent Person.

What should be inspected on a chain sling before the technician uses it?

Inspect the slings and accessories before use for any defects. Replace broken safety latches. Find out the working load limit (WLL) before lifting. Do not exceed the rated load of the sling.

What are chain slings?

Chain Slings are one of the most durable and robust types of rigging available. It is not uncommon to inspect chain slings that have been in service up to 40 years. … Up to a few years ago the most common grade of alloy lifting chain used for crane chain slings was grade 80.

Do general requirements apply to slings?

General requirements do not apply to slings used in conjunction with other material handling equipment for the movement of material by hosting.
