How do you use a dead center on a lathe

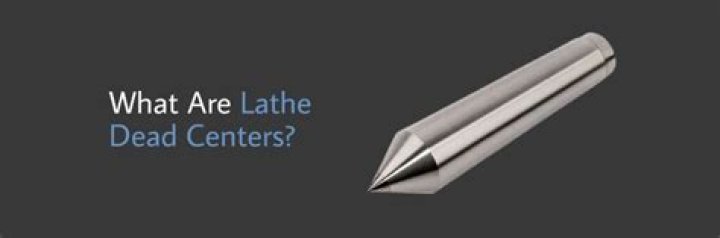

To put it simply a dead center is just that – dead. It has no moving parts. It is really nothing more than a metal shaft with a point. A live center is similar, but the shaft has a bearing that allows it to turn.

What's the difference between a live center and a dead center?

To put it simply a dead center is just that – dead. It has no moving parts. It is really nothing more than a metal shaft with a point. A live center is similar, but the shaft has a bearing that allows it to turn.

Which part of the lathe machine is called dead center?

Tail stock. Generally, it is situated on the right side of the Lathe machine. It supports the one end of the workpiece when it is too long. As it does not carry any moving parts, it is called the dead center.

What is a half dead center used for?

Half dead centers have a large cut out removing most of the point. They’re typically used for additional wheel clearance when grinding small parts whose diameter is less than that of the dead center. The cut away section provides clearance so the grinding wheel can advance to the part without hitting the center.

Why dead center is important in lathe machine?

Dead center (and live center) When used in the fixed position, a dead center produces friction between the workpiece and center, due to the rotation of the workpiece. Lubrication is therefore required between the center and workpiece to prevent friction welding from occurring.

What is a lathe steady rest?

A steady rest is basically a heavy and rigid ring afixed to the bedways of a lathe or turning center, which ring is equipped with jaws to support the work piece. Jaws are usually thee in number, though less commonly four, five, or even six are employed.

What is Live Center and dead center of the lathe?

a live center has internal bearings and the conical contact surface rotates with the workpiece. A dead center is just a stationary point, with rubbing contact between the cone and the workpiece.

What is the included angle of the life Centre nose?

In construction, both centres are identical, made as one unit that consists of a conical point of 60° included angle, a body provided with a Morse taper shank and a tang.

What is a half Centre?

The job of the centre-back, (or central defender) (historically called a centre-half) is to stop opposing players, particularly the strikers, from scoring, and to bring the ball out from their penalty area. As their name suggests, they play in a central position. … The position is sometimes referred to as “centre-half”.

How do you center a workpiece on a lathe machine?

Centering a workpiece with a punch mark of center in it The workpiece is fitted in the chuck. It is align as well as possible by eye. The rod is then fitted into the mark or center in the workpiece at the workpiece end and onto a center mounted in the tailstock. The DTI is set so it touches the rod near the workpiece.

Article first time published on

What is a center lathe machine?

The Centre Lathe is used to manufacture cylindrical shapes from a range of materials including; steels and plastics. … This type of lathe is controlled by a person turning the various handles on the top slide and cross slide in order to make a product / part.

How is an angle turned on a Centre lathe?

When turning a short taper the topslide is set a the required angle. This is normally done by loosening two small allen screws and then rotating the topslide to the angle and tightening back up the two allen screws. When the chuck is rotating the topslide handle can be rotated slowly by hand in a clockwise direction.

How is center lathe specified?

A Lathe is generally specified by: Swing- the largest work diameter that can be swung for the lathe bed. The distance between the headstock and tailstock center. Length of the bed in a meter. The pitch of the lead screw.

How many centers are in a lathe machine?

Explanation: Most commonly two types of centres are there in lathe : live and dead centres. 2. Which of the following is not the type of centre in lathe? Explanation: Only live centre and dead centre are there in lathe.

What is the most common cutting tool for the lathe?

The types of cutting tools we’ll focus here is on milling and lathe cutting tools, including end mills, drills, and taps. End Mills are the most common cutting tools for CNC and manual mills and are generally used for machining the sides and faces of a workpiece.

Where is the live center of a lathe?

Most lathes have a Morse taper socket in the headstock, and a smaller one in the tailstock. When you’re turning between centers, the chuck is off and the dead center is in the headstock, while the live center is in the tailstock. A dead center is a solid lump of hardened and ground steel with a point on the short end.

What are the attachments used on a center lathe and what purpose do they serve?

4) Grinding attachment Such attachments are employed for external and internal cylindrical grinding, finishing grooves, splines etc. and also for finish grinding of screw threads in centre lathe. But unlike dedicated machines, attachments cannot provide high accuracy and finish.

In which type of lathe Centre the hard tip is wear resistant?

The hard tip is wear resistant in case of tipped centre. For tipped centres, a tip tool is there which is made of separate material clamped on separate body.

What are the machining operations usually done in Centre lathe?

The variation of tool ends and a kinematic relation between the tool and workpiece results in different operations on a lathe. The most common lathe operations are turning, facing, grooving, parting, threading, drilling, boring, knurling, and tapping.

How do you find the center of a shaft?

Use a Forstner or brad point drill bit the same size as the rod. The point at the center will be reliably dead center. Place the rod and drill bit on a hard flat surface, and with the point of the bit scribe a couple of lines on the rod end. Where the lines intersect will be the center.

What does the tool post do on a Centre lathe?

A tool post is the part on a lathe that holds the cutting tool securely during machining operations. The post then bolts onto the compound rest via a conventional hex or Allen head bolt or a quick release locking mechanism.

What direction should a metal lathe turn?

Spindle direction on lathes is often referred to as M03, clockwise (CW) and M04 counter clockwise (CCW). Of course, this depends on the location from which you are viewing the spindle. Standing at the wrong end of the machine could allow you to inaccurately label the direction.
