How do you wire a speaker crossover

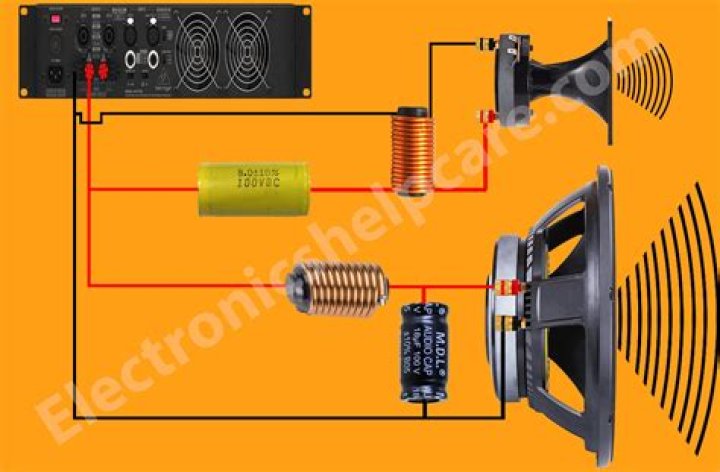

They each go between your amplifier and a speaker and do not require a power connection, a turn-on lead, or grounding. You connect the speaker wire coming from your amp to the crossover’s input. Then the tweeter gets wired to the tweeter output, and the woofer to the woofer output. That’s it.

Does a crossover go before or after the amp?

An active, or electronic crossover goes between the receiver and the amp. It handles low-level preamp signals with its solid-state circuitry to cleanly divide the signal and send each band of frequencies in the right direction.

How do you set up a crossover?

Set the crossover point 10 Hz higher than the low end of your speaker’s tolerance range. If you don’t know the frequency range of your speaker, use a subwoofer matching tool. Listen for smooth transitioning between the subwoofer and the speakers. The blending should sound clean and seamless.

What is the purpose of a crossover circuit for speaker?

A crossover serves as a filter that blocks out unwanted frequencies to a speaker or group of speakers. This is extremely useful because it allows us to specifically send each speaker the group of frequencies that it will play most efficiently and effectively.

What should crossover be set at?

The recommended crossover frequency is 56-60 Hz (high pass). At this frequency, low-end bass, which can cause distortion, is filtered out. This crossover is the perfect middle ground between midrange bass capability and full-range sounds.

Does a crossover improve sound quality?

For instance, very basic systems that use coaxial speakers actually have small crossovers built right into the speakers. … By making sure that only the right frequencies reach the right speakers, you can effectively reduce distortion and help improve the overall sound quality of a car audio system.

How do I make my crossover active?

Active crossovers split the incoming complex audio signal into to two bands, a low frequency out and a high frequency out. These two bands a separately amplified by two power amplifier stages, one tuned to the low frequency band and the other tuned to high frequency stage respectively (bi-amping).

What does a resistor do in a crossover?

In a crossover network, resistors are usually used in combination with other components to control either impedance magnitudes or the relative levels between different drivers in a system.

How do you connect an amp to a crossover?

They each go between your amplifier and a speaker and do not require a power connection, a turn-on lead, or grounding. You connect the speaker wire coming from your amp to the crossover’s input. Then the tweeter gets wired to the tweeter output, and the woofer to the woofer output. That’s it.

How do you determine crossover frequency?

Look at your speaker’s specification sheet only to find the details for the frequency response. It will look like “32-10,000Hz” or other numbers within that range. Go to your receiver’s setup menu with the remote to find the part of the menu that highlights the size of your speaker and crossover point.

Article first time published on

What is a speaker crossover frequency?

The crossover frequency is the frequency at which sound transitions from one speaker to another. … The crossover frequency for each speaker is generally set in the AV receiver by a processor, which filters low frequency content away from the speaker channels and redirects it to the subwoofer channel.

What is crossover circuit?

Audio crossover is an electronic filter used in audio applications to send the appropriate signal to the speakers or drivers. … Crossover circuit splits the audio signal into the different frequency band that can be routed separately to the speakers.

What is audio crossover circuit?

Audio crossovers are a type of electronic filter circuitry that splits an audio signal into two or more frequency ranges, so that the signals can be sent to loudspeaker drivers that are designed to operate within different frequency ranges.

Does a woofer need a crossover?

Every audio system, including the one in your car, needs a crossover to direct sound to the correct driver. Tweeters, woofers and subs should get high, mid and low frequencies respectively. Every full-range speaker has a crossover network inside.

Can you run tweeters off an amp?

Here’s the short answer: You cannot use tweeters on a monoblock (bass-only) amp or a subwoofer output channel using a low-pass crossover. You can use tweeters with unused amplifier outputs (channels) that are full-range.

Can a speaker crossover cause distortion?

The loudspeaker crossover can be considered the brain of the loudspeaker. … A loudspeaker system without a properly designed crossover (or none at all) can cause too much frequency overlap between drivers which can increase distortion and degrade overall sound quality.

What goes first EQ or crossover?

What goes first EQ or crossover? Equalizer vs crossover differences. When using both an equalizer and a crossover the equalizer is connected before the crossover.

How do you hook up two amps to one speaker?

You cannot hook two amps to a single set of speaker terminals because the amps will see each other and usually blow up, blow fuses, or go into protection. If you speakers have biwire terminals and you remove the jumpers then you can safely hook up an amp to each pair of terminals.

How does a 2-way crossover work?

Description. A crossover is the name given to a circuit that splits an audio signal into separate frequency bands. This allows different frequency bands of the output from an amplifier to be sent to different speakers instead of all being sent to one speaker.

What is a 2-way speaker crossover?

The term, 2-way, indicates that the audio signal is separated into two frequency bands: low-mid and high. The low-mid frequencies are sent to the woofer, while the high frequencies are sent to the tweeter, using a crossover.

What is a two way crossover?

A crossover is an electronics device that takes a single input signal and creates two or three output signals consisting of separated bands of high-, mid-, and low-range frequencies. … For instance, if your home stereo uses a pair of 2-way bookshelf speakers, it uses 2-way crossovers (inside the speaker boxes).

Do resistors affect sound?

Capacitors and resistors do not affect sound. They can, and do, affect electrical signals representing sound. Together they form frequency-sensitive circuits that can block or boost high, low or a band of frequencies, and as such are known generally as filters. There are literally hundreds of different kinds.

What does a resistor do in a speaker?

Adding a resistor in series will make a voltage divider (see Transistor’s answer for schematic), and the voltage on your speaker will depend on its frequency-dependent impedance. This means the frequency response of the speaker will change.

What does a resistor do in an audio circuit?

A resistor is a passive two-terminal electrical component that implements electrical resistance as a circuit element. In electronic circuits, resistors are used to reduce current flow, adjust signal levels, to divide voltages, bias active elements, and terminate transmission lines, among other uses.

Can you use a multimeter to set amp gain?

Adjust the amplifier’s gain knob, while keeping an eye on the multimeter. When the multimeter reads the desired AC output voltage reading (which you found through the math equation), stop adjusting the gain knob. The amplifier’s gain is now correctly set.

What is the best Hz for speakers?

What frequency response is good for speakers? The preferred frequency response for speakers is 20 Hz to 20 kHz. The human audio spectrum ranges from 20 Hz to 20 kHz. Speakers should be able to produce sounds in this range.

What db level should I set my speakers to?

Generally, the best level to set your speakers to is 75 dB. Anything over this is likely to cause a disturbance or harm your ears if you get too close to the speakers. The most reliable way to check the levels of your speakers is by using a device known as an SPL meter.
