How does a 24 volt transformer work

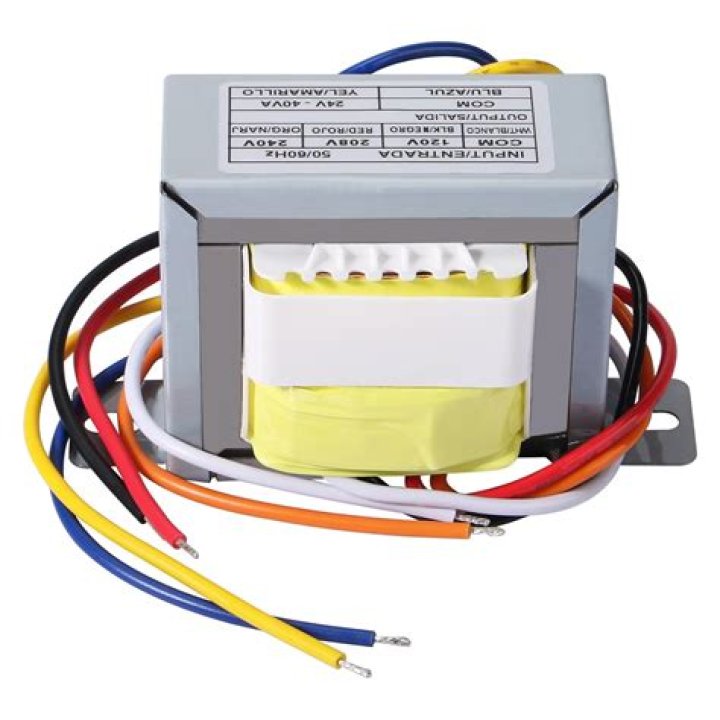

A 24 VAC (volt alternating current) transformer is a step-down type of transformer. The device typically converts 120 VAC to a lower voltage for use in push buttons. … The lower voltage is sent to the push button to engage the chime mechanism.

What is the common side of a 24v transformer?

There are two sides to the 24-volt transformer: A high side and a secondary – or low-voltage – side. The high side is the line-voltage of the transformer and the electrical connection to the feeding voltage, generally a 120-VAC power. The secondary or low-voltage side is the power that is transformed into 24 volts.

Does 24VAC have neutral?

When you get a transformer 24VAC 40VA from the wholesaler it has three wires on the primary side: line, neutral and ground but you only have two wires on the secondary (24VAC) side. … This also gives an electrical path to ground, which is always a good thing.

Does a 24v transformer have to be grounded?

that the secondaries of all transformers that supply 24 VAC be grounded. IF a grounded secondary is mandated, ground the common (–) wire from the transformer to an equipment grounding screw in the equipment enclosure. If more than one controller is powered from the transformer, ground both at the same ground screw.

What color is common on 24v transformer?

Here are common uses for wire colors: Blue or Black – C – Common wire, may be unused by your existing thermostat. Enables continuous power flow from the Red wire. Red – R – 24VAC power from the furnace’s transformer.

Do you have to ground the secondary side of a transformer?

Secondary Winding In terms of grounding, this means that the secondary output must be grounded, since it is another isolated part of the circuit. Any wiring failure downstream from the transformer must have a way to re-enter the circuit briefly in order to trip that circuit protection device.

Why do you ground the secondary side of a transformer?

The secondary side neutral is grounded so that when an active conductor has a fault that brings it into contact with “earth” (e.g. it touches its metallic enclosure which is earthed), then there is a low resistance return path to the neutral – so that the fault current is sufficiently great the ensure it quickly trips …

How do you measure 24VAC?

1. Select the AC voltage option, and if the multimeter supports it, the voltage range. …
2. Ensure the red probe is plugged into the ‘V/Ohms/mA’ socket. …
3. Measure the voltage between two conductors by touching a probe on each.

How many amps does a 24 volt transformer use?

40 Watts / 24 Volts = 1.66 Amps. This 1.66 Amps is the amount of current that can safely be drawn on the 24volt R or C control circuit wire.

Can I use 24VAC for 24VDC?

24 volt AC/DC converters with 19 to 28 VAC input. These are also known as 24 volt rectifiers, and voltage regulators. … They can be used whenever 24VAC power is available and 24VDC power is needed, up to 60 watts.

Article first time published on

Why does my AC keep blowing in my transformer?

What causes a furnace transformer to blow? … Wiring problems: if there are loose cables or wires inside your transformer, they may cause a short circuit, frying the transformer. Power surges: similarly, a power surge may also cause your transformer to blow, resulting in problems with the entire unit.

What does 24V AC mean?

24 VAC is commonly used as a control voltage not only because of safety, but also AC is used over DC because it is easier for a relay or switch to “break” contact, and there is less arcing of the contacts. It also eliminates the need for the rectifier. 24 Volts DC has become preferred in some cases.

Is 24VAC the same as 12VDC?

24VAC can run longer distances than 12VDC. It isn’t because of the alternating current, but because of the 24V. To supply 24 Watts will require 1 amp at 24VAC and 2 amps at 12V. The voltage drop in a wire is proportional the amps only.

What is the blue wire on a transformer?

Power TransformersPrimary LeadsBlackPlate LeadBlueB+ LeadRedGrid (or diode) LeadGreen

Why is there a jumper between R and RC?

Effectively there isn’t a second RH wire, although there is an RH terminal. However, the heating still needs to be controlled, so a wire known as a jumper is connected between the RC and the RH terminals so that power gets to the heating control part of the thermostat.

What color is the C wire?

Blue wires are also called “C” wires because they are the Common wire. C wires are necessary for any “smart” thermostat that needs to be connected to a power source 24/7, regardless of your heat pump type.

What is 24vdc power supply?

24 volt DC power supplies These circuits are built into devices like computers and televisions that need 24 volts of DC but have access to the 120 AC that comes from the wall.

How do I get 24V from 12v power supply?

In order to get 24v from a 12v supply, you’ll need a “DC-DC converter”, also called a “boost” or “step-up” converter. A DC-DC converter or boost converter has a chopper circuit (oscillator) that provides current to an inductor via a diode. The current flows for a bit, and then is cut off.

What uses a 24 volt power supply?

The linear 24V Power Supply is still popular in audio, lighting and sensor applications. Switching 24 Volt Power Supplies are widely used in medical, communication, automation and other OEM designs where size, portability of equipment, low heat and intrinsically fail-Safe operation is desired.

What happens if you don't ground a transformer?

There is no return circuit to earth and therefore nothing can flow through you to earth and back to the transformer to cause a shock. One may therefore safely touch EITHER output lead and not receive a shock as there is no earth reference. However touching BOTH output leads simultaneously will give one a shock.

Do you bond the neutral in a transformer?

Transformers or other separately derived systems [250.30(A)]. To provide the low-impedance path necessary to clear a ground fault from the separately derived system, you must bond the metal parts of electrical equipment to the grounded (neutral) terminal (XO) of the derived system.

What does XO mean on a transformer?

With XO grounded, the transformer acts as a ground source for the secondary system. Fundamental and harmonic frequency zero-sequence currents in the secondary lines supplied by the transformer do not flow in the primary lines. Instead the zero sequence currents circulate in the closed delta primary windings.

Can you charge a 24 volt system with a 12 volt charger?

You cannot use the 12V charger directly to charge a 24V battery. To do the task you will need a boost converter capable of generating output voltage greater than 24V. Boost converters step up the voltage, keeping the input and output power constant.

How do you make 2 24 volt batteries?

There will be 24 volts (about 28 volts with an alternator) if two 12-volt batteries are wired together in series: Connect the positive terminal of one battery to the negative terminal of the other battery. Voltage doubles, but amps stay the same.

How is a transformer grounded?

The grounding point of the transformer may be connected through a resistor or arc suppression coil to limit the fault current on the system in the event of a line-to-ground fault.

Which side of the 24 volt control system is often grounded?

secondary winding connects directly to one side of every 24 volt coil. This is often called the “common” side of the sec- ondary because everything is connected to it, Figure 41-2. Many newer systems also ground the “common” side of 24 volts to the cabinet, Figure 41-2.

How does a 120 to 24 volt transformer work?

A 120V transformer with 24V out rated at 2 amps means that you can only safely pull 2 amps from the secondary side. You can find the power rating of the transformer by multiplying the rated amps times the output voltage so 2 X 24 = 48 watts.

How many watts does a 24V transformer use?

That’s 240 watts at 24 volts. The current will be 240w/24 or 10 amps. A transformer can pretty much be considered a straight ratio with regard to voltage and current on either side of it.

What do numbers on transformer mean?

On transformers, the H represents the higher voltage or primary side of the transformer, whereas the X is the lower voltage or secondary side of the transformer. The numbers after the letter represent the option of connection for desired output voltage on multi-tapped transformers.

How does a voltage tester work?

A built-in sensor at the tip of the tester detects the presence of voltage when touching a conductor, outlet, or supply cord. By holding the tool, you are the ground reference through capacitive coupling. When the tip glows red and the unit beeps, you know voltage is present.

How do I test a 24vac with a multimeter?

Always choose the smallest range that’s higher than the highest voltage you are expecting to measure. For example, if you are going to measure 24V then on our meter you would select the 200V range (because the 24V we want to check is higher than the next lower range which is 20V).
