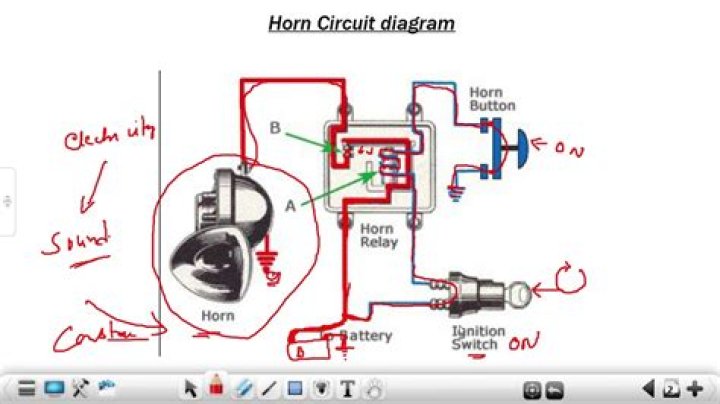

How does a car horn work diagram

Car horns work on the principle of a vibrating metal diaphragm. They are all electrically driven and consist of a solenoid (electromagnet) and a thin metal disc made of spring steel. … Once the disc springs back into its original shape, the electrical contacts close once again allowing current flow into the solenoid.

How does a car horn work?

Car horns work on the principle of a vibrating metal diaphragm. They are all electrically driven and consist of a solenoid (electromagnet) and a thin metal disc made of spring steel. … Once the disc springs back into its original shape, the electrical contacts close once again allowing current flow into the solenoid.

What causes a car horn to stop working?

Car horns sit up front where they’re exposed to rain and road chemicals. … But an inoperative horn can also be caused by a bad horn switch in your steering wheel, a broken “clock spring” under the steering wheel, a bum horn relay, a broken wire or a corroded ground.

Where does the sound of a car horn come from?

Horns are designed a little differently these days, but the principle is the same: Electrical current flows through a copper coil in the horn, making a magnetic field. The field makes a flat, circular diaphragm inside the horn oscillate, and the oscillation makes the horn’s sound.

What pitch is a car horn?

Car horns emit a specific pitch—most likely an F—that can be written down as a musical note. Listen to these vintage horn sounds! But if that other driver is steering an older-model vehicle, he might be trying to get your attention with a C-sharp note. That’s because car horns have evolved through the years.

What is inside a car horn?

A typical car horn consists of a flexible metal diaphram (usually made of spring steel), a coil of wire that forms an electromagnet, a switch and a housing that functions somewhat like a megaphone.

Do horns run out of honk?

Do car horns ever run out of honk? Yes, they can. Not due to running out of any type of fluid, but due to electrical issues. Whether it is the wiring harness or the connectors are corroded, usually, the issue is electrical in nature.

How do horns sound?

There are two horns per vehicle, usually, each sounding at a different pitch to produce a chord. When you close the circuit by pressing the horn button the electrical current surging into the horn creates a magnetic field. This field causes the flat, circular diaphragm inside to oscillate, making the noise.

How does a horn relay work?

The horn relay switches a large current to the horns at a signal from the low-current horn button in the steering wheel. … A simple SPST relay will have a constant supply of 12 volts to it, a lead that runs through the harness to the horn, another lead that runs to the horn switch in the wheel, and a ground.

How far away can a car horn be heard?

Explanation All vehicles must have a horn that can be heard from 200 feet away. Sirens, whistles, and bells are allowed only on authorized emergency vehicles.

Article first time published on

How do horns amplify sound?

Speaking horns increase sound volume because they match the acoustic impedance of outgoing sounds to the surrounding air [20], and hearing horns amplify sounds when waves are reflected into a progressively narrower area, thereby increasing the sound pressure that reaches the ear [21,22].

Is it illegal to drive with a broken car horn?

Technically yes, as it’s a safety hazard to not have a working horn, but of course there’s a very slim chance that police passing you on the road could have reason to suspect that you’re driving without a functional horn.

Why does my horn sound like it's dying?

But an inoperative car horn can also be caused by a bad horn switch in your steering wheel, a broken “clock spring” under the steering wheel, a bum horn relay, a broken wire, or a corroded ground. … Clean the horn’s ground connection and try powering the horn again. If the horn still clicks, you’ll have to replace it.

What wire do I use for car horn?

Use 14-gauge primary wire.

How do electric trumpet horns work?

Some trumpet-style horns are electric—they have spring-steel diaphragms that vibrate rapidly at the behest of electromagnets, thereby generating sound. Some other, typically more powerful horns are air-actuated—their diaphragms vibrate at the behest of air pressure produced by electric compressors.

What does honk spell?

1 : to make the characteristic cry of a goose. 2 : to make a sound resembling the cry of a goose. transitive verb. : to cause to honk honk a horn.

What is hooting of a vehicle?

1 verb If you hoot the horn on a vehicle or if it hoots, it makes a loud noise on one note.

What key does a car horn honk?

Most American car horns honk in the key of F. The same grade as the NY Giants coaching staff.

Does honking use gas?

Normally no. The horn in most cars is electric, and as long as there is power, the horn will work.

Can a car horn overheat?

If you were to just honk the horn continuously the horn coil winding will overheat and the horn will quit working eventually long before you run down the battery. The term is called intermittent duty and the makers of your horn design the horn to be operated normally which does not include honking forever.

Why are car horns so loud?

Squeezing the bulb forces air through a steel reed located in the throat of the horn, making it vibrate, producing a single note. The flaring horn matches the acoustic impedance of the reed to the open air, radiating the sound waves efficiently, making the sound louder.

How loud can my car horn be?

The maximum legal decibel level for a car horn on a passenger vehicle is 100-110. A train horn has a decibel level of 130-150. … All states have a line in their vehicle laws and regulations that states a car horn can not emit an unreasonably loud or harsh sound.

What is the sound of horn called?

Out of the way! A honk is a noise made by a goose or a car horn. A goose’s honk can be a greeting or warning, which is also true of a car horn’s honk.

How do you check a horn with a multimeter?

Test the relay switch – Remove the relay and set your digital multimeter to the Ohms setting. Touch one meter lead to the switch relay socket and the other to the battery negative post. Have another person push the horn button to test the reading.

Where is the horn relay switch located?

Your horn relay is located in your T.I.P.M. (Totally Integrated Power Module). This is located UNDER your fuse box. In order to access it you would need to unclip your fuse box and then remove ALL fuses from the box to access the circuit board that your relays are soldered on.

Does horn work without battery?

The majority of car horns are electric. They might sound strange with a low battery but they will still work . If the connection is bad it will not work and the connection needs to be cleaned.

What does the S in smog mean?

SMOG is an acronym for “Signal, Mirror, Over the Shoulder and Go“–which are the steps you’ll follow to put the model into practice.

Why do I hear trains at night?

At night, the air near the ground can have a different temperature than air only a few hundred feet above1. This affects the transmission of sound waves. There is usually less ambient noise after dark, so the distant train sounds louder. As pointed out elsewhere, maybe the trains don’t use the horn in daytime.

What should you do if your vehicle plunges into deep water?

1. Open the window as fast as possible. …
2. Sit still with your seat belt on. …
3. Do not try to open the door yet. …
4. Once out of the car, let your body take you up.

Why are horns flared?

The flare or bell acts as an impedance matching device between the column of air in the tube and the open air, maximizing energy transmitted to the air. If that bell wasn’t there, the instrument wouldn’t be very loud. Think about early phonographs which had huge morning glory sound horns to amplify the sound.

How does a horn speaker work?

By using a flared transmission channel (a horn) the effective radiating area of the source of sound can be increased to that of the mouth, thus creating greater air coupling (louder sound). Because of the gradual change of the diameter of a horn, the source of sound at the throat engages all the air in a horn.
