How does a mechanical interlock work

Mechanically interlocked circuit breakers are intended to prohibit both power sources from being simultaneously connected to the load. The interlocking system disables one circuit breaker by mechanically preventing handle movement from the Off position while the other circuit breaker is in the On position.

What does a mechanical interlock prevent?

In most applications, an interlock is used to help prevent a machine from harming its operator or damaging itself by preventing one element from changing state due to the state of another element, and vice versa.

What is electromechanical interlock?

The electro-mechanical interlock locks the switch in any switching position. The interlock device is operated by energizing or de-energizing the electro-mechanical system. Adding auxiliary contacts to the switch permits the device to be operated in pre-determined positions. The interlock is activated by energizing or.

What is mechanical interlock switch?

Mechanical safety interlock switches couple a moveable guard door with the power source of the hazard. When the guard door is opened, the power is isolated, ensuring that the machine does not pose a hazard while an operator requires access. … Attempts to override the switch and defeat the system must be prevented.

What is a mechanically interlocked contactor?

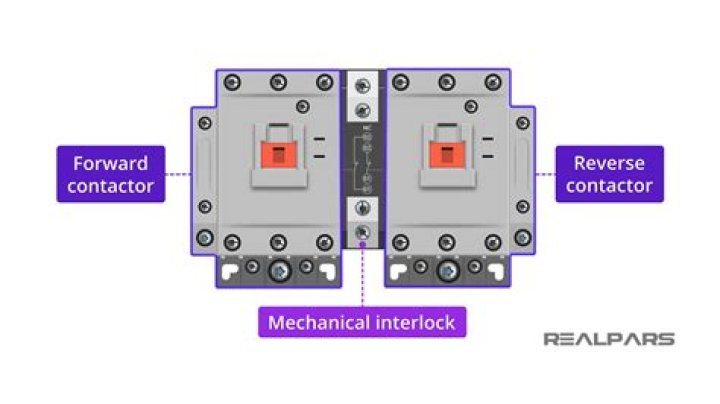

Mechanical Interlock General: Type S contactors or starters can be mechanically interlocked so that only one device is energized at a time. The mechanical interlock is an interference (non-jamming) type, locking at the beginning of the stroke of any starter or contactor.

What is the purpose of interlocks?

According to this definition, an “interlocking device” or “interlock” is a “mechanical, electrical or other type of device, the purpose of which is to prevent the operation of hazardous machine functions under specified conditions” (generally as long as the guard has not closed).

What are the three types of interlock?

There are three types of interlocks: – mechanical, – electrical, – logical.

What is interlock process?

Process Interlock : Something that prevents incorrect operation or possible damage to the process or equipment. Safety Interlock : Something that prevents possible damage or death to people operating that process or equipment.

How does an interlock relay work?

A relay composed of two or more coils, each with its own armature and associated contacts, so arranged that movement of one armature or the energizing of its coil is dependent on the position of the other armature.

What are safety interlocks?

Safety interlock switches are used as interlock devices that can prevent machine operation or startup in an unsafe situation, such as when a door or guard is open. Interlock devices with a locking function can also prevent doors or guards from being opened while the machine is in operation.

Article first time published on

What are the types of interlocking?

• Mechanical interlocking.
• Electro-mechanical interlocking.
• Relay interlocking.
• Electronic interlocking.

What is the purpose of interlocks in a reversing starter?

Forward / reverse starters must never close their power contacts simultaneously. The best way to provide this is through electrical interlocks, which prevent the one coil from being energized if the other is engaged. A failure in electrical interlocking can cause both coils to be energized at the same time.

How do you interlock two contactors?

Contactor Interlocking Wiring Diagram Now connect the A2 terminal of both contactors with neutral as shown in the below figure. Take a connection from the ‘R’ Phase and connect S1, S2, S3 as shown in the below figure. Connect the A1 terminal of contactor 2 to the S3 switch through NC contacts of contactor 1.

How does reverse contactor work?

To reverse a 3-phase motor using contactors, you just run one set of wires straight through one contactor, and a parallel set of wires through another contactor where you swap one set of wires. When this contactor is engaged, the motor turns one way, and when this contactor is engaged it rotates the other direction.

What would happen if both contactors were energized at the same time?

What can happen if both coils are energized at the same time? The mechanical interlock only allows one armature to pull in which causes the other coil to draw a current of 4 to 10 times higher than it’s pulled-in value. This causes the coil to burn out. … Between the operating coils of the contactors and L2.

What is hardwired interlock?

Hard Wired Interlock is an interlock accomplished by electro-relays and/or wires that is not accomplished through a Programmable Electronic System. ( Refers to the Software Interlock)

What is interlock driveway?

Interlock driveways create a unique, beautiful entrance to a home; much more eye-catching than traditional asphalt. The most affordable material used for interlock driveways is concrete pavers. … Concrete pavers also have the advantage of being available in a wide variety of colors, textures and patterns.

What is difference between interlock and trip?

An interlock may prevent an action until another action has occurred or may cause another action to happen automatically. Trips are for protection circuits.

What is the difference between an Interlock and a permissive?

A Permissive is something that must take place BEFORE another action or sequence of actions can be undertaken. An Interlock is something that takes place as a RESULT of or as PART of another another action or sequence.

What does permissive mean in electrical?

Permissive: A Permissive is a patricular type of Interlock used to prevent actions taking place until pre-defined criteria have been satisfied, for example prevents a pump starting until the suction valve is open.

Why is interlocking dreads bad?

Interlocking can lead to irreversible problems such as dreadlocks thinning out and even breaking off, residue buildup at the interlocked location. Also, it often leaves the dreadlock in a “braided” or “large knot” that can split the roots and prevent the dreadlock from forming properly.

Can you interlock comb coils?

Braid Locs are ideal for those that sweat a lot in their scalp or that wish to maintain their locs with interlocking. Comb Coils – To start locs with comb coils, you only need about 2-3 inches of hair of any texture. … Locs maintained through interlocking often shrink in size after maturing.

Can you unlock interlock dreads?

Removing Dreadlocks in hair that has been interlocked from root to tip is almost always the easiest to comb out. … In some cases all you have to do is cut the last inch of the dreadlock and the rest will come out with ease.

What is better interlock or transfer switch?

Interlock switches are usually less sophisticated and therefore less expensive than automatic transfer switches. They require training and an understanding of the building’s electrical system for safe use.

Where are interlock switches found?

Manufacturing and industrial environments use interlock switches in machinery of all types. Interlock switches are also used in the domestic environment, in devices such as automated gates or slam-lock doors.

What is CBI system?

CBI stands for Continuous Business Improvement and covers all the organisation’s improvement projects. It could be lean, quality or strategy execution projects. The CBI System is about managing the organisation’s improvement processes and specific improvement projects.

What is panel interlocking?

Panel Interlocking (PI) is the system used in most medium-sized stations on IR. In this, the points and signals are worked by individual switches that control them. Route Relay Interlocking (RRI) is the system used in large and busy stations that have to handle high volumes of train movements.

Why is it necessary to interlock the star and delta contactors?

A normally close auxiliary contact from both star and delta contactors (5&6)are also placed opposite of both star and delta contactor coils, these interlock contacts serves as safety switches to prevent simultaneous activation of both star and delta contactor coils, so that one cannot be activated without the other …

What is the difference between relay and contactor?

Control Relay: It is a device through which contacts in one circuit are operated by an alteration in conditions in the same circuit or in associated circuits. Contactor: It is a device which is used for repeatedly establishing and interrupting an electric circuit under normal conditions.

How do you make a electric motor go forward and reverse?

Remove power from the motor. Hook the battery positive wire to the negative terminal and hook the battery negative wire to the positive terminal for a simple DC motor. Install a double pole double throw changeover switch between the battery and the motor. The motor will now have a forward, reverse and an off position.

What is auxiliary contactor?

Basically, an auxiliary contactor is a regular (low-power) relay – but built like a “regular” contactor and when used together with another contactor it is called auxiliary contactor to clarify that it is not used for switching loads but has an activation/deactivation or control function instead – used to connect/ …
