How does a safe T switch work

Safe T Switch detects clogged A/C

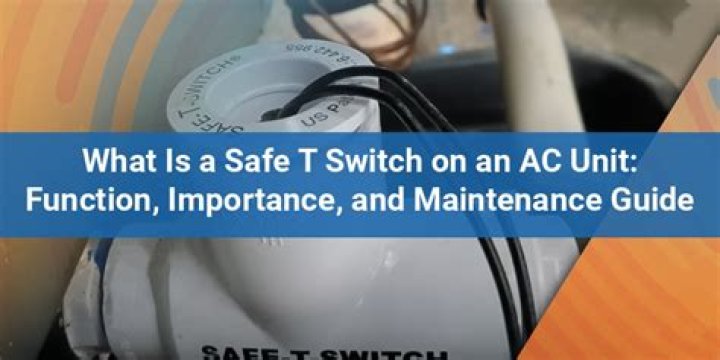

How does a safe T switch SS2 work?

The Safe-T-Switch® Model SS2 detects down stream clogs in condensate drains and interrupts the thermostat circuit to shut off the unit before flooding occurs. The Model SS2 is designed for installation on auxiliary drain pan outlets – usually on primary condensate drain pans.

How do float switches work?

A float switch works to detect the level of liquid in a tank by using a float, magnet, and reed switch system that automatically opens and closes when water levels rise and fall inside the tank. … Once the dry contacts are opened or closed, they will send an electrical signal to set off a water level alarm.

Should my exterior AC drain pipe be dripping water?

Under normal conditions, the exterior AC condensate drain pipe should only drip water or produce condensation while the air conditioner is turned on. The small puddle of water this process creates should dry up quickly in warm weather.

Why does my AC float switch keeps tripping?

If your AC float switch keeps tripping, you probably have an AC drain pan that’s full. You’ll need to empty the water, and with the right tools, you can do this yourself. … A technician can diagnose water coming from a frozen coil or a clog in the drain.

Where does the refrigerant go when it leaves the evaporator?

The refrigerant boils in the evaporator at a constant low pressure and temperature. Heat is removed from the fluid being cooled. After leaving the evaporator, the vaporized refrigerant flows through the compressor.

How do you reset an air conditioner safety switch?

1. Step One—Turn Off Unit. The first step is to power down your air conditioner. …
2. Step Two—Find the Circuit Breaker Box. …
3. Step Three—Wait It Out. …
4. Step Four—Switch Unit Back On. …
5. Step Five—Confirm It’s Working.

How much water should come out of AC drain line?

It’s completely normal for your AC to drain 5-20 gallons of water outside of your home (via the condensate drain). It’s NOT normal for your AC to drain any amount of water inside your home (around your indoor AC unit).

Why are AC pipes sweating?

Pipe sweating occurs because cold air holds less water vapor than warm air. When a cold pipe touches the hot, moist air around it, the temperature around the pipe drops and the air reaches its dew point. This causes the water vapor in the air to become a liquid and collect on the side of the pipe.

Do float switches fail?

While these switches are very reliable for industrial applications, they can fail. … As with any piece of equipment, a float switch will have a limited operating life. However, if the switch is used properly and maintained, there is no reason that it should not last for many years.

Article first time published on

How do you test a float switch?

Attach the MultiMeter leads to the float switch wires. The Multimeter should be set to the Ohms. The MultiMeter should read zero when the float hangs in the down position. Lifting the float will change the zero to one.

How do you adjust a float switch?

1. Step 1: Define Your Low Point. You should start with the lowest point because you never want the level to go below the required Net Positive Suction Head (NPSH) for your pump. …
2. Step 2: Mount The Float Switch. …
3. Step 3: Adjust Your Weight. …
4. Step 4: Wiring.

How much is a float switch for AC?

Float switches are inexpensive to add to your HVAC system. The part itself typically costs less than $50, and your HVAC professional should be able to install it in under a half hour. Your HVAC professional can also determine whether your unit could benefit from a condensate pump.

How do I know if my condensate line is clogged?

1. Musty, moldy smell near your indoor unit or in air from the registers/vents.
2. Standing water near the indoor unit.
3. Water damage in areas near the indoor unit.
4. AC system is not cooling your home.
5. AC system shuts down or doesn’t turn on.

Where do you pour vinegar in your air conditioner?

1. Find your drain line. It should be near your drain pan, located near the air handler. …
2. Remove the cap.
3. Pour in 1/4 cup of distilled vinegar. …
4. Place the cap back on the drain line.

Is it safe to pour bleach down AC drain?

Unclogging a Condensate Drain Line Over time, algae, mold and mildew can build up inside the condensate drain line and form a clog. … Just pour a cup of bleach in the drain line’s access opening near the indoor air conditioning unit. This will kill any algae, mold or mildew that has formed in the pipe.

Why is my AC outside unit not turning on?

AC not turning on could be the result of a blown fuse located at something called a safety shut-off box. This should be found close to your AC unit. Check to see if you have a blown fuse, and be sure to replace it if that’s the case. Even if the fuse doesn’t appear to be damaged, go ahead and replace it anyway.

Why is my AC outside unit fan not turning on?

One of the most common reasons fans stop spinning is because of a dead capacitor. … Each air conditioning system has several capacitors, including the start capacitor, which sends signals to the motor, and the run capacitor, which keeps the motor running. Capacitors can go bad over time and need to be replaced.

Why is my AC running but not cooling?

Condenser Unit is Blocked If your air conditioner is running, but not lowering temperatures inside, one issue could be a blocked or clogged condenser coil. When operating correctly, the condenser fan draws air into the outdoor unit through the condenser coil to pull heat energy out of your home.

Can you repair a float switch?

You can sometimes repair float switches by wiping away grime from the float mechanism and switch. If that doesn’t work, then you need to replace the float switch.

How does a float switch break?

Typically, the way in which a float switch operates uses a magnetic reed switch, breaking or connecting an electrical circuit when liquids reach a designated level. … While these switches are commonly used for tank level applications, they can fail and cause unreliability issues.

How long do float switches last?

These old float switches didn’t have many operations and needed to be replaced about every 3 years or so, making them expensive to keep up with. However, new float switch manufacturers are producing water level control technology that is getting rid of old float switches for good.

How cold can refrigerant get?

The lowest temperature that can practically be achieved in single-stage refrigeration systems is about -40 to -50˚F. A single-stage system is limited by the compression ratio of the compressor and the ambient temperature in which it must condense the refrigerant.

What are the four stages of refrigeration?

A refrigeration cycle has four major components: the compressor, condenser, expansion device, and evaporator.

What happens to the pressure and heat in the evaporator?

When the liquid refrigerant reaches the evaporator its pressure has been reduced, dissipating its heat content and making it much cooler than the fan air flowing around it. This causes the refrigerant to absorb heat from the warm air and reach its low boiling point rapidly.
