How far should a foundation be from a French drain

We recommend installing the french drains between 2 and 5 feet away from the foundation. There are a few variables that impact the exact distance to dig the new drain lines to carry water away from your home. Finding the right distance: Check where water is pooling naturally during heavy rains.

Should French drain be next to foundation?

It’s important to install French drains around foundations because a French drain can prevent water from causing foundation damage.

How deep should a French drain be next to a house?

French drain depth: About 8 inches to 2 feet deep should be sufficient for many water-diverting projects, though related systems, such as those built around foundations and sub-ground living spaces, as well as the bases of retaining walls, may be deeper.

Should a French drain be against House?

How Do I Build A French Drain? A French drain should be no deeper than the foundations of a building and, in the case of older buildings, the side of the trench should slope away from the building at no less than 45 degrees.

Where should a French drain be placed?

LOCATION: French drains should run along the center of the low area(s) needing drained, and end at the desired drainage point. There should be adequate “fall” in the french drain construction, for water to naturally run downhill, toward the drainage end.

Are French drains worth it?

French drain systems are incredibly effective because, unlike typical surface drains, they collect water over the entire length of the drain as opposed to one dedicated area. The force of gravity helps to guide water along a reliably smooth path to a desired discharge point.

Why do French drains fail?

Over time, a French drain may become clogged. Tiny soil and clay granules slip through the pores of the landscape fabric and gradually build up inside the pipe. Another common cause of French drain clogs is root intrusion from grass, shrubs, and trees.

Does French drain need pipe?

Officially a French drain is a gravel drain with no pipe. The water just collects in and travels through in a gravel or stone filled channel that starts from the surface or just below it. … It is easier to dig and grade a wide French drain, especially when it gets deep.

Do French drains need an outlet?

A properly designed French drain system does not require an outlet. The water will simply soak into the soil as it flows along the perforated pipe. In fact, a French drain doesn’t require an inlet on just one end either.

How much slope does a French drain need?

French drains need to have a slope of at least 1 percent, so the force of gravity will work for you. This means that the drain should slope down a total of at least one inch for every 10 feet of pipe.

Article first time published on

Can a French drain be too deep?

While you dig, you may encounter gas and water lines, electrical wires, and sewer pipes, all of which pose hazards. It’s also important not to dig too deep. If the drain is dug below the level of the footer, it may undermine the foundation, causing the home to settle.

How deep should drainage pipes be?

In order to carry the flow and to avoid blockages, the drain or sewer that you intend to connect to generally needs to be at least 0.8m lower than the ground floor level. If it is less than this, you should seek advice from a builder, architect or drainage engineer.

How do I keep water away from my house foundation?

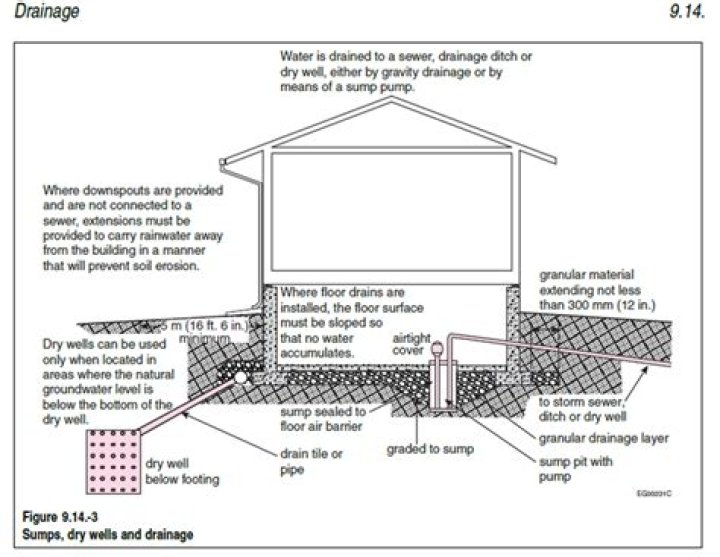

Proper drainage is the best way to keep water away from your home’s foundation. Install a French drain system around the house foundation – Dig a trench around the foundation, line it with gravel, and place a drain with perforations in it to pull the water away. Cover the drain with gravel and add soil over it.

Do foundation drains need to be sloped?

ABOUT FOUNDATION DRAINAGE The solid pipe should be sloped at a minimum pitch of 1/4 inch per foot, although a steeper slope is better. If there is more than 200 linear feet of foundation, add a second outlet or increase the size of the outlet pipe from 4 inches to 6 inches.

How deep should a perimeter drain be?

You’ll have to dig a trench around the perimeter of your footing. This trench must be at least two feet wide and six feet deep. For a slab-on-grade home, the trench can be as shallow as two feet.

Can a French drain be covered with grass?

The simplest drain is a classic French drain, which is nothing more than a trench filled with coarse stone or gravel. … The drain can be left open or, if aesthetics are a concern, can be covered with a couple of inches of topsoil and sod.

What size gravel is best for French drain?

Gravel used for this layer is typically 1/2 inch to 1 inch across — the larger it is, the better the water flow and less chance of clogs and blockages. For a French drain without a perforated pipe, opt for even larger gravel, such as 1 1/2 inches across.

How much does a 50 foot French drain cost?

Linear FeetAverage Cost Internal French Drain (Materials Only)Average Cost External French Drain (Materials Only)50$1,000-$1,500$2,250-$3,000100$2,000-$3,000$4,500-$6,000150$3,000-$4,500$6,750-$9,000

Can a French drain cause a sinkhole?

How much should a French drain cost?

According to Fixr, the average French drain costs $4,500. An exterior drain located fairly close to the surface could cost as little as $1,000, or $25 per linear foot on average. Drains installed under your basement floor could cost $2,000 or

What is better than a French drain?

If you have a negative sloped yard (which slopes toward your foundation), a surface drainage system is a better choice than a French drain. Sloping of more than 1”-1-1/2” on a 10' run can result in excessive amounts of water seeping beneath y

When should a French drain be installed?

While surface drains are appropriate when water is pooling in one specific, smaller areas, French drains are the answer to pooling water over larger stretches of your yard.

How long should a French drain be?

The average French drain should be about eight inches to two feet deep. Systems built around foundations, retaining walls, and sub-ground living spaces may need to be deeper. Pipe length. This factor depends on specific elements of the projec

Why is my yard holding water?

Standing water is usually caused by two common problems: poorly draining soil and low spots in the yard. Lawn thatch, the layer of thick dead leaves, roots, and stems between soil and grass, is another culprit. Heavy foot traffic can also com

What size pipe to use for French drain?

Pipe Size. According to foundation repair experts, a typical French drain system in a residential home has a four-inch diameter. But if the area experiences a high volume of water, it might be suitable to install six or eight-inch pipes.

Can I use landscape fabric for French drain?

The best type of fabric for a drainage project such as a drain field or french drain is non-woven geotextile landscape fabric. If you're project requires high strength and also good drainage then a high end combination woven fabric could be s

How much water will a French drain hold?

Generally, a French drain should drop at least one percent in depth for every 100 feet of length.

How deep is the main sewer line?

How Deep Is a Sewer Line? Sewer lines on private property can be as shallow as 18–30 inches deep or as much as 5–6 feet deep. In areas with cold climates, the pipe will be buried deeper to prevent freezing in the winter.

Can underground drainage be used above ground?

Above ground PVCu drainage pipe and fittings can only be used above ground. They will function if installed underground, but are not manufactured to the correct standards for this application, Building Regulations Part H state that PVCu mater

What is the minimum depth of a sewer line?

On average, trenches should be around 12-24 inches-deep, and wide enough to house your pipe comfortably before filling it in with soil and sod. As we've mentioned, in cold weather regions, this will need to be deeper or you'll have problems w

Should I put rocks around my foundation?

Placing organic mulch or inorganic ground cover such as gravel around foundation diminishes weed growth and helps to make a building look tidy and well-maintained. ... Gravel beds around a foundation are safe as long as they do not impede wat

How much of my foundation should be exposed?
