How many bits are there in a eui 48 or MAC address

The EUI-48 is an identifier that is formed by concatenating the 24-bit OUI with a 24-bit extension identifier that is assigned by the organization that purchased the OUI – the resulting identifier is generally represented as a set of octets separated by dashes (hexadecimal notation) or colons (bit-reversed notation) as …

How many bits is a MAC or EUI-48 address?

The IEEE 802 MAC address originally comes from the Xerox Network Systems Ethernet addressing scheme. This 48-bit address space contains potentially 248 (over 281 trillion) possible MAC addresses. The IEEE manages allocation of MAC addresses, originally known as MAC-48 and which it now refers to as EUI-48 identifiers.

What are EUI-48 addresses?

EUI-48 and EUI-64 identifiers are most commonly used as globally unique network addresses (sometimes called MAC addresses), as specified in various standards. For example, an EUI- 48 is commonly used as the address of a hardware interface according to IEEE Std 802, historically using the name “MAC-48”.

How many bits is a MAC address?

Historically, MAC addresses are 48 bits long. They have two halves: the first 24 bits form the Organizationally Unique Identifier (OUI) and the last 24 bits form a serial number (formally called an extension identifier).

Are MAC addresses 48 bits?

A MAC address also known as a media access control address is a unique 48 bit number identifier assigned to network interfaces. Every piece of hardware with a ethernet, bluetooth or wireless interface has this unique 48 bit number to identify it.

What is an EUI 64 address?

EUI-64 (Extended Unique Identifier) is a method we can use to automatically configure IPv6 host addresses. An IPv6 device will use the MAC address of its interface to generate a unique 64-bit interface ID. However, a MAC address is 48 bit and the interface ID is 64 bit.

Why do most laptops have 3 MAC addresses?

A computer has a unique MAC address for each network interface. For a laptop that means a different MAC for WiFi than Ethernet. The same also for a desktop computer that includes WiFi. If a computer has multiple Ethernet ports or a USB adapter for WiFi or Ethernet it would have more MAC addresses for each of them.

Is a MAC address 8 bytes?

Traditionally, MAC addresses are made up of 12-digit numbers and are made up of 48 bits, or 8 bytes. However, some types of hardware require a 64-bit MAC address. Certain wireless home automation systems, for example, may require a 64-bit MAC address. When using an IPv6 network, the settings change a bit more.

Is MAC address 32 or 64-bit?

MAC address is a unique identifier that is assigned to a NIC (Network Interface Controller/ Card). It consists of a 48 bit or 64-bit address, which is associated with the network adapter. MAC address can be in hexadecimal format. The full form of MAC address is Media Access Control address.

Whats is my MAC address?

Select Run or type cmd into the search bar at the bottom of the Start menu to bring up the command prompt. Type ipconfig /all (note the space between the g and /). The MAC address is listed as series of 12 digits, listed as the Physical Address (00:1A:C2:7B:00:47, for example).

Article first time published on

How do you write MAC address?

A MAC address consists of 48 bits, usually represented as a string of 12 hexadecimal digits (0 to 9, a to f, or A to F); these are often grouped into pairs separated by colons or dashes. For example, the MAC address 001B638445E6 may be given as 00:1b:63:84:45:e6 or as 00-1B-63-84-45-E6.

How can I get MAC address?

Where can I buy MAC address for my device? Where can I buy MAC address for my device? The user can buy pre-programmed EEPROMs containing MAC address from Microchip. Refer to .

How is a unique MAC address assigned to a network interface card?

A MAC address is given to a network adapter when it is manufactured. It is hardwired or hard-coded onto your computer’s network interface card (NIC) and is unique to it. Something called the ARP (Address Resolution Protocol) translates an IP address into a MAC address.

How do you write a 48-bit MAC address?

MAC addresses are binary numbers which are represented in its hexadecimal equivalent. For example, the 48-bit MAC address 10101010.11110000. 11000001.11100010. 01110111.01010001 in binary can be represented as shorter hexadecimal equivalent AA.

What does a 48-bit MAC address look like?

The 48-bit address (universal or local) is represented as a string of six octets. The octets are displayed from left to right, in the order that they are transmitted on the LAN medium, separated by hyphens. Each octet of the address is displayed as two hexadecimal digits.

Where can I find MAC address on Macbook?

Apple macOS (Mac OS X) devices To Find the MAC Address: Open the Apple Menu -> System Preference -> Network -> Wi-Fi -> Advanced -> The MAC address is the Wi-Fi Address or Airport Address.

How many MAC addresses can a device have?

While most desktop computers have only one MAC address for the wired network card, most laptops should have two MAC addresses–one for the wireless network card and one for the wired network card. It is important that both wired and wireless MAC addresses be recorded.

How many Macs does a router have?

So you should be seeing three MAC addresses on the router one for the local NIC you are attached to, one for the WAN port on the router, and one for the wireless NIC.

Can a computer have two MAC addresses?

Can a device have more than one MAC address? Yes. For each network interface in your device, there is a unique MAC address associated with it. So if your laptop has both an Ethernet port and Wi-Fi built-in, you will see two MAC addresses in the system configuration.

When using EUI-64 addressing what is combined with the MAC address?

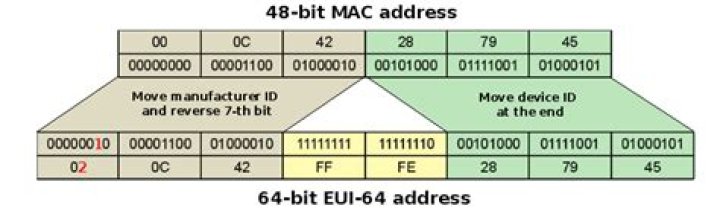

The IPv6 EUI-64 format address is obtained through the 48-bit MAC address. The MAC address is first separated into two 24-bits, with one being OUI (Organizationally Unique Identifier) and the other being NIC specific. The 16-bit 0xFFFE is then inserted between these two 24-bits for the 64-bit EUI address.

What is Eui-64 process?

Modified Extended Unique Identifier 64 (EUI-64) is the process that allows a host to assign itself a unique IPv6 address. The host’s MAC address is converted into a 64-bit identifier, called a Modified EUI-64, and this value is appended to a 64-bit network prefix learned by other means.

What is Duid in DHCPv6?

The Client ID in DHCPv6 consists of two parts: a DHCP Unique Identifier (DUID) and an Identity Association Identifier (IAID). The DUID identifies the client system (rather than just an interface, as in DHCPv4), and the IAID identifies the interface on that system.

What is the standard length of MAC address 16 bits 32-bits 48-bits 64 bits?

Que.What is the size of MAC Address?b.32-bitsc.48-bitsd.64-bitsAnswer:48-bits

Is a MAC address 32-bits long?

On the other hand, the MAC address is provided by the device manufacturer and is embedded in the NIC(Network Interface Card). Address Length and Representation: In IP address, Ipv4 has an address length of 32-bits, while IPv6 has an address length of 128-bits. On the other hand, the MAC address is a 48-bits address.

What is the address size of MAC address?

Sr. No.KeyMAC Address2SizeMAC address is a six bytes hexadecimal address.3Address retrivalMAC Address of a device can be figured out using ARP Protocol.4ProviderNIC’s Card Manufacturer provides the MAC Address.5Address TypeMAC Address is a physical address.

What are the first 3 bytes of a MAC address?

The first 3 bytes (24 bits) represent the manufacturer of the card, and the last 3 bytes (24 bits) identify the particular card from that manufacturer. Each group of 3 bytes can be represented by 6 hexadecimal digits, forming a 12-digit hexadecimal number representing the entire MAC address.

How many bits and bytes is a MAC address?

MAC Addresses are 6 bytes (or 48 bits long), providing 281,474,976,710,656 addresses in theory. In order to make these addresses easier for humans to remember, these addresses are usually written as six two-digit hexadecimal numbers, such as 01:23:45:67:89:AB.

What is true MAC?

Explanation:A MAC address is composed of 6 bytes. The first 3 bytes are used for vendor identification and the last 3 bytes must be assigned a unique value within the same OUI. MAC addresses are implemented in hardware. A NIC needs a MAC address to communicate over the LAN.

What does MAC stand for?

AcronymDefinitionMACMacintosh (slang for Apple computer)MACMandatory Access ControlMACMedium Access ControlMACMid-American Conference

What is MAC and IP address?

IP Address. MAC address is a unique identifier that is assigned to a Network Interface Controller/ Card. An IP address is an address that helps you to identify a network connection. The full form of MAC address is Media Access Control Address. The full form of IP address is an Internet Protocol Address.

What are the 2 parts of a MAC address?

A MAC address consists of two parts. The Block ID is the first six characters of a MAC address. The Device ID is the remaining six characters. The Block ID is unique to the manufacturer.
