How many sprinkler zones do I need

With simple math, you can determine how many heads in each zone and then take the total number of sprinklers you need, and divide that by your head/zone number and that will tell you how many zones you need.

How do I calculate how many sprinklers I need?

Consider the distance of each sprinkler head. If they distribute water in a circumference of 8 feet around, place them 4 feet apart to ensure every part of the lawn gets watered. Whatever the maximum spray distance of the sprinkler head, divide it in half to find out how far apart to place your sprinklers.

How many sprinklers per zone do I need?

Calculating Zones Each zone should include plants with the same watering needs, or an area of the lawn. Then, add up the necessary flow rate in GPM of all the sprinkler heads, divided by the GPM of your water supply. The resulting number will equal how many zones you need.

How many sprinklers can you put on one zone?

At different pressures, the sprinkler head and nozzle will consume different amounts of water. For example, at 35 pounds per square inch (PSI) the 5000 Series Rotor using the 3.0 nozzle will use 3.11 gallons per minute (GPM). If your home’s water capacity was 10 GPM, you could place 3 heads per zone.

How do I calculate sprinkler area?

In short, to determine the minimum flow from a sprinkler in multiplying the area by the required density, is the actual area of the room used (13′-0″ x 13′-0″ = 169 sqft) or is it computed the same as the maximum area of coverage for a sprinkler by doubling the furthest distance from adjacent walls [(7′-0″ x 2) x (7′-0 …

Does each sprinkler zone have a valve?

An irrigation system is typically divided into several zones, each of which feeds sprinkler heads in a different area of the lawn or garden, and each zone is controlled by a valve that receives signals from a centrally located controller. … Often the valves are located inside one or more in-ground valve boxes.

Can you combine sprinkler zones?

A. Yes, it is often possible to run two valves at once. … You may need to do some adjusting of the sprinklers as the water pressure operating them is likely to be less when two valves are on. Both valves running at the same time may require more water than the pipe supplying them can reasonably handle.

How many PSI do I need to run my sprinklers?

The optimum operating pressure for most residential sprinkler heads is between 30 and 50 pounds per square inch (PSI). With correct water pressure, each head will perform the way they were designed, and the result will be even spray-patterns and efficient use of water.

How do sprinkler zones work?

The zones will be set up with different sprinkler heads and watering systems to make sure water covers the area. Your bushes and shrubs will need less water than grassy areas. … Once the irrigation system is installed, it can be set so each zone gets water for the period of time that best fits it.

How high should sprinkler heads be?

The correct height for a sprinkler head is to have the top of sprinkler head just above the soil surface. No more than a quarter of an inch above the ground level. This lowers the tripping hazard, and a lawn mower can go past it without causing any damage.

Article first time published on

How many zones does my yard need?

Draw Your Sprinkler Zone Plan With simple math, you can determine how many heads in each zone and then take the total number of sprinklers you need, and divide that by your head/zone number and that will tell you how many zones you need.

What is the minimum distance between sprinkler heads?

Current fire safety codes require sprinkler heads always to be a minimum of 6 feet apart from one another to avoid cold soldering.

How far apart should Lawn sprinklers be?

Types of Sprinkler Heads Because of the lower PSI the distance of the spray rarely exceeds 15ft. Meaning that spray heads should never be placed further than 15 ft. apart as this would create dry spots (i.e. dead grass) in your lawn. It is always important to install sprinklers with overlap for full coverage.

Can you run 2 sprinkler zones at once?

Running multiple zones at once is usually not possible due water-pressure and flow limitations at residential properties. As with any standard irrigation controller, you can wire multiple solenoids/valves to the same zone output if you want.

How many zones is Hunter Pro C?

BrandHunterWarranty2 YearsSeriesPCZones4Enclosure TypeIndoor

Why are multiple sprinkler zones coming on at the same time?

Water is coming out of multiple zones at the same time: For the valves to stay open in one zone, while shutting outlets in other zones, there needs to be a minimum amount of water pushed through the valve. … To investigate further causes and solutions, go to our FAQ page and look under “Indexing Valves.”

How do I adjust my sprinkler zone?

To adjust a stationary sprinkler head, find the spray radius adjustment screw on top of the nozzle. You may need to adjust it slightly to point the water spray in the direction of your lawn that you want it. Turning it clockwise can also help lower the water pressure on a spray head that is shooting too much water out.

How do water sprinkler timers work?

An automatic sprinkler valve controls the flow of water from the mainline to each zone. … The sprinkler wire connects each automatic valve to the sprinkler timer or controller. The sprinkler timer tells each valve to open at a specified time, run for a specified time, and then close.

Whats a sprinkler zone?

installing a home irrigation system All systems, however, are divided into areas called zones; each zone is designed to water separate areas with very specific types of sprinkler heads. … In this type of zone, the angles of the sprinkler heads are specifically placed to hit just one area and avoid overspray.

Why do sprinklers have zones?

Zones are the key to efficiently and effectively irrigating a lawn. Most yards include more than just grass, and these different areas have different water needs based on the variety of plants, topography, and level of shade and sun. This is where zones come in handy.

What should the water pressure be in my house?

Normal psi for a home pipe system is between 30 and 80 psi. While you don’t want the psi to be too low, it violates code to be above 80. Instead, you should aim for a psi that’s between 60 and 70.

How deep should sprinkler lines be?

Dig for Your Sprinkler System The trenches will be relatively shallow, usually 6 to 12 inches deep, depending on your area’s freeze cycles and frost severity. The trench must also be deep enough to allow the sprinklers to retract underground to prevent breakage from lawn machines.

What sprinkler covers the most area?

The Melnor XT Oscillating Lawn Sprinkler with Width & Range Control could be the best sprinkler for a large area, thanks to its wide base, 20 nozzles, or its adjustable width and flow. It can cover up to 4,200 square feet, which is a huge space.

Should sprinkler heads be flush with the ground?

STEP 2: Dig up the broken sprinkler head. Sprinkler heads sit just below or flush with the ground, so a sturdy trowel is typically suitable for digging up the head. … Then dig a hole about 6 inches deep and a foot in diameter around the broken sprinkler head, taking care not to puncture the water line with your trowel.

Does a sprinkler system add value to your home?

A sprinkler system indirectly increases a home’s market value by enhancing the home’s overall curb appeal. Since attractive landscaping requires sufficient watering, an automatic sprinkler system ensures the protection of your investment.

What size pipe should I use for my sprinkler system?

For schedule 40 PVC, use 1/2-inch pipe for a 4 GPM system, 3/4-inch pipe for 8 GPMs, 1-inch pipe for 13 GPMs, 1 1/4-inch pipe for 22 GPMs, 1 1/2-inch pipe for 30 GPMs, and 2-inch pipe for 50 GPMs.

Can sprinkler heads be too close together?

Minimum and maximum distances between the most common sprinkler heads—and from heads to walls—receive careful attention in NFPA 13. … Placing sprinklers too close to walls, to each other, or to obstacles can make a fire much more likely to spread.

How far can a sidewall sprinkler spray?

Distance from Sidewall Sprinkler to Side of Obstruction (A)Maximum Allowable Distance of Deflector Above Bottom of Obstruction (B) [in. (mm)]5 ft 6 in. (1.7 m) to less than 6 ft (1.8 m)3 (75)6 ft (1.8 m) to less than 6 ft 6 in. (2.0 m)4 (100)6 ft 6 in. (2.0 m) to less than 7 ft (2.1 m)6 (150)

How far will a Rainbird 5000 spray?

Rain Bird 5000 Series Rotors are ideal for medium to large-size lawns and evenly distribute water from 25 to 50 feet. 5000 Series Rotors with Rain Curtain Technology are engineered to deliver a uniform spray pattern, giving you superior distribution uniformity and a consistently greener lawn with less water.

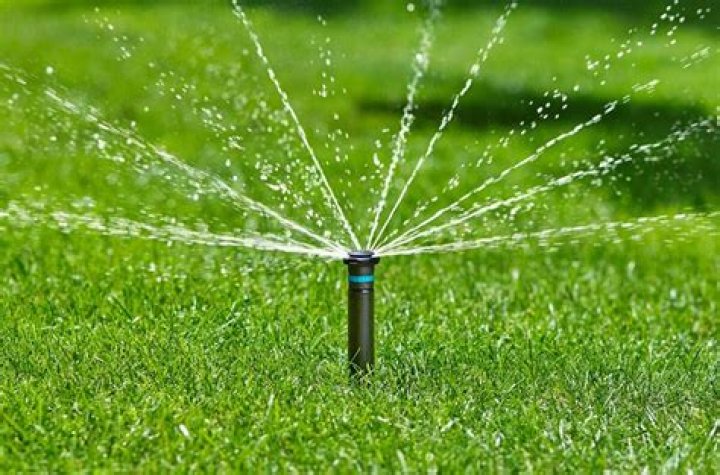

How far will a pop up sprinkler spray?

The most basic pop-up sprinkler is a stationary head. Typically spraying one dedicated area up to 15 feet away, these heads produce a fine mist at 90-, 180- or 360- degree angles.
