How much is a float switch for AC

Float switches are inexpensive to add to your HVAC system. The part itself typically costs less than $50, and your HVAC professional should be able to install it in under a half hour. Your HVAC professional can also determine whether your unit could benefit from a condensate pump.

How much does it cost to replace a float switch?

Float switch repair costs between $35-$75 in addition to the cost of labor. If the motor burns out, you’ll have to get a new one. Having a new motor professionally installed will cost between $60-$200.

What causes an AC float switch to go bad?

When it comes to the failure of this type of float switch, it generally comes down to certain common causes. These causes include the incorrect configuration of the switch, poor maintenance, using a float switch that is not designed for the purpose or using a float switch that is not properly rated for the application.

How do float switches work?

A float switch works to detect the level of liquid in a tank by using a float, magnet, and reed switch system that automatically opens and closes when water levels rise and fall inside the tank. … Once the dry contacts are opened or closed, they will send an electrical signal to set off a water level alarm.

Why does my float switch keep tripping?

If your AC float switch keeps tripping, you probably have an AC drain pan that’s full. You’ll need to empty the water, and with the right tools, you can do this yourself. … A technician can diagnose water coming from a frozen coil or a clog in the drain.

Where is float switch located?

Your float assembly is found inside the dishwasher’s tub, on the bottom. The water that fills your dishwasher lifts the float, and when it reaches a certain level, it acts as a trigger for the float switch. The float triggers the float switch to shut off, thereby shutting off the flow of water into the dishwasher.

What is an AC float switch?

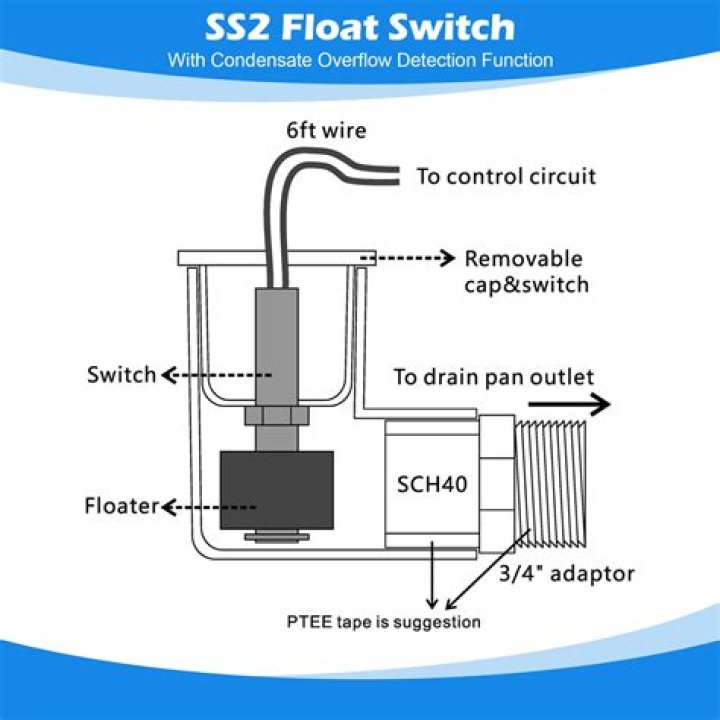

An HVAC wet switch/float switch, also known as a condensate overflow switch, serves to prevent this pan from overflowing if the AC drain stops working properly. The switch is activated when the level of the water in the pan comes above a certain point, causing the switch mechanism to trip/float to rise.

How long do float switches last?

These old float switches didn’t have many operations and needed to be replaced about every 3 years or so, making them expensive to keep up with. However, new float switch manufacturers are producing water level control technology that is getting rid of old float switches for good.

How do I reset my AC safety switch?

Step One—Turn Off Unit. The first step is to power down your air conditioner. …
Step Two—Find the Circuit Breaker Box. …
Step Three—Wait It Out. …
Step Four—Switch Unit Back On. …
Step Five—Confirm It’s Working.

How do you open a float switch?

Normally closed float switch: The electrical circuit is closed in the down position and open in the up position. So, with gravity pulling it down it is closed and as the liquid level rises to the pre-set level it will open.

Article first time published on

Can you repair a float switch?

You can sometimes repair float switches by wiping away grime from the float mechanism and switch. If that doesn’t work, then you need to replace the float switch.

How do I know if my sump pump float switch is bad?

You can test the float switch either by filling your sump pit with water to raise the switch. Alternatively, you can raise the switch by hand until it should switch. If the level is high enough, but the pump doesnt activate, the switch might be bad.

How does a float switch break?

Typically, the way in which a float switch operates uses a magnetic reed switch, breaking or connecting an electrical circuit when liquids reach a designated level. … While these switches are commonly used for tank level applications, they can fail and cause unreliability issues.

What do I do if my AC isnt blowing cold air?

Try cleaning your air conditioner’s filter and the coils to see if improving the airflow fixes the problem. If there is ice buildup, you’ll need to run the unit with just the fan in order to melt it off. If that doesn’t get the unit blowing cold air again, it could be refrigerant levels are low (see below).

How do you unclog an AC drain pipe?

Turn off your air conditioner. …
Remove the cap from the pipe. …
Check to see if there is any debris stuck in the drain. …
Remove any visible debris and retest for proper drainage. …
Pour in Vinegar. …
Replace the drain cap. …
Remove the drain cap.

Do I need a float switch on my AC?

On a humid day, or if your AC is not properly working, you might notice the drain pan overflowing. If there is even minor water overflow, it can lead to mold or microbial growth putting you and your system at risk overtime. To prevent potential catastrophic damage, install an ac float switch.

Why is my air conditioner blowing warm air?

If your air conditioner is blowing out warm air, your unit’s refrigerant levels might be low. This usually indicates a refrigerant leak in your system! If that’s the case, your air conditioner will continue to run and blow out warm air, trying to reach the temperature you set on your thermostat.

How do you test a float switch?

Attach the MultiMeter leads to the float switch wires. The Multimeter should be set to the Ohms. The MultiMeter should read zero when the float hangs in the down position. Lifting the float will change the zero to one.

Where are float switches used?

A float switch is a device used to detect the level of liquid within a tank. The switch may be used in a pump, an indicator, an alarm, or other devices.

Why do you consider float switch as automatic switch?

An example of this would be when a Normally Open float switch turns OFF an emptying pump when the liquid falls below the level of the switch. If a certain liquid level must be maintained, a float switch is great for automatic pump control and alarms. … This creates flooding, pump failure, or both.
