How often should you strap conduit leaving first J box

EMT must be secured at least every 10 ft. and within 3 ft. of every outlet box, junction box, device box, cabinet, conduit body, or other termination.

What is the NEC code for strapping conduit?

1 Answer. 2014 NEC Article 352.30(A) states that PVC conduit should be supported within 3′ of each outlet box, disconnect, panel, etc. That also Includes strapping the 90% ells you have installed.

How often do you support EMT?

EMT shall be securely fastened in place at intervals not to exceed 3 m (10 ft). In addition, each EMT run between termination points shall be securely fastened within 900 mm (3 ft) of each outlet box, junction box, device box, cabinet, conduit body, or other tubing termination.

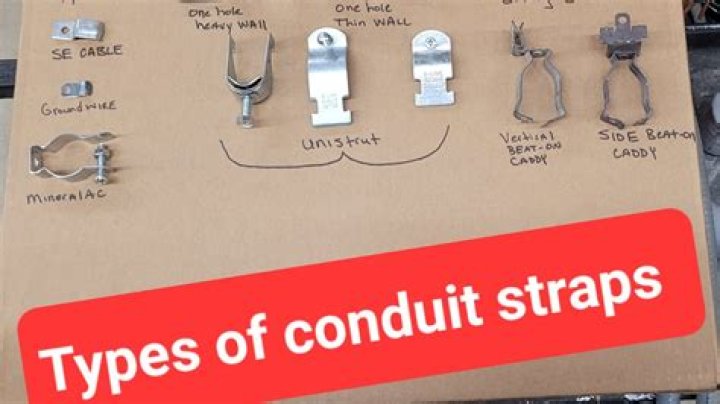

How far should conduit straps be?

Conduit SizeDistance Between Supports1″12 Feet1¼” – 1½”14 Feet2″ – 2½”16 Feet3″ and larger20 Feet

Can a junction box be supported by conduit?

Essentially, rigid metal or intermediate metal conduit can support an enclosure that is supporting a fixture where the conduit is secured within 18 inches of the enclosure. … This exception also permits a single conduit to support a box used for fixture support or a wiring enclosure used in lieu of a box.

How often do you strap Romex?

General Cable Support Runs of NM cable must be supported at least every 54 inches. 1 They also must be secured within 12 inches of an electrical box that includes a cable clamp or within eight inches of a box or enclosure without a cable clamp.

How often do you strap conduit?

EMT must be secured at least every 10 ft. and within 3 ft. of every outlet box, junction box, device box, cabinet, conduit body, or other termination. An exception allows EMT to be fastened up to 5 ft.

Do you need to use primer on PVC conduit?

PVC Conduit Doesn’t Need Primer Some PVC pipes require primer, but you don’t need to use primer when gluing conduit and fittings. Home centers usually sell the appropriate glue/cement near the the PVC conduit and fittings.

How often should an electrician secure conduit between enclosures?

The general rule for straight runs of RMC, IMC, and EMT is that they are required to be securely fastened at intervals of no more than 10 feet (3 m).

Can you support conduit with tie wire?

Tie wire is typically used to tie rebar together in concrete structures, but sometimes it is used to hold conduits in place until the concrete is poured.

Article first time published on

Can you support conduit from conduit?

A conduit body, not exceeding 100 cubic inches in size, can be supported by either rigid metal or intermediate metal conduit, when the installation complies with Section 370-23(e). … The raceways are secured within 3 feet of the conduit body. This installation is Code compliant, and therefore acceptable.

Where is EMT conduit not allowed?

358.12 – USES NOT-PERMITTED You cannot install EMT where it is subject to physical damage, or where it is used as a support for a luminaire or other equipment. For both of these RMC (rigid metal conduit) would be acceptable.

What is the largest trade size RMC?

(B) Maximum RMC larger than metric designator 155 (trade size 6) shall not be used. Informational Note: See 300.1(C) for the metric designators and trade sizes. These are for identification purposes only and do not relate to actual dimensions.

What does LB stand for conduit?

LB stands for line box. It is often used at the point where you will begin pulling wire through the conduit.

Does a junction box need to be secured?

Securing Cables Article 334.30 states that cables coming out of the junction boxes should be secured within 12 inches of the box in all boxes equipped with cable clamps. These cable clamps are not to be removed. 314.17(C) states that cables must be secured to the receptacle box.

Do junction boxes have to be accessible?

Junction box covers must remain accessible; they cannot be covered with drywall or other surface material. A junction box is most often used where an electrical circuit branches off in two or more directions from a location where an outlet or fixture is not practical.

What does EMT stand for in conduit?

Electrical Metallic Tubing (EMT) – Allied Tube & Conduit | Electrical Conduit.

What is the maximum size of EMT conduit?

Size and Type of Conduit14 AWG Wire10 AWG Wire1/2-inch EMT1253/4-inch EMT22101-inch EMT35161 1/2-inch EMT8438

How often should wiring be stapled?

Article 336-18 stated that cable must be secured in place at intervals not exceeding 4.5 feet (1.37 m) and within 12 inches (305 mm) from every cabinet, box, or fitting.

How tight should Romex staples be?

Do not hammer in those cable staples too tight. They should be just enough to hold the cable in place, but not so tight as to pinch the cable. It may not look like the staple is damaging the conductors, and the problem may not present itself for a few years after installation, as was the case here.

What is the difference between EMT and RMC?

The biggest different between RMC and EMT is that EMT is a lot lighter. It has thinner walls and is also unthreaded. As a result, it’s a very popular option for use in commercial buildings. Connecting sections of EMT is easier.

What must be done to PVC conduit before it can be bent?

What must be done to PVC conduit before it can be bent? Heat until it is soft and pliable.

What happens if you don't use primer on PVC?

Some will tell you that primer is not necessary to create strong PVC joints. … While you may be able to create strong joints without it, primer is an important part in making sure your joints are as strong as they possibly can be. We recommend you use primer on any joints that will have liquid media passing through them.

Should I glue PVC electrical conduit?

Yes, an electrical PVC conduit needs to be glued properly with PVC solvent cement or water and insects could get in there to damage the electrical wires, especially if the conduit is buried underground.

Do you need purple primer on PVC pipe?

Purple Primer can be used with all types, schedules and classes of PVC and CPVC pipe and fittings. A low VOC formulation. In most cases a successful solvent cement joint can be made without using a primer. But, if you want to increase the probability of making a successful joint, using a primer is the thing to do.

Where used to securely fasten LFMC cable ties shall be?

LFMC shall be securely fastened in place by an approved means within 300 mm (12 in.) of each box, cabinet, conduit body, or other conduit termination and shall be supported and secured at intervals not to exceed 1.4 m (41/2 ft). Where used, cable ties shall be listed and be identified for securement and support.

How often should MC cable be supported?

According to NEC Article 330.30, MC cable must be supported and secured at intervals of 6 feet or less (unless routed through a framing member) and cables containing four or fewer conductors sized no larger than 10 AWG must be secured within 12 inches of every termination.

What is the maximum distance for a staple supporting Type NM Romex at a non metallic plastic box?

The general rule for NM cable is to secure the cable within 12 inches of the box and every 4.5 feet thereafter. The previous code language could technically allow an unlimited length of coiled up NM cable inside the wall as long as it was secured within 12 inches of the box.

Can you use a raceway as a support?

Raceways cannot be used as a means of support for other raceways unless the raceway is identified as a means of support. “Identified” means it is suitable for a specific purpose, in this case, to support other raceways. Common raceways, like RMC, EMT, and PVC are not identified as a means of support for other raceways.

What is a raceway fastener?

Raceway Fasteners and Anchors. Conduits and other types of raceways used to carry wiring and cables must be properly supported. This generally means attaching the raceway to the building structure. Depending on the type of construction, the raceway may have to be attached to wood, concrete, or metal.

What must be installed in any box with conduits having #4 or larger conductors?

Boxes and conduit bodies enclosing conductors 4 AWG or larger (under 600V) must be installed in accordance with the requirements in 314.28. … The calculation for the minimum size box is based not only on the raceways, but where the conductors enter and exit the box.
