How thick is a resilient channel

Resilient channel is available in 18 and 30 mil thicknesses (25-20ga.). Standard channel lengths are 12 foot long. Custom resilient channel lengths are available on request.

How thick is an RC 1 channel?

Product Data & Ordering Information: Material: Grade 33ksi min. yield strength Coating: G40EQ (G40 or G60 available) Thickness: 25ga (18 mils), 0.0188″ Design Thickness, 0.0179″ Min. Thickness Dimensions: 2″ x 1/2″ Deep Stock Lengths: 12′-0″ Long Packaging Weight: 162 lbs/1000 ft.

What material is resilient channel?

Resilient channel is manufactured from 18mil and 22mil corrosion-resistant galvanized steel and is available with single or double legs.

Are resilient channel worth it?

Resilient channels are very affordable and if you choose wisely, their performance will be more than effective for the price. While they may not be the best choice for sound insulation of your house, they are a great choice for hotel rooms or apartment buildings, for instance.

What is resilient furring channel?

Resilient channel is a thin metal channel that is intelligently designed to substantially improve the sound insulation of drywall, sheetrock, plasterboard walls and ceilings. The channel effectively isolates drywall from the framing studwork, which results in the weakening of sound waves substantially.

Can you use resilient channel on a ceiling?

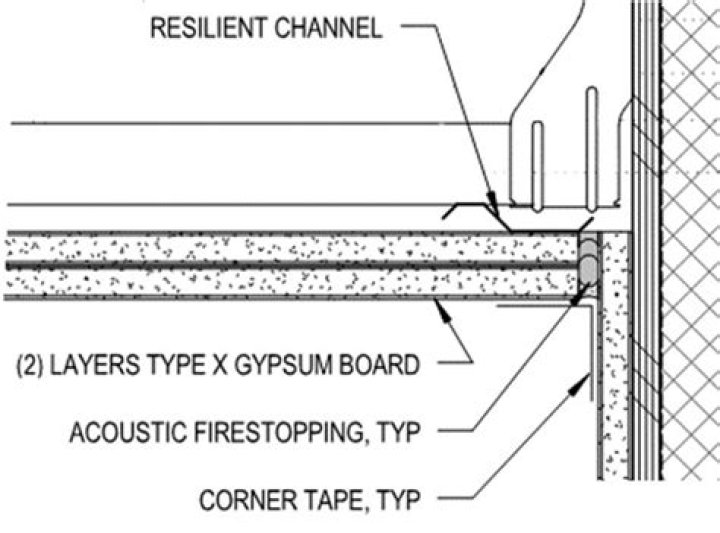

Resilient channel should be installed on Cathedral Ceilings (single or double angled ceiling) with the center of the face of the channel 6 inches from the top to permit a floating angle wallboard installation. Resilient channel must be installed with mounting flange down.

How thick is resilient bar?

The resilient bar offers a 16mm drop, 17mm including the thickness of the metal in ceiling height.

Can you install resilient channel over existing drywall?

It should be noted that adding resilient channels to an existing wall (over the existing gypsum) will not increase STC values. There is not enough space between the old and new gypsum for RC to work effectively. A variety of fiberboard-based products have been used to achieve better STC values.

Can you install resilient channel over drywall?

Hanging RC Over Existing Drywall: When adding a 2nd layer of drywall, this should be done on the other side of the wall. If the resilient channel is installed directly over drywall (rather than studs), it creates a mass-air-mass condition that greatly reduces its effectiveness.

How far apart do you install resilient channel?

Install resilient channels 24″ on center max. When joist spacing is 16″ on center and 16″ on center max. When joist spacing is 24″ on center. One or two layers of gypsum board may be used.

Article first time published on

How much does it cost to install a resilient channel?

You should expect to pay a little bit more than one dollar per square foot to add resilient channel.

How can I make my room soundproof?

Cover walls with thick blankets, moving pads, tapestries, or quilts. Virtually any soft material will work, though thicker ones absorb more sound than thinner materials. If you don’t mind adding an industrial look to the room, fasten sound-absorbing panels to the walls and, if necessary, the ceiling.

How do you calculate resilient channels?

For ceilings, the spacing is determined by the support framing. If the spacing of the support framing is 24 inches on center, then the resilient channels should be 16 inches on center. If the support framing is 16 inches, the resilient channels can be 24 inches on center.

How much does resilient channel reduce sound?

As far as STC is concerned, sound isolation clips add 15-20 STC on an average. Resilient channels can add 5-7 points. So, if you don’t mind investing a little more, it is better to opt for sound isolation clips.

What is a furring channel?

Furring Channel is a batten used in conjunction with specified clips to provide a stable framework for fixing plasterboard to walls and ceilings.

Can you use resilient channel on walls?

For walls, resilient channel should be installed at right angles to studs or joists, using 9.5-mm (3⁄8-in.) type S pan head screws with flange down—except at floor level, where the channel should be installed with the flange up. This can be substituted with a 13-mm (½-in.) layer of wallboard.

How many resilient channels do I need?

We recommend 24″ hat channel spacing for single or double layer drywall and 16″ hat channel spacing for triple layer drywall. Select the total number of doors and windows you have located in each wall that is being clipped.

What does STC 45 mean?

A sound blocking level of STC 45 means that a listener in a quiet room would hear raised speech in adjacent rooms, but would not be able to understand the conversation. The transmitted noise would not typically be disruptive. … Examples include patient rooms1, enclosed offices2, and classrooms along corridors3.

How can I get STC 50?

Add Soundproofing Membranes: If you need to achieve an STC of 50 or higher, consider using a soundproofing membrane. These products offer decoupling by separating the drywall from studs, and also significant mass increases.

What does STC 60 mean?

Loud speech audible, music easily heard. STC 52-55. Loud speech audible if straining to listen, music can be heard and may still be disturbing. STC 57-60. Loud speech essentially inaudible, music can be heard faintly but bass may still be disturbing.

Which side of wall is resilient channel?

The open side of the resilient channel should face up, toward the top of the wall. This placement allows the weight of the installed gypsum board to lead the resilient channel away from the framing.

What is drywall furring channel?

Drywall furring channel is a hat-shaped framing accessory designed to “furr” out any surface for the application of the final finish. In addition, furring channel used in conjunction with cold rolled channel is the ideal system for the construction of a drywall ceiling.

What screws do I use for resilient channel?

To fasten the drywall board to the resilient channel use 1” (25 mm) Type S Buglehead screws every 12” (305 mm). Screws should not come in contact with the stud, joist or truss. A maximum of two 5/8” (15.9 mm) boards should ever be fastened to resilient channel.

How much does it cost to sound proof a room for drums?

About 200 to 1200 per sq ft. It depends on the quality and level of sound proofing.

How do I stop noise in my basement?

1. USE CAULKING SEALS TO SEAL GAPS.
2. USE PADDING TO MAKE SURE MORE SOUND IS ABSORBED.
3. USE PADDING TO MAKE SURE MORE SOUND IS ABSORBED.
4. USE ROXUL MINERAL WOOL INSULATION TO INSULATE THE JOIST CAVITIES.

How can I dampen the sound in my basement?

The most cost-effective and simple method of sound dampening in a basement is to install insulation in the floor joists (a.k.a. basement ceiling). Typically an R-factor of 19 is installed prior to basement ceiling drywall, creating a barrier that absorbs sounds between the main floor and basement.

What materials can block sound?

1. Mass-Loaded Vinyl Sound Barrier. …
2. Acoustic Mineral Wool Insulation. …
3. Green Glue Soundproofing Compound. …
4. Resilient Sound Channels. …
5. Soundproof Drywall. …
6. Acoustic Caulk, Sealant. …
7. Soundproof Foam Panels. …
8. Soundproof Blankets.

How can you soundproof a room without construction?

1. Focus On The Weak Points Of Your Apartment Walls.
2. Search For Possible Holes And Glue Them.
3. Use Mass-Loaded Vinyl.
4. Put Some Furniture And Fill Out Space.
5. Place Foam Mats.
6. Use Acoustic Foams.
7. Paint The Walls With Soundproofing Paint.
8. Get A White Noise Machine If You Need An Immediate Solution.

How do you soundproof a wall that's already built?

1. Add Insulation.
2. Install a Second Layer of Drywall With Green Glue.
3. Use Resilient Clips & Channels.
4. Add Mass Loaded Vinyl.
5. Build a New Wall in Front of Existing.
6. Install Acoustic Foam Panels.
