Is there a neutral on a 3 way switch

The other wires in a circuit with 3-way switches are the neutral (usually white) and ground (usually bare copper or green). The neutral wire

Where does white wire go on 3-way switch?

The black “hot” wire enters the switch on the left. Three-way wire(which includes red, black and white wires) runs from the switch on the left to the switch on the right, with the white wire carrying ground and the red and black wires carrying the output from terminals in the left switch.

Which wire is the common wire on a 3-way switch?

Black wire: This is a hot wire that carries electricity from the power source to the first switch in a typical 3-way setup. It’s also called the “common wire” or the “line wire.” Unless the breaker is off, this black wire is always hot.

Do both 3-way switches need to be grounded?

A three-way switch has four different screw terminals on its body: … Grounding screws on switches were not always required, so if you are replacing an old three-way switch, you may find one without the grounding screw. The two lighter, brass-colored screws are called the traveler screws.

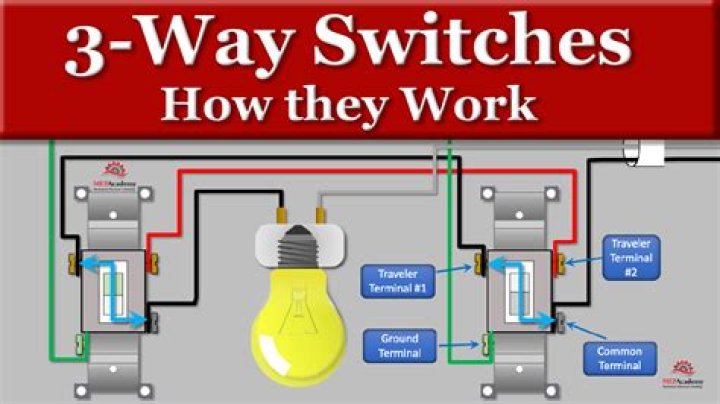

Which wires go on a 3-way switch?

With a three-way switch, three wires connect the pair of switches—two black “traveler” wires and a third “common” wire. Because “3-wire-with-ground” nonmetallic electrical cable such as Romex is often used to wire switches, a slight modification is often made during installation.

Do light switches have a neutral wire?

In terms of a home’s power flow, the neutral wire provides a return path for currents essential to most modern U.S. electrical codes. Combined with a power source and ground wire, you have the makeup of a contemporary light switch, but earlier switches operate without the neutral.

What is the black screw on a 3-way switch?

The black screw has the black (common) wire that runs up to the light through the yellow cable. The two grounds are connected together and then to the green ground screw on the switch. To summarize, the black screw gets either the wire from the electrical panel or the wire going to the light.

Why can't you mark the on and off positions on a three-way switch?

Why can’t you mark the on and off positions on a three-way switch? … The switch is inaccessible. It is important for the electrician to figure it out by himself.

What color wires go on a 3 way switch?

The black hot wire connects to the far right switch’s common terminal. Red and blue wires link traveler terminals of both switches. The red wire, which is connected to the first switch’s common terminal, leads back to the fixture.

Can you wire a 3-way switch as a single pole?

In order for a 3-way switch to function as a single pole, the wires need to be connected to the common and one of the traveler terminals. It will not work if the wires are connected to the two traveler terminals. … 3-way switches can be converted to single pole in several configurations.

Article first time published on

What happens if you don't ground a light switch?

So there you have it, your home may opt for screws, cables, or grounded boxes, but your switches should all have a ground outlet to ensure your safety is secured. Without it, you put your body at risk of completing a circuit holding lethal electrical charges.

Will a 3-way switch work if wired wrong?

Finding the common wire: When wiring a 3-way light switch, you’ll need to find the common wire and connect it to the common screw. If you don’t correctly connect this wire, then your lights won’t work from more than one switch.

Is common wire hot or neutral?

The “common” is the “neutral” or “ground” wire, depending on the type of circuit. In normal US residential wiring, you’ll have a black “hot” wire, a white “neutral” or “common” wire, and a green or bare “ground” wire.

Is common wire live or neutral?

The common wire is normally the white wire, at least in the United States, and is often called the neutral wire. It’s also called common because all circuits in the house typically have the white wires tied together, which means every circuit has that wire in common.

What happens if you wire a light switch wrong?

If a light switch is wired up wrongly, a short circuit may takes place if you give phase and neutral to the switch terminals. Always connect neutral wire to the one terminal of the light and phase to the one terminal of the switch and off wire to the other terminal of the switch to the light other terminal.

Does the hot wire go on the top or bottom of a switch?

Is it on the top or bottom of the switch – Quora. If you are speaking of a single pole switch, doesn’t matter. On a 2 pole switch, box mounted, technically it doesn’t matter, but good practices are line at the top, load at the bottom. If a disconnect switch, always line at the top, load at the bottom.

Why is there a red wire in my light fixture?

The exact purpose of a red wire for a light fixture can vary. Except in rare cases, it is a hot wire or a switched hot wire. … If turning the switch off turns the wire off, the red wire delivers power from the light switch. Note: Never touch wires or their connection points while the circuit is energized.

Does black wire go to copper screw?

The black wire goes to either the brass screw or the hole in the back of the device. … The green or bare copper wire can be attached to the green screw terminal on the switch or to the electrical box.

Where does neutral go in light switch?

The circuit’s neutral wire is in the junction box holding the light fixture. The two wires that come down to the switch from the hot leg powering the light itself. For smart switches that function without a neutral wire, a home hub is essential.

What will happen if switch is connected to neutral wire?

If switch is connected in the neutral wire, an electric appliance, e.g., an electric iron will remain connected to the live wire even when the switch is off and so if any one happens to touch the appliances; he of she will get a shock which is sometimes fatal.

How do I know if my light switch has a neutral wire UK?

If there are two conductors and an earth in the switch then there is no neutral. One conductor will be permanent line and the other will be switched line. If there are three or more conductors and an earth in the switch then there is most likely a neutral.

Do old house have neutral wire?

In most modern homes in the U.S., if you open your light switch box, you’ll find four wires: load, line, neutral, and ground. … Without a neutral wire, they don’t work, and that’s a problem because most older homes don’t have neutral wires. Instead, you’ll only find load, line, and (hopefully) ground wires.

Can you use 2 wire for a 3 way switch?

Two three-way switches (s.p.d.t.), four diodes, and two wires also enable three-way switching action. … If you only have a two-wire cable to work with, you can still hook up a three-way switching circuit for your garage, or hallway, to enable you to turn a light on and off from either of two different locations.

What color is the common wire?

Red, Black, and White are the colors of switch wiring for three-ways. Red and Black are connected to the switches if the White is used for neutral. The White is often referred to as Common, but the colored wires are also used as hot wires.

How do I know if I have a neutral wire in switch?

1. Turn off your breaker box.
2. Take off the trim plate over the switch.
3. Remove the screws from your switch and pull out the existing switch to look at the wires.
4. If you see a white wire (or group of them), it is VERY likely that you have a neutral in that switch box.

How can I tell if I have a neutral wire without a multimeter?

For example, get a socket and light bulb and attach a couple of wires to it, then touch one to the ground or neutral and another one wire to the test. If the lamp lights then it is live else then test the lamp on live wire like wall socket to make sure that it actually lights.

Is a 3 way switch the same as a 4 way switch?

A four-way switch is similar to a three-way, except it has four terminals (plus a ground terminal) and controls one fixture from three locations. This type of switch must be combined between two three-way switches to form a circuit.

Can a 3-way switch be used in place of a single pole switch?

Yes it can work. 3-way switches are spdt (single pole double throw) with 3 screw terminals, and regular switches are spst (single pole single throw) with 2 screw terminals. Just pick the correct two contacts and you are good to go. .

Can you install a single pole dimmer on a 3-way switch?

With a standard single-pole dimmer, a single switch controls the light. With a three-way dimmer, you can control a light with two switches. You will need a three-way dimmer and a three-way switch. … If only one switch controls the light, purchase a single-pole dimmer.

How do you jump off a 3-way switch?

No, you cannot tap power from the second 3-way switch. Tapping power from any switch is always iffy. With your setup, you can tap power from the first 3-way switch box.
