Is there flexible coaxial cable

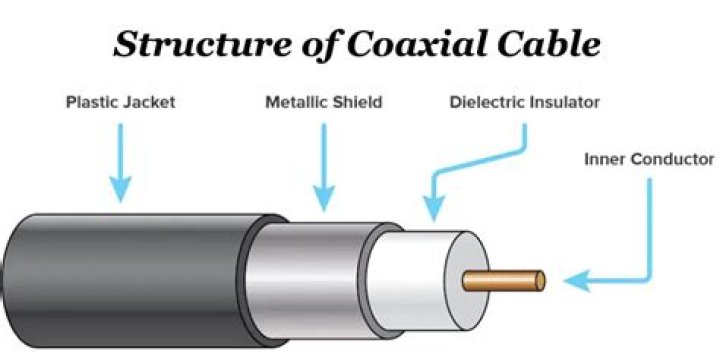

Flexible coaxial cables As the name suggests, this cable can flex and move as required to fit the user’s requirements. This typical cable design uses an inner metal electrode covered with an elastic polymer. The polymer works as the dielectric, surrounded by an outer cover for protection against the surrounding.

Is there such thing as a flexible Coaxial cable?

Flexible coaxial cables As the name suggests, this cable can flex and move as required to fit the user’s requirements. This typical cable design uses an inner metal electrode covered with an elastic polymer. The polymer works as the dielectric, surrounded by an outer cover for protection against the surrounding.

Are all coax cables stiff?

The nature of Coaxial cables is that they are all stiff. The intention is to maintain the spacing between the core and the screen so the permeability stays the the same. This means the geometry of a cable should stay the same along it’s entire length.

What are the four types of Coaxial cable?

Hard line coaxial cable.
Flexible coaxial cable.
Semi-rigid coaxial cable.
Formable coaxial cable.
Rigid coaxial cable.
Twin axial cable.
Triaxial cable.

Do they make flat coax cables?

There’s no need to drill through walls to install your antenna cable! … RCA Flat Coax Extension Cable was designed and engineered to provide the easiest and safest method without the need for drilling.

Are there different grades of coaxial cable?

There are two main types of coaxial cables – ones with an impedance of 75 Ohm (Ω) and ones with an impedance of 50 Ohm. Cables with 75 Ohm are mostly used for video signals, while 50 Ohm cables tend to be used for data and wireless communications.

What is hardline coax?

“Hard line” is applied to several forms of heavy coaxial cable designed for permanent installation. … For all practical purposes, loss in coax is primarily due to the resistance of the conductors (although dielectric loss begins to appear around 500 MHz, and becomes increasingly significant above 1GHz).

What is better RG6 or RG59?

RG6 cables can carry signals at a longer distance and keep better signal quality than RG59 cables. Therefore, RG6 cables are usually used for high-frequency applications like TV connection, while RG59 cables is more suitable for low-frequency and short-distance transmission.

How do I know what type of coax cable I have?

Coaxial cables generally use the label “RG,” which stands for “Radio Guide” and is accompanied by numbers to create a code that distinguishes the cable model. Once you find the designation code, you will quickly identify the type of coaxial cable!

Is coax cable needed for WIFI?

Q: Do you need a coax cable for internet? If you have cable internet, then yes, you do need a coax (or coaxial) cable to connect to the internet. Your internet provider should give you one with your modem, but if you’re missing one, you can find them for pretty cheap on Amazon.

Article first time published on

Do different coaxial cables make a difference?

Most coaxial cables include both (although some RG 59 cables still use single shielding). In general, the more shielding you have, the better your cable will perform, especially in longer runs, but there are differences in what the shields protect.

What are the advantages of semi-rigid cable over flexible cable?

The advantage of semi-rigid coax over flexible coax is its increased phase stability and lower insertion loss. Semi-rigid coax also provides the best electrical isolation and lower noise levels when compared to flexible coax.

Can you run wires under carpet?

Simply pushing a wire under a carpet, aiming for the other side of the room, generally won’t work, as the wire will go anywhere but the desired location. A special took called fish tape, or a similar one designed for carpeting, called an undercarpet tape, will get the job done effectively.

What is a flat Ethernet cable?

What is Flat Ethernet Cable? The flat ethernet cable is a flat form of copper wire with twisted pairs arranged side by side rather than square shape. Most of the ethernet cables are unshielded because it’s very difficult to place an overall shield on a flat Ethernet cable.

What is flat wire?

Flat cables allow for compact designs of electrical conductors and tubing, encasing power, signal, video, data and even pneumatic tubing in one flat profile. … The conductors in flat cables are equally spaced, with the exact same distance to travel.

What can be said about a straight splice connector?

What can be said about a straight splice connector? It is essentially two hardline connectors with a common interface.

Does length of coaxial cable affect signal?

Coaxial cable comes in varying lengths. The shorter and thicker the cable is rated will determine the strength of the signal transmitted. It is important to choose the right cable length and thickness. In radio systems, cable length is comparable to the wavelength of the signals transmitted.

What does RG stand for in coax?

When referring to different types of coaxial cables, RG stands for “Radio Guide,” a designation derived from World War II military specifications. Each type of coaxial cable has a different RG rating to help distinguish the cables’ distinct characteristics and specifications.

What kind of coaxial cable does xfinity use?

Comcast uses RG-6 in homes and businesses, and usually for the drop. (A drop is the line from the pole or pedestal to the house. If it is over 150 feet, RG-11 is normally used.

Is my cable RG59 or RG6?

RG-59 has a small center conductor, a smaller foam dielectric and single shield. RG-6 has a larger center conductor, a larger foam dielectric and double or quad shield. The result is that RG-6 has less signal loss than RG-59 and is less prone to signal ingress and egress.

What does RG59 stand for?

RG (for radio guide) was originally a unit indicator for bulk radio frequency (RF) cable in the U.S. military’s Joint Electronics Type Designation System. The suffix /U means for general utility use. The number 59 was assigned sequentially.

Does a smart TV need coaxial cable?

Many of the newer TV’s are being made with no coaxial port and/or digital tuner. This trend is because many people have discovered the joys of streaming content either through their new “smart” TV or using a streaming device so some manufactures are ditching the coaxial connection all together. All is not lost.

Can I get internet without a coax outlet?

You don’t need to get your internet from the TV cable company! Most cell phone providers can provide cellular internet over WiFi for a reasonable cost. There are also Satellite internet providers. The phone company can provide internet through a DSL connection that requires no coax outlet.

What can I use if I don't have a coaxial outlet?

You find a convenient closet or other service space (basement, garage, whatever), and put in a patch panel for the Ethernet, run conduit through the house to all the places you want sockets, and wire it all up. Same for the coax. Adjacent to the patch panel, you put a rack and some power for your modem and switch.

What is the difference between RG6 and RG11 coaxial cable?

The difference between RG6 and RG11 is that RG6 is a coaxial cable that is thin, flexible, and is for regular use only because of its signal fluctuation. … RG11 are thick cables used for special and long-distance signal purposes. It is mostly used in television connections, CCTV connections, and HTDV, etc.

Are all coax cables created equal?

While they might all look the same to the untrained eye, not all coaxial cables are created equal. In fact, there are many different types of coax cable that are better – or worse – when used in specific situations.

What is semi-rigid coaxial cable used for?

Semi-Rigid coaxial cable assemblies are used in defense electronics, test & measurement instrumentation, medical electronics, telecommunications, and space flight systems among other precision applications.

What is the highest frequency coax you can find?

There’s coax that goes up to 40GHz. “Coaxial” is just the physical configuration, it has nothing to do with frequency. Although coaxial cables do not have cutoff frequency for their TEM mode, there are however cutoff frequencies for other modes, above which multiple modes can propagate.

What is rigid coax and where is it used name the benefits of rigid coax?

The chief advantage of the rigid line is its ability to minimize radiation losses. The electric and magnetic fields in a two-wire parallel line extend into space for relatively great distances and radiation losses occur. However, in a coaxial line no electric or magnetic fields extend outside of the outer conductor.

How do you hide carpet cable wires?

Install Plastic Raceways If you can’t simply hide low-voltage wire under rugs and behind furniture, try using plastic raceways along the trim. You’ll find them in various shapes and sizes to work with the length and width of your wires. You can paint the raceway to match the wall or trim.

How do you hide coaxial cable?

Run the length of your cable along the walls, from where it connects to the outlet to your computer or TV. …
Press the cable down into the carpet, and underneath the baseboards of your wall. …
Secure the cable using cable hooks.
