What angle should a pitched roof be

Conventional Pitch Roofs: Anything between 25 degrees and 47.5 degrees would be considered a conventional pitch truss. These are the easiest to construct and maintain. High Pitched Roofs: Over 47.5 degrees would be considered a high pitched roof. Higher pitched roofs often need specialist tiles and fitting methods.

What is the most common roof pitch angle?

The most commonly used roof pitches fall in a range between 4/12 and 9/12. Pitches lower than 4/12 have a slight angle, and they are defined as low-slope roofs. Pitches of less than 2/12 are considered flat roofs, even though they may be very slightly angled.

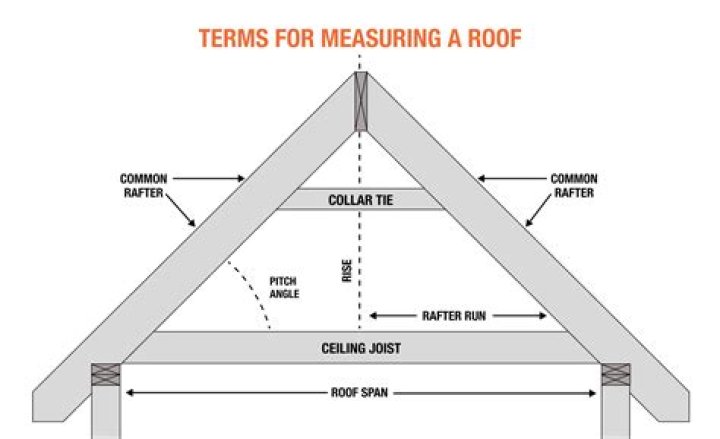

How do you determine the angle of a pitched roof?

First, you need to measure the run of your roof. …
Next, you need to figure out the rise. …
Now, divide the rise by the run. …
Then, divide 1 by your tangent.
Finally, multiply this result by 180/π and you’ve calculated your roof pitch!

What is the minimum slope for a pitched roof?

The smallest pitch of a roof is 1/4:12, which translates to 1/4 inch rise to 12 inches of run. Such a small pitch can only work with built-up roofing or specialized synthetic roofing. Covered porches that are near trees or in areas with heavy rains should not be covered with a low-slope roof.

What is the ideal slope for a roof?

For metal panel roof systems, NRCA recommends slopes of 1/2:12 or more for structural panel systems and 3:12 or more for architectural panel systems. For asphalt shingle, clay and concrete tile, metal shingle, slate and wood shake and shingle roof systems, NRCA recommends slopes of 4:12 or more.

Does a roof have to be a certain pitch?

A: Roof pitches traditionally range from 12.5° (anything less is considered a flat roof) up to 75°. The key is ensuring the correct roofing products that are suitable for the roof pitch.

What roof pitch is considered steep?

OSHA defines a “steep roof” as any roof with a rise/run ratio over 4:12 (18.43 degrees). While most standard-pitched residential roofs seldom exceed a 12:12 pitch (45 degrees), the landscape is occasionally marked by a design which harkens back to earlier times, when much greater roof pitches were more common.

What does a 2 12 roof pitch look like?

A 2/12 roof slope means your roof has 2 inches of vertical drop for every 12 inches of horizontal distance. Simply put, it’s a shallow roof. … A roof this shallow is likely to be found on a ranch house, a shed dormer or a porch.

Can I use shingles on a low pitch roof?

Most shingles may be applied on roof slopes of 2:12 to 4:12 (a “low slope” roof), providing that the shingles are adequately sealed against wind lift, and special procedures are followed. In many building codes, allowances are made to permit applications of asphalt shingles to low sloped roofs.

Is a 7/12 roof pitch walkable?

The roof’s pitch is the angle of the roof, usually presented as the inches of vertical “rise” over 12 inches of horizontal “run.” Generally anything above a 7/12 is considered a non-walkable roof and requires some extra equipment and usually some extra cost to the customer.

Article first time published on

What roof pitch is 30 degrees?

A 30° roof pitch is roughly the same as a 7/12 roof pitch. To convert from degrees to the American ratio: Find the tangent of the angle, tan(angle). This gives you the pitch of the roof.

What is the disadvantages of a steep pitched roof?

Steep Roofing – Cons The biggest downside with this type of roof is that roofing materials can be harder to install compared to a low slope roof. Pitched design allows for less usable space inside a building.

Is a 5/12 roof pitch steep?

The 5/12 or 5 on 12 roof pitch are most common types of residential roof pitch which are a sloping surfaces with an angle of usually 22.62° degrees steepness of a roof with it’s vertical rise of 5 inches over its 12″ or 1 foot horizontal distance or run in building construction.

How steep is a 12 pitch roof?

Roofs with a pitch of 12/12 are approximately 45 degrees, depending on how exact you’d like to be in your measurement. Check out our roof angle chart for more examples of the exact angles (expressed in degrees) of common roof pitches.

What type of roofing is best for a low pitch roof?

Metal roofing systems are popular because of their longevity and durability. Rubber roofs are a top choice for flat or low pitched roofing as it adheres to the roofing materials below it and, when installed correctly, provides a watertight seal to the elements.

How much should a flat roof slope?

A flat roof is generally any roof with a pitch of 1-10 degrees. That means flat roofs aren’t actually flat. It may look horizontal but often has a minimum slope of 1/4 inch per foot. This allows water to run off the roof to prevent damage.

Can you Shingle a 2.5 12 pitch roof?

The short, simple answer is 2:12 has traditionally been considered the absolute minimum acceptable roof slope suitable for asphalt shingles. Asphalt shingles continue to be the most widely installed roof covering option in North America.

Can you Shingle A 2 12 pitch roof?

While roofs with a 4/12 pitch and steeper are ideal, the minimum roof pitch for shingles is 2/12. A roof with a 2/12 pitch can safely use shingles by incorporating additional layers of underlayment around the eaves.

What angle do you cut a 7 12 roof?

Roof Pitch (slope)Roof Angle (degree)5:12 Pitch22.62°6:12 Pitch26.57°7:12 Pitch30.26°8:12 Pitch33.69°

Is a 7/12 roof pitch steep?

The 7/12 or 7 on 12 roof pitch are most common types of residential roof pitch which are a sloping surfaces with an angle of usually 30.26° degrees steepness of a roof with it’s vertical rise of 7 inches over its 12″ or 1 foot horizontal distance or run in building construction.

How many degrees is a 7 12 pitch?

For example a 7:12 roof pitch means that for ever 12″ of horizontal distance the roof will increase in height by 7″. The following diagram will let you easily convert roof pitch to degrees; a 7:12 pitch equals 30.26 degrees.

Is a 3/12 roof pitch good?

Any roofs up to 3:12 are generally considered “low slope.” In the residential arena, we see lower slope roofs as part of the home’s architectural design. … Then, when you get into roofs of 3:12 or greater pitch, most other metal roofs can be used and that generally is the pitch requirement for asphalt shingles as well.

Are steep roofs less likely to leak?

Fewer Leaks Because they’re so much steeper, rain doesn’t have the chance to create puddles. Instead, the water quickly runs off the roof and into gutters where it’s properly drained and isn’t given the chance to do damage to your home. This minimizes roof damage and leaks. … It’s just one more advantage to steep roofs.

Why do old houses have steep roofs?

Fewer snow worries: Even without a cold roof system, a steep roof is generally better in a snowy environment (which is why you see those dramatic A-frame homes in colder areas). … Ice melts more easily on a steep slope, preventing the build-up of ice patches or dams that can force moisture down into your roof.

Do steep roofs cost more?

The increased risk of falling means they need more safety equipment to work on such a roof. For example, a roof with a steep pitch may require the roofing company to bring out and set up scaffolding to safely remove and replace all the roofing materials. This added equipment and time naturally leads to a higher cost.

Is a 6 12 pitch roof steep?

The 6/12 roof pitch is by far the most common residential roof pitch. It is steep enough to shed water quickly while also being what we refer to as “walkable”.

Is a higher pitch roof better?

Fewer snow worries: Even without cold roof systems, a steep roof generally is better inside a snowy environment. … Ice will melt more easily on the steep slope and prevent the build-up of ice dams or patches which may force moisture down into the roof.

What does a roof slope of 5/12 mean?

If a roof rises 5″ in a length of 12″, this is 5/12 roof pitch. 5/12 roof pitch angle = 22.62 degrees.

Is an 8 12 roof steep?

Steep pitch vs. low pitch styles As an example, 8/12 means that for every foot, the rooftop rises 8 inches. Slopes around 6/12 are the most common, while anything below 4/12 is typically considered a low pitch.
