What are columns used for in buildings

Columns are used for structural reinforcement, much like beams. Columns are, basically, vertical structures transmit the compressive loads. The floor and the columns on the floors above are supported by columns; the columns of the bottom floor must be large enough to bear the accumulative weight of each floor above it.

What is the purpose of columns in a building?

A column is a vertical structural member intended to transfer a compressive load. For example, a column might transfer loads from a ceiling, floor or roof slab or from a beam, to a floor or foundations.

What is the use of beam?

Beams primarily carry vertical gravitational forces. They are also used to carry horizontal loads (e.g., loads due to an earthquake or wind or in tension to resist rafter thrust as a tie beam or (usually) compression as a collar beam).

What are columns in construction?

Column is a vertical structural member that carry loads mainly in compression. It might transfer loads from a ceiling, floor slab, roof slab, or from a beam, to a floor or foundations. Commonly, columns also carry bending moments about one or both of the cross-section axes.

What are wood columns used for?

Using wooden columns in your home can cut down on your heating and cooling costs. The amount it can help is directly related to the amount of natural product you use during construction. Since wood absorbs moisture which helps regulate humidity in a room.

What kind of pillars columns are used in the building?

Nomenclature for Pillar and Column Stainless steel columns have exceptionally good compressive strength are mostly used in skyscrapers. Then we have concrete columns, stone columns, or pilotis – support to lift a building above ground, or piers.

How do you design columns for buildings?

1. Based on shape. Rectangle. …
2. Based on slenderness ratio. The ratio of the effective length of a column to the least radius of gyration of its cross section is called the slenderness ratio. …
3. Based on type of loading. …
4. Based on pattern of lateral reinforcement.

What is columns & beams in construction?

Column is the vertical structural element which is attached to roof slab, beam or ceiling, and it transfers load to the footings of building, whereas Beam is a structural element to carry the loads from the slabs to the columns and with stand against the bending.

What is the function of beam in building?

Beams are used to support the weight of floors, ceilings and roofs of a building and to transfer the load to a vertical load bearing element of the structure.

What are beam columns?

A beam-column is a structural member that is subjected to axial compression and transverse bending at the same time. The combined compression and bending may be produced by an eccentrically applied axial load (Fig.

Article first time published on

Where are columns most commonly used?

Columns are frequently used to support beams or arches on which the upper parts of walls or ceilings rest. In architecture, “column” refers to such a structural element that also has certain proportional and decorative features.

What are the 3 types of columns?

The three major classical orders are Doric, Ionic, and Corinthian. The orders describe the form and decoration of Greek and later Roman columns, and continue to be widely used in architecture today.

What house styles have columns?

• Doric – short, heavy pillars and a round capital.
• Ionic – slender pillars, large base, with scrolled capitals.
• Corinthian – slender, fluted columns with elaborate carvings.
• Tuscan – simple design, unfluted shaft with plain base/capital.
• Composite – a mixture of the Ionic and Corinthian styles.

What is column design?

► A column, in general, may be defined as a member carrying direct axial load which causes compressive stresses of such magnitude that these stresses largely control its design. ► A column or strut is a compression member, the effective length of which exceeds three times the least lateral dimension.(Cl.

What is column plan?

The plan which contains column size & position is called a column layout plan . The column layout plan is very important for a Structure. Because without column layout it’s impossible to locate the actual location of the structure.

Is a column a pillar?

A pillar is a vertical support member and may be constructed as a single piece of timber, concrete or steel, or built up out of bricks, blocks and so on. … However, whereas a pillar does not necessarily have a load-bearing function, a column is a vertical structural member that is intended to transfer a compressive load.

Can we construct house without columns?

You certainly can. Most houses are made without columns. As long as the spanned space is not too large, you can use various trusses or joists (various composite materials) to span between two load bearing walls.

What is pillar in construction?

pillar, in architecture and building construction, any isolated, vertical structural member such as a pier, column, or post. It may be constructed of a single piece of stone or wood or built up of units, such as bricks. … See also column.

How beams and columns are connected?

The standard way of connecting beams to columns is to provide moment transfer through full penetration butt welds between the beam flanges and column flanges (strong axis connections) or continuity plates (weak axis connections), and to provide shear transfer through the beam web connection.

What's the difference between a column and a beam?

Beam vs Column The beam is a horizontal structural component that mainly carries vertical loads. In contrast, columns are vertical compression members that span from substructure to superstructure and have a vital role in transferring load from the top of the structure to the foundation.

Where do you put columns and beams?

Columns should preferably be located at (or) near the corners of a building, and at the intersection of beams/walls. Select the position of columns so as to reduce bending moments in beams. Avoid larger spans of beams.

Which is row and column?

RowColumnRows go across left to rightColumns are arranged from up to down.In a spreadsheet such as MS Excel WPS, LibreOffice, or Google sheet, the row heading is indicated by numbers.In spreadsheet programs like excel, LiberOfifce column headings are denoted by letters.

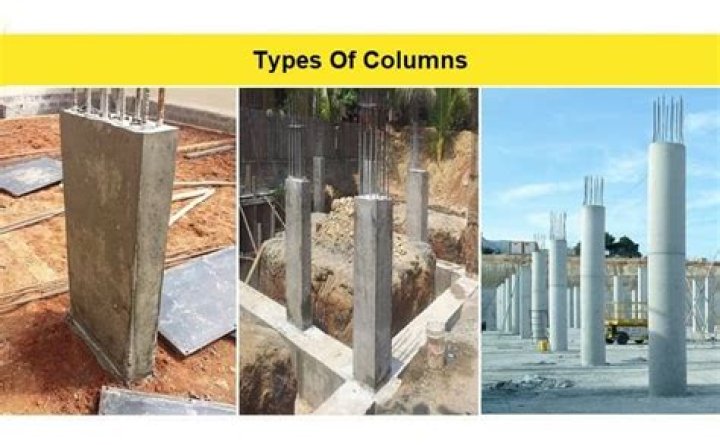

What are the types of column?

• Square or Rectangular Column.
• Circular Column.
• L and T shaped Column.
• Tied Column.
• Spiral Column.
• Composite Column.
• Axially Loaded Column.
• Uniaxial Eccentrically Loaded Column.

What is the difference between a pillar and a beam?

In architecture and building construction, a pillar refers to any isolated, vertical structural member such as a pier, column, or post. A beam is a structural element that is capable of bearing load principally by resisting against bending.

How do columns work in architecture?

In architecture, a column is an upright pillar or post. Columns may support a roof or a beam, or they can be purely decorative. A row of columns is called a colonnade. Classical columns have distinctive capitals, shafts, and bases.

What type of architecture uses columns and beams?

A colonnade continues the post and lintel method as a series of columns and beams enveloping larger areas of space. Colonnades can be free standing or part of a larger structure. Common in Egyptian, Greek and Roman architectural design, their use creates visual rhythm and implies a sense of grandeur.

What is an example of a column?

The definition of a column is a vertical arrangement of something, a regular article in a paper, magazine or website, or a structure that holds something up. An example of column is an Excel list of budget items. An example of column is a weekly recipe article.

What are the 5 types of columns?

Examples of 5 types of classical columns: Tuscan, Doric, Ionic, Corinthian, and composite .

What type of column is the most decorative?

Of all of the column types, the Corinthian style is by far the most decorative. Similar to the Ionic order, Corinthian columns also have an entasis. Given their artistic qualities and gorgeous elegance, ancient Romans used Corinthian columns quite often.

What are fake columns called?

In classical architecture, a pilaster is an architectural element used to give the appearance of a supporting column and to articulate an extent of wall, with only an ornamental function.

What are house columns made of?

Structural columns are made of materials that can bear substantial weight: wood, aluminum, or fiberglass composites. Non- structural columns are made of polymers. Some are hollow and may receive weight-bearing wood or metal posts. They come in many classic shapes and are typically sold in increments of 4 feet.
