What are the MRI zones

Zone I includes all areas freely accessible to the general public where the magnet field poses no hazards, such as the entrance to the MR facility.Zone II is located between Zone I and the more restrictive Zone III. … Zone III is access-restricted by physical barriers such as doors with coded access.

What are the MRI safety zones?

• Zone 1: General public area outside the MR environment. …
• Zone 2: Area between Zone 1 (Public Access) and the strictly controlled Zone 2 (Control Room) and Zone 3 (Magnet). …
• Zone 3: Control Room.

How many zones are in MRI?

Due to the powerful magnetic field used by the MRI Scanner, many Magnetic Resonance Imaging (MRI) facilities and hospitals restrict access to the MR Suite by establishing four conceptual zones around the MRI scanner.

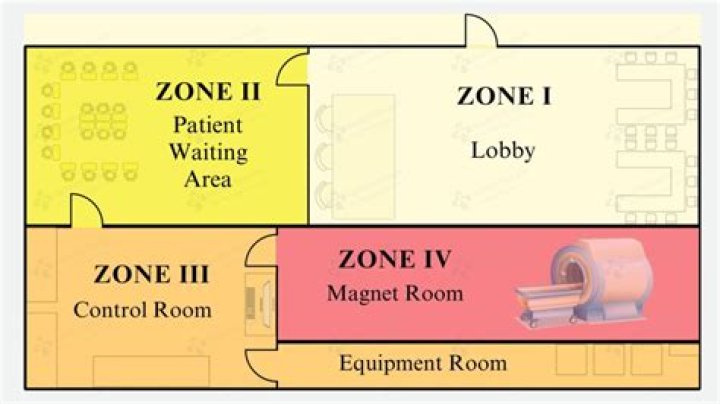

What are the 4 zones of an MRI suite?

• Zone 1. The open-air PG-5 pedestrian walkway outside of the CIS MR facility and the CIS lobby/waiting room. …
• Zone 2. The interface between public area of Zone 1 and the restricted areas of Zones 3 and 4. …
• Zone 3. Restricted area. …
• Zone 4. Contains the 3T MRI magnet room and equipment room.

What is Mr Site zone?

This area is typically outside the MR environment itself. and is the area through which patients, health care personnel, and other employees of the MR site access the MR environment.

What is projectile zone?

The intense magnetic fields present can strongly attract ferromagnetic objects brought close to the MRI scanner, causing them to become dangerous projectiles. … The region around the MRI scanner where this risk is significant is called the projectile zone.

What is the 5 Gauss line?

The 5 gauss line is the safety line drawn around the perimeter of the main magnet of the MRI scanner, specifying the distance at which the stray magnetic field is equivalent to 5 gauss (0.5 mT). Five gauss and below are considered ‘safe’ levels of static magnetic field exposure for the general public.

Who can enter Zone 2 MRI?

Zone 2- This zone still has no detectable magnetic field but we do restrict access because it is close to the MRI scanners. Patients, families, and visitors must be escorted into Zone 2. Zone 3- This zone is only one door away from the MRI scanner, which always has its magnetic field on.

What is the 5 Gauss line in MRI?

The 5 Gauss line of an MRI suite defines a border to an area in which the magnetic field could affect implanted devices such as pacemakers [7]. Special warning signs about the strong magnetic field and its associated hazards need to be set up in the MRI facility.

What are the dangers of MRI scans?

The strong, static magnetic field of the MRI scanner will pull on magnetic materials and may cause unwanted movement of the medical device. The radiofrequency energy and magnetic fields that change with time may cause heating of the implanted medical device and the surrounding tissue, which could lead to burns.

Article first time published on

What is the most common patient injury in MRI?

Thermal events were the most commonly reported serious injury (59% of analyzed reports). Mechanical events — defined as slips, falls, crush injuries, broken bones, and cuts; musculoskeletal injuries from lifting or movement of the device — (11%), projectile events (9%), and acoustic events (6%) were also observed.

How much stronger is MRI magnet than refrigerator magnet?

Aligning hydrogen atoms in the human body during an MRI scan requires a magnet 3000 times stronger than the permanent magnets on your refrigerator.

What is fringe field in MRI?

The fringe field is the peripheral magnetic field outside of the magnet core. Depending on the design of the magnet and the room a moderately large fringe field may extend for several meters around, above, and below an MR scanner.

What is a Level 2 MRI personnel?

Comprehensive MRI Safety for Level 2 MR Personnel is a focused, detailed course designed for physicians, including radiologists and anesthesiologists, CRNAs, MRI technologists, nurses, and other healthcare providers who monitor patients or supervise employees in Zones III and IV of the MRI environment.

What does Mr conditional mean?

Current terminology from the American Society for Testing and Materials (ASTM) International and utilized by the Food and Drug Administration refers to MR conditional as an item that has been demonstrated to pose no known hazards in a specified MRI environment with specified conditions of use.

Which MRI zone S can unscreened MRI patients be allowed to enter?

Zone III: This area is the region in which free access by unscreened non-MR personnel or ferromagnetic objects or equipment can result in serious injury or death as a result of interactions between the individuals or equipment and the scanner particular environment.

How many gauss is MRI?

The importance of the MRI magnet The magnet field produced by the magnet in a 1.5T MRI machine is 15,000 gauss, meaning the magnet in a 1.5T scanner is 30,000 times stronger than that produced by the Earth.

Is the magnet always on in an MRI?

The MRI magnet is ALWAYS on. This means no person is allowed to enter the MRI scan room without clearance and permission from a certified technologist. Metallic objects (such as fingernail clippers, pocket knives and even pens) can lead to serious bodily injury if brought within the magnetic field.

What is Faraday cage MRI?

Faraday Cage. An electrically conductive screen or shield that reduces or eliminates interference between outside radio waves and those from the MRI unit.

Can an MRI rip out metal?

Pins, plates and metallic joints Metal that is well secured to the bone, such as hip and knee joint replacements, will not be affected by an MRI. The metal won’t heat up or move in response to the machine. But if the metal is near an organ, such as the prostate, distortion could be a problem.

Has anyone died in an MRI machine?

There have been incidents of injury and death. In one case, a six-year-old boy died in July 2001, during an MRI exam at the Westchester Medical Center, New York, after a metal oxygen tank was pulled across the room and crushed the child’s head.

What type of metal is MRI safe?

Titanium is a paramagnetic material that is not affected by the magnetic field of MRI. The risk of implant-based complications is very low, and MRI can be safely used in patients with implants.

What does Gauss mean?

The gauss, symbol G (sometimes Gs), is a unit of measurement of magnetic induction, also known as magnetic flux density. … One gauss is defined as one maxwell per square centimetre.

Is nickel MRI safe?

Projectile or missile effect: Ferrous-based materials, nickel alloys and most stainless steel materials are not compatible with the MRI environment. When these materials are exposed to a strong magnetic field, they can be pulled violently toward the magnetic source.

What affects MRI SAR?

SAR is proportional to the square of the RF frequency (ω). So, all other things being equal, SAR depends on the square of Bo. The same pulse sequence in the same patient imaged at 1.5T would therefore generate 4x the SAR if performed at 3.0T.

Can an MRI magnet be turned off?

Turning off the Magnet Permanent magnet scanners are permanently “on” by definition. Resistive electromagnet scanners, in theory, can be turned on and off. However, it may take 30-60 minutes for their magnetic fields to stabilize after being off and hence they are generally left continuously on during daily operations.

What to do if there is a fire in the MRI room?

– If there is a fire located in the room housing the MRI. For every MRI there is a button to manually quench the magnet which may be found in the control room or in the room with the MRI. Magnet rooms are generally equipped with a quench pipe that is intended to vent this boil-off safely out of the building.

What fire extinguisher is used for MRI?

Based on the controlled environment and fire hazard materials typically found in and associated with MRI rooms, Badger recommends the use of the small, lightweight and effective model B5V-MR Carbon Dioxide Portable Fire Extinguisher.

What are two major disadvantages of MRI scans?

Drawbacks of MRI scans include their much higher cost, and patient discomfort with the procedure. The MRI scanner subjects the patient to such powerful electromagnets that the scan room must be shielded.

Which is better MRI or CT scan?

Both MRIs and CT scans can view internal body structures. However, a CT scan is faster and can provide pictures of tissues, organs, and skeletal structure. An MRI is highly adept at capturing images that help doctors determine if there are abnormal tissues within the body. MRIs are more detailed in their images.

Is MRI harmful for brain?

Magnetic resonance imaging (MRI) of the brain is a safe and painless test that uses a magnetic field and radio waves to produce detailed images of the brain and the brain stem. An MRI differs from a CAT scan (also called a CT scan or a computed axial tomography scan) because it does not use radiation.
