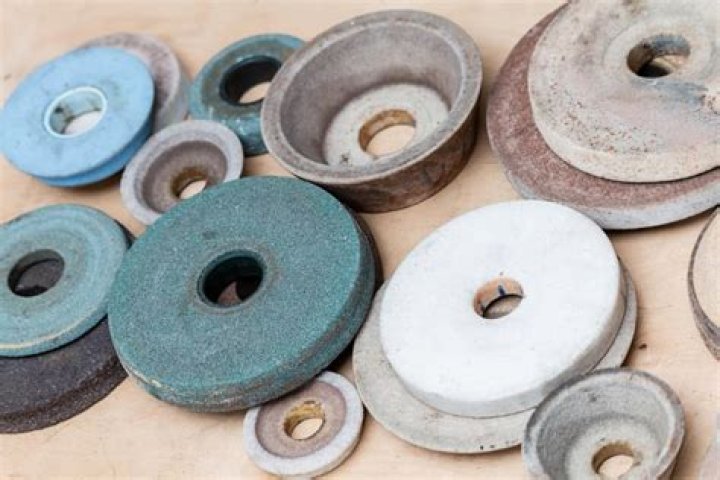

What are the types of grinding wheels

Straight Grinding Wheels. You see them all the time. … Large Diameter Grinding Wheels. Large diameter wheels are like straight wheels, but they are much larger. … Grinding Cup Wheel. … Grinding Dish Wheel. … Segmented Grinding Wheel. … Cutting Face Grinding Wheel. … Grits Sizes. … Electroplated Bond.

What is a Type 2 grinding wheel?

The Type 2, Type 37, Type 3701 and Type 3703 grinding wheels are intended for surface grinding on metal, concrete, terrazzo, ceramics. They are used for face grinding and are distinguished by different clamping mode.

How are grinding wheels classified?

Grinding wheels are classified on the basis of a type of workpiece to be grinded. The classification of grinding wheels are: Straight wheel. Cylinder wheel.

What are the types of grinding?

Surface grinding. …
Cylindrical grinding. …
Internal grinding. …
Centerless grinding. …
Contour grinding. …
Gear grinding. …
Thread grinding.

What is a Type 6 grinding wheel?

The vitrified straight cup grinding wheels are intended for grinding flat and shaped surfaces. They operate with their faces.

What is a Type 28 Grinding Wheel?

from 7.60. A HAT SHAPED GRINDING WHEEL designed to perform at a 10 to 15 degree angle, avoiding the operator fatigue one might experience when grinding with a Type 27. Delivers more abrasive grain to the work surface to ensure maximum material removal.

What is a Type 11 Grinding Wheel?

Type 11 Wheel – A cup shaped wheel intended for grinding by the face of the wheel used with angle grinders fitted with the appropriate guard.

How many types of cutting wheels are there?

TYPES OF CUTTING WHEELS Cutting wheels come in a few different types. Some common types are type 1, type 27, type 41, and type 42, where the various numbers signify the wheels’ different shapes and properties.

What are the 3 common types of grinders?

Three of the most common types of grinders are angle grinders, surface grinders, and die grinders.

What is truing of grinding wheel?

Wheel truing is defined as the act of restoring the cutting face of a grinding wheel by removing the abrasive material from the cutting face and sides of the wheel so that it will run true with respect to the axis of rotation and produce perfect round or flat work.

Article first time published on

What are the different types of bonding materials used in grinding wheel?

Standard grinding wheel bonds are vitrified, resinoid, silicate, shellac, rubber and metal. Vitrified bond. Vitrified bonds are used on more than 75 percent of all grinding wheels. Vitrified bond material is comprised of finely ground clay and fluxes with which the abrasive is thoroughly mixed.

What is Type 27 grinder?

The Type 27 grinding wheels are a very popular group of general purpose and specialized abrasive tools intended for rough grinding on various materials. … Most frequently they are operated at angles 20-35° and 90° when required by grinding requirements.

What are the two types of grinders?

There are two types of burr grinders wheel grinders and conical grinders.

What are the different types of grinding machines?

These machines accept workpieces in a variety of shapes as long as they can be rotated through a central axis. In a cylindrical grinder, both the workpiece and grinding wheel are simultaneously rotated. Outside diameter grinders, internal diameter grinders, and centerless grinders are all types of cylindrical grinders.

How many types of angle grinders are there?

There are three main types of angle grinders, each suitable for specific purposes. It is important to understand the differences between each type in order to make a well-informed buying decision.

What are vitrified grinding wheels?

vitrified-bonded grinding wheels. These abrasive products are used in the precision grinding of ferrous and non-ferrous’ metals, glass, ceramics, stone, marble, and many other materials. The company specializes in the production of grinding wheels with high porosity for the aerospace and turbine industry.

What is the name of grinding wheel?

Grinding wheels with diamond or CBN grains are called superabrasives. Grinding wheels with aluminum oxide (corundum), silicon carbide, or ceramic grains are called conventional abrasives.

What are different types of wheels and their specifications?

Steel Wheels. Steel wheels, also known as Steelies, are one of the most basic kinds of wheels in the automobile industry around the world. …
Alloys Wheels. …
Multi-piece Wheels. …
Chrome Wheels. …
Diamond Cut Wheels. …
Forged Wheels. …
Replica ‘OEM style’ Wheels.

What are the specifications of grinding wheel?

Abrasive TypeSymbolDiamond abrasive grainSynthetic diamond (Friable type) ※Used mainly for resin bond.ＳＤSynthetic diamond (Blocky type) ※Mainly used for metal/vitrified bond and electroplated wheels.Metal-coated synthetic diamondＳＤＣCBN abrasive grainCubic boron nitride (Single crystalline)ＣＢＮ (ＢＮ)

What is the difference between truing and dressing?

Truing is defined as the regeneration of wheel geometry. Dressing is defined as the regeneration of the desired surface condition of the grind- ing wheel. In some cases truing and dressing is a single operation; in others a wheel must be dressed after truing.

What are the compositions of a grinding wheel?

A grinding wheel consists of three elements: abrasive grain, bond and pore, as shown in figure 1. As the wheel turns in high speed, its innumerable grains quickly grind workpiece to beautiful finish and precise measurement. This process is called grinding process.

Which kind of bond is commonly used in grinding wheels?

Bond commonly used in grinding wheels: Vitrified bonded (V) wheels: Easy to form & compare of Clays & ceramic substances.

What are the different types of abrasives used in grinding?

Natural Abrasives – Calcite, Diamond, Iron oxide, Sand, Sandstone, and powdered feldspar.
Synthetic Abrasives – Borazon, ceramic, aluminum oxide, dry ice, glass powder, steel abrasive, silicon carbide, and slags.

What is metal bond grinding wheel?

Metal bond grinding wheels are produced when powdered metals or compounds containing cubic boron nitride or diamond are sintered on the wheel, resulting in exceptionally strong tools that maintain shape during rigorous use.

What is a Type 41 grinding Wheel?

The Type 41 and Type 42 grinding wheels make a numerous, popular group of general purpose and specialized abrasive tools intended for cutting-off various materials.

What is the difference between T27 and T29 flap disc?

Flat (T27) has smooth grinding surface and is mainly used to grind the plane and the outside corners. … The grinding surface of the curved flap disc (T29) has an upward curvature, which gives the T29 flap disc a better cutting ability in the plane.

What is metal cut off wheel?

Cut-off Wheels are made of abrasive grain bonded with an organic bond system and used for cutting, notching and grinding. They are used with both portable and stationary tools on numerous materials including aluminum, plastic, sheet metal, stainless steel and more.
