What causes arcing circuit breaker

Arcing usually occurs when a circuit becomes overloaded and overheats. The overheating causes damage not only to the circuit breaker but also to its connection to the bus. Once damaged, a circuit breaker can malfunction and continue to let electricity flow between its connection instead of tripping.

How do you know if a breaker is arcing?

Fuses that blow or circuit breakers that trip frequently can indicate a possible arcing hazard. Other indicators of potential arcing include burn marks or a burning smell near the panel, as well as buzzing or cracking sounds.

Why does my breaker keep sparking?

Breaker panels usually spark because of a problem within the whole house’s electrical circuit. It could also be an indication that the main breaker may not be receiving the electrical current that it needs to power up the whole home. … If a breaker panel, fuse box or outlet is sparking, get an electrician in ASAP.

What happens when a breaker arcs?

Arcing takes place in an electrical panel after the circuits in the panel are overloaded. If a circuit breaker joins to an electrical panel bus, it could result in overheating. It can ruin the bus and the connection, rendering the equipment defective and susceptible to failure.

What causes circuit breaker fire?

If improperly installed, exposed to the elements or excessively damp conditions, breakers and breaker boxes can rust and degrade, failing sooner than they should. Degraded components are faulty and will eventually cause sparking and possibly fire, according to K.I. Security Enterprises.

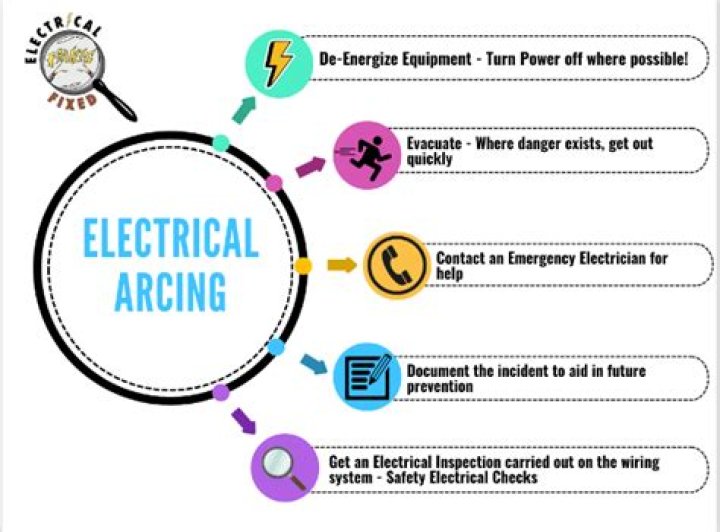

How do you stop electrical arcing?

1. De-energize electrical equipment.
2. Wear suitable Personal Protective Equipment (PPE)
3. Keep at a safe distance.
4. Reduce the energy output from an incident.
5. Carry out a risk assessment.
6. Train on-site workers to control risks and interrupt faults.

Will arcing trip a breaker?

Arc fault circuit interrupters are prone to “nuisance tripping,” which is probably what you’re experiencing. AFCIs are designed to sense an arc, which is an electrical “leak” caused when a hot wire touches a neutral or ground but doesn’t trigger the circuit breaker.

What is the difference between arcing and sparking?

Spark occurs due to loose connection where the intensity of current is low. Arcing occurs when a switch makes or breaks an electrical circuit with at a current of high intensity.

What does arcing sound like?

What does electrical arcing sound like? – Quora. Corona arcing is a very high pitched hisssssssss (snap) ssssss (crack). It can be quite loud in a substation of 230kV or above, especially if there are rough spots on conductors. It is the sound of electricity boiling off the conductor into thin air.

Why do my breaker keep popping?

Common reasons for your circuit breaker tripping are because of either a circuit overload, short circuit or a ground fault. … Your circuit breaker has tripped again. Sure, you can just reset the circuit breaker each time it trips.

Article first time published on

How much does it cost to replace a circuit breaker?

The typical cost to replace a breaker box is $1,975. Most homeowners spend between $1,787 and $2,207 for this job. As you can see, it pays to get estimates from expert electricians. A low-amp sub-panel typically calls from $1,000 to $2,000, while a 200-amp panel upgrade can cost you up to $5,000.

Can a tripped breaker cause a fire?

When a circuit breaker trips, too much electricity is trying to move through the circuit at once, causing the circuit breaker to literally break the circuit. Too much electricity passing through a circuit can overheat the electrical wiring in your home or electrical devices, which can cause a fire or electrocution.

Can electrical arcing cause a fire?

Electrical arcing is when electricity jumps from a one connection to another. This flash of electricity reaches temperatures of 35,000°F. Arcing can and will cause a fire in your home.

What can cause a circuit breaker to fail?

• An isolated power surge or spike causes it to malfunction. These are spikes that happen because of lightning or the presence of static electricity nearby. …
• A short circuit happens. …
• You’re dealing with ground faults. …
• You overload your circuits.

What do you do if a breaker catches on fire?

If your electrical panel catches fire the first thing you should do is call 911. Even if the fire is small and you think you can put it out yourself you should still call the authorities. House fires are tricky, and even if there is no visible fire, it is possible for the fire to get into the walls.

Do arc fault breakers wear out?

Nuisance tripping (or tripping without any apparent reason) can occur due to improper wiring, incompatible electronic devices being plugged in the circuit. In some cases, older arc fault breakers can frequently trip due to them wearing out with time.

Can I replace an arc fault breaker with a regular breaker?

Can You Replace Arc Fault Breaker with Standard Circuit Breaker? Yes, you can. The regular circuit breaker can fit the panel of your old Arc fault breaker. But this might not solve your problem if you do not do thorough troubleshooting and find out its main cause.

Which one is used for avoid arcing?

Common devices used to prevent arcs are capacitors, snubbers, diodes, Zener diodes, varistors, and transient voltage suppressors. Contact arc suppression solutions that are considered more effective: Two-wire contact arc suppressor.

Is electric arc and spark the same thing?

An electric arc is a continuous discharge, while the similar electric spark discharge is momentary.

How do we quench an arc?

When the reed contacts open they break a circuit. If there is a voltage and current present when the contacts open they will stop the current flow. Once the contacts open the voltage that was driving the current will reappear across the contacts.

What is one thing that distinguishes an arc from a spark?

A spark is a transient event. An arc is a longer duration event that can often be treated as being in local thermal equilibrium (LTE).

How often do arc fault breakers go bad?

The sensors inside CAFCI, AFCI, or GFCI breakers typically fail in 15 to 20 years, at which point an electrician should replace the breaker. Testing of CAFCI, AFCI, and GFCI breakers should be performed monthly. Testing involves pressing the breaker’s TEST button and resetting the breaker when it trips.

Where are arc fault breakers not required 2020?

As long as branch circuits are not extended more than 6 feet, AFCI protection is not required. In the 2020 NEC, a public input (code change proposal) was accepted to clarify “6 feet”.

How long do arc fault breakers last?

An AFCI or CAFCI circuit breaker should last 30 to 40 years, with an average of 35 years.

How do I find out what's tripping my circuit breaker?

To test for circuit overload, the next time the breaker trips, go to the electrical panel and turn off all the switches in the affected area and unplug all appliances, lamps, and other devices. Flip the breaker back on and then turn on the switches and plug in/turn on devices one at a time.

Do you need an electrician to replace a circuit breaker?

Safety Tip: Testing and replacing a circuit breaker is a simple process, but you should work carefully and use extreme caution, even if you have experience working with electricity. … If you are not already familiar with working in a circuit panel, call a licensed electrician.

Can I replace a breaker myself?

You can replace the circuit breaker by just removing the panel cover. Once you have removed the cover then you can disconnect the wire from the faulty breaker and pull it out of the way. … Take note of how the breaker fits in the panel and locks into position so that you can put the new circuit breaker in correctly.

Does homeowners insurance cover electrical panel replacement?

As long as your electrical panel and wiring are all up to code, your homeowners insurance will likely include protection if your panel begins to malfunction or poses a significant risk to your home.

What is the cost of rewiring a house?

The cost to rewire a house runs from $1,500 to $3,000 for a small house, $3,500 to $8,000 for a medium-sized house, and $8,000 to $20,000 for a larger home; or $7 per linear foot of wall space plus the cost of the electrical panel at $1,200 to $2,500. Get free estimates from electricians near you.

Can an electrical fire start if nothing is plugged in?

Answer: An outlet always has power to it as long as the breaker is turned on, so yes it can start a fire when there is nothing plugged into it.

Can flipping a breaker cause an arc flash?

Repeatedly resetting the breaker or replacing fuses puts you and your equipment at serious risk for injury, and or, increased levels of damage. A short-circuit or ground fault condition exists. … Reclosing the breaker into this type of situation could cause catastrophic failure of the breaker, creating an arc flash, etc.
