What causes low suction line pressure

Many reasons can cause low refrigerant suction pressure, i.e.: low indoor temperature, dirty filters, restricted ducts, undersized ducts, closed dampers, frosted coils, restricted refrigerant line, restricted piston, incorrect piston, restricted strainer, bad indoor blower motor ect.

What causes low suction pressure and high discharge pressure?

The main reasons your compressor will have simultaneously low head pressure and high suction pressure is due to: Bad or leaky compressor valves. Worn compressor piston rings. Leaky oil separator return line.

How do you increase suction pressure?

One method for increasing the NPSHA is to increase the pressure at the suction of the pump. For example, if a pump is taking suction from an enclosed tank, either raising the level of the liquid in the tank or increasing the pressure in the space above the liquid increases suction pressure.

What causes low pressure in refrigeration?

Low evaporator pressure: Low evaporator pressure is caused by the compressor being starved of refrigerant. The compressor is trying to draw refrigerant into its cylinders, but there isn’t enough refrigerant to satisfy it. The entire low side of the system will experience low pressure.

What does high head pressure and low suction pressure mean?

A cold suction line (low superheat) with low suction pressure is a symptom of low evaporator air. A liquid restriction would result high superheat (warm suction line). The high head probably due to the other guys overcharging, trying to get the suction pressure up.

What happens if refrigerant pressure is too low?

The compressor will start to suffer damage if there is too little refrigerant in the system, since it is designed to compress a specific amount of the chemical. The compressor might break, which will stop the AC from working at all.

Does low refrigerant cause low pressure?

Low refrigerant means low pressure and low pressure means low temperatures that will eventually freeze something called an evaporator coil. When the evaporator coil freezes, cold liquid refrigerant flows through the refrigerant line, causing the surrounding moisture in the air to freeze.

How can I increase water suction?

1. Raise and maintain tank liquid level.
2. Elevate supply tank.
3. Reduce piping losses from too many fittings or too small diameter.
4. Replace collapsed or compromised components.
5. Clear solids from inside of pipes.
6. Clear suction strainer.
7. Replace corroded pipe.

What is the normal suction pressure?

The normal range of the suction pressure is 0.8–1.2 MPa. If the suction pressure is greater than 1.2 MPa, connect a rubber hose for the pressure gauge to the gas pipe needle valve for the outdoor unit, and rotate open the pressure gauge to slowly release refrigerant. Start the compressor.

What determines suction pressure?

The equation for determining how much of a suction lift you can pull with your pump you can take your Atmospheric pressure(Pb) subtract your Pump NPSHR, Vapor Pressure (Vp), friction losses (hf) and NPSH Margin (Safety factor) and you will have your maximum suction lift.

Article first time published on

What causes low head pressure?

Low condensing (head) pressures — Because some of the discharge gases are being short cycled in and out of the compressor’s cylinder, there will be a low refrigerant flow rate to the condenser. This will make for a reduced heat load on the condenser, thus reducing condensing (head) pressures and temperatures.

What are the symptoms of a bad reversing valve?

Compressor valves vs. Defective reversing valves can sometimes be hard to detect, particularly in mild weather. Weak compressor valves and bleeding reversing valves are usually characterized by higher-than-normal back pressure and lower-than-normal high-side pressure, as well as low system capacity.

Is the suction line high or low pressure?

The low side, or suction line, will be the line connected to the compressor from the top or higher position. It will be cold to the touch and may be wrapped with insulation. This is where freon enters the compressor as a gas.

What are the symptoms of an overcharged refrigeration system?

• Increased pressure throughout the system, characterized by high head pressure and high suction pressure with low suction superheat;
• Increased flooding of refrigerant to the compressor during off-cycle, which may cause flooded starts;

What happens if you run AC without refrigerant?

Although an air conditioner can still function at lessened cooling power after it loses refrigerant, it will start to sustain serious damage that will eventually lead to larger repair needs and possibly a full system breakdown. … Loss of refrigerant will also threaten to damage the compressor, leading to it overheating.

How do I know if my heat pump is low on refrigerant?

1. Leaking Heat Pump. Even though a heat pump uses refrigerant to cool or heat a home, the refrigerant doesn’t dissipate during regular operation. …
2. Icing. …
3. Inefficient Performance.

How often should AC Need freon?

If everything is working properly, your AC should never need refrigerant. In fact, a central air conditioner should never need refrigerant added unless there’s a refrigerant leak. We’ll explain how an AC uses refrigerant and what to do if you think your system is low on refrigerant.

Can Freon get low without a leak?

The simple answer is No. There may be something wrong with the system that may seem like it is low like restricted metering devise, suction or liquid line but if refrigerant was added and now the unit works properly then there most likely a leak assuming the unit was properly charged when manufactured or installed.

Is suction the low pressure side?

SUCTION SIDE – Low side pressure (from expansion valve orifice to intake reed valve in compressor) . SUCTION THROTTLING – Control used to regulate flow of refrigerant from the evaporator to condenser.

What causes low suction pressure on a chiller?

If the suction pressure is low, it could indicate a brine flow problem, lack of refrigerant, plugged metering device, plugged filters, high oil level in the chiller, or a faulty gauge. … In small volumes, liquid refrigerant will dilute the oil and contribute to bearing failure.

What is the correct suction pressure for an infant?

Adjust wall suction. Recommended pressures should not exceed 80 – 120 mmHg for pediatrics and 80 – 100 mmHg for neonates. Cleanse hands and put on sterile gloves.

Can you increase pump pressure?

More pressure changes the velocity of the fluid, but it also decreases the flow or output. The cause of the flow decrease is due to two factors: volumetric efficiency of the pump and reduced motor speed. … It stands to reason, then, that increasing pump pressure will not increase flow.

At what pressure does cavitation occur?

When the negative pressure reaches approximately 9 MPa, cavitation occurs.

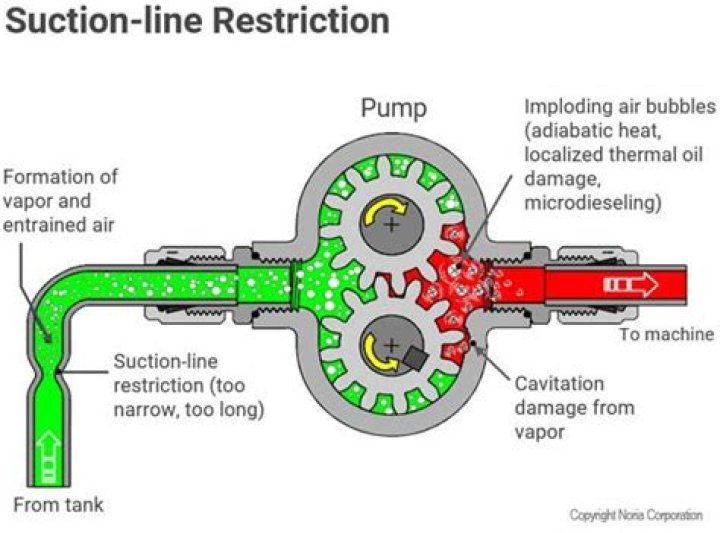

What can cause pump cavitation?

• Clogged filters.
• Pipe blockage on the suction side.
• Poor piping design.
• Pump running too far right on the pump curve.
• Conditions not meeting NPSH (net positive suction head) requirements.

How do you read suction pressure?

Suction pressure is always measured by the amount of pressure below atmospheric pressure e.g. a suction pressure of 100 mbar means 100 mbar below the atmospheric air pressire. Vacuum pressure is similar but should be referred to perfect vacuum e.g. a vacuum of 100 mbar means 100 mbar above a perfect vacuum.

How does suction pressure affect pump performance?

It does matter how much higher it is over vapor pressure of the liquid being pumped, which is where the concept of NPSH comes into play. … As suction pressure decreases (NPSHA reduced), incipient bubbles grow and eventually vapor lock the pump inlet (see Figure 4).

What is suction pressure and discharge pressure?

Discharge pressure (also called high side pressure or head pressure) is the pressure generated on the output side of a gas compressor in a refrigeration or air conditioning system. … An extremely high discharge pressure coupled with an extremely low suction pressure is an indicator of a refrigerant restriction.

What causes warm suction line?

The external suction line running hot means it’s running on heat mode. The real suction line is inside the unit and runs between the reversing valve and compressor, that part shouldn’t be hot at any time.

What is the main problem caused by oversized suction lines?

Liquid lines that are too large cause one of two problems: overcharge or undercharge. Liquid lines rob refrigerant from the system. Any refrigerant that is in the liquid line is doing nothing for the cooling or heating process.

What is the most common problem with reversing valves?

One of the most common problems with a reversing valve is that it can freeze in place. If it gets stuck in the heating position, there won’t be enough refrigerant flow available to properly cool your home.

What is the purpose of low pressure control?

The low pressure switch monitors the refrigeration system for a loss of refrigerant charge, and may also be helpful in stopping the evaporator (indoor) coil from freezing up due to a dirty filter or low airflow over the coil.
