What does 3 way wiring mean

A 3-way switch is one that allows you to control a ceiling light (or other electrical fixture) from two separate locations. … And there’s an extra screw terminal on the side that allows a connecting point for an extra “common” wire so the switches can “talk” to one another.

What is the difference between a 3-way switch and a regular switch?

The most common household switch, a single-pole, has two terminals and simply turns power on or off. A three-way switch has three terminals; a four-way has four. … You can usually replace any single-pole switch with a dimmer.

What is difference between 2 way and 3-way switch?

In a normal switch, the two terminals are either connected (as shown) or disconnected. When they are connected, the switch is “on.” In a three-way switch, the top terminal connects to one or the other of the bottom two terminals.

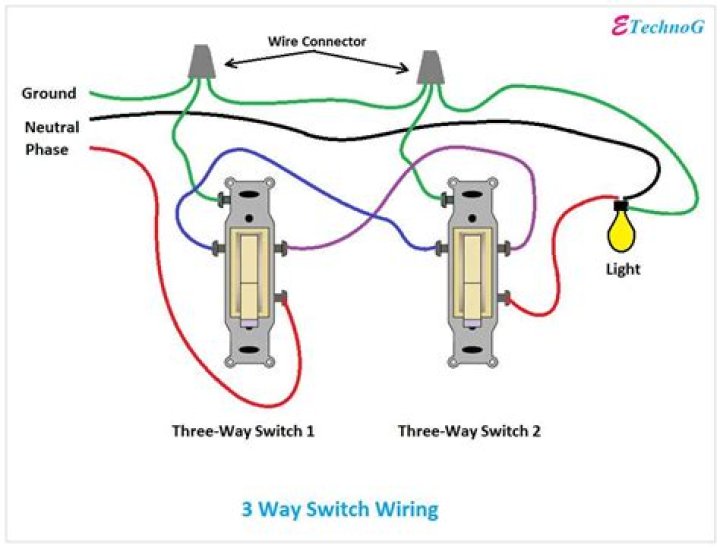

What is 3-way switch wiring?

A 3-way switch is larger than a single pole switch and has three screw terminals for wiring connections, plus a ground. Two of these take traveler wires that go from one switch to the other. For the third terminal, one switch is connected to the hot supply wire while the other switch is joined to the light.

When should you use a three-way switch?

Three-way switches are commonly used to control a light fixture from two different locations. For example, a long hallway or stairway might use a pair of three-way switches at each end so that lights can be turned on when approaching one end of the hall or stairway, then shut off from the other end.

How many terminals does a 3-way switch have?

A more positive way to identify a 3-way switch is to look at the body of the switch and count the number of screw terminals: a 3-way switch has three terminal screws plus a ground screw. Two of the terminals are a light color—bronze- or copper-colored—and are called travelers.

Why is it called a 3-way switch?

Circuits controlled by two (single pole, double throw) switches are called three-way by convention to distinguish them from circuits controlled by one (single pole, single throw) switch, which may be considered two-way (on, off). Clearly, three-way switches also arguably have only two functional states (on, off).

What is the black screw on a three way switch?

The black screw has the black (common) wire that runs up to the light through the yellow cable. The two grounds are connected together and then to the green ground screw on the switch. To summarize, the black screw gets either the wire from the electrical panel or the wire going to the light.

Can you wire a 3-way switch as a single pole?

In order for a 3-way switch to function as a single pole, the wires need to be connected to the common and one of the traveler terminals. It will not work if the wires are connected to the two traveler terminals. … 3-way switches can be converted to single pole in several configurations.

How many switches do you need to construct a three way switch circuit?

Three-way switches allow you to operate a light, or device such as a ceiling fan, from two different locations. That’s why a 3-way circuit always involves two 3-way switches.

Article first time published on

Do you need a special switch for a 3 way switch?

The key ingredient is a special type of switch called a “three-way” switch. You’ll need two of them, one to replace the existing switch and another for the new switch location. With these, you’ll have the convenience of turning a light on and off from two spots.

Is a 3 way switch double pole?

A double-pole switch allows you to control two separate circuits using the same switch, while a three-way switch allows you to control a single circuit from two different locations. A double-pole three-way switch is able to integrate both of these functions into one.

Which wire is hot on a 3-way switch?

Black wire: This is a hot wire that carries electricity from the power source to the first switch in a typical 3-way setup. It’s also called the “common wire” or the “line wire.” Unless the breaker is off, this black wire is always hot.

What happens if you wire a light switch wrong?

If a light switch is wired up wrongly, a short circuit may takes place if you give phase and neutral to the switch terminals. Always connect neutral wire to the one terminal of the light and phase to the one terminal of the switch and off wire to the other terminal of the switch to the light other terminal.

Can you use 2 wire for a 3-way switch?

Two three-way switches (s.p.d.t.), four diodes, and two wires also enable three-way switching action. … If you only have a two-wire cable to work with, you can still hook up a three-way switching circuit for your garage, or hallway, to enable you to turn a light on and off from either of two different locations.

What is another name for a 3 way switch?

Electrically, a typical “3-way” switch is a single pole, double throw (SPDT) switch. By correctly connecting two of these switches together, toggling either switch changes the state of the load from off to on, or vice versa.

Can you eliminate a 3 way switch?

Remove the Three-Way Switch From the Circuit Start with the three-way switch that will be removed. Remove the switch cover plate screws with the slot screw driver, and then remove the two switch screws. Carefully pull out the switch, making sure not to touch or short any of the three wires.

What color is the common wire?

Red, Black, and White are the colors of switch wiring for three-ways. Red and Black are connected to the switches if the White is used for neutral. The White is often referred to as Common, but the colored wires are also used as hot wires.

Where does red wire go on 3 way switch?

The black hot wire connects to the far right switch’s common terminal. Red and blue wires link traveler terminals of both switches. The red wire, which is connected to the first switch’s common terminal, leads back to the fixture.

Does a three way switch need a neutral?

Well you’re in the right place for a 3-way. The most common wiring requirements of any hardwired automated 3-way light switch is a neutral wire and a traveler. Yes, there are a few… (read very, very, very few) switches that don’t require a neutral, but those will limit you to incandescent only.
