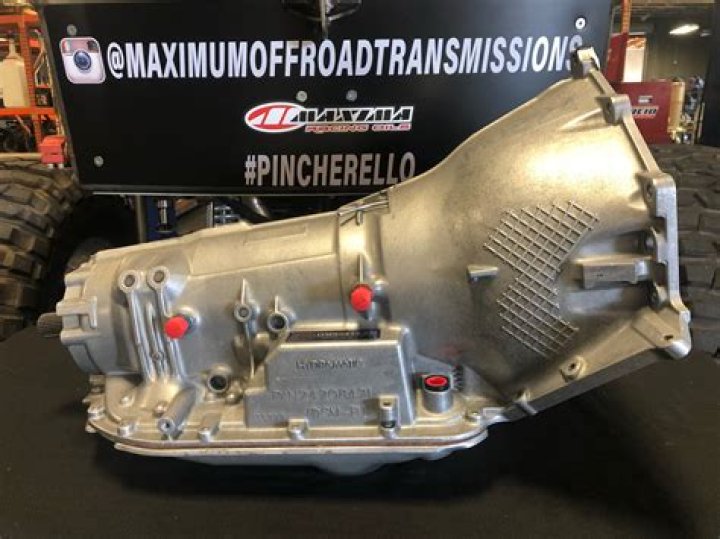

What does a 4l80e transmission fit

Also, the 4L80E performance transmission was designed for cars up to 16,500 lbs GVWR with towing capacity up to 22,000 LBS, and whose engine is up to 440 ft. … Some cars that used the 4L80E transmission include Chevrolet/GMC pickups, commercial vehicles, and vans. It was also adopted in Rolls Royce and Bentley vehicles.

What vehicles use the 4L80E transmission?

4L80-E/4L85-EOverviewSuccessor6L90

What is the difference between a 4L60E and a 4L80E transmission?

The 4L80E is larger and heavier than the 4L60E. Its more hefty build can be tied to its 236 lbs and a length of 26.4″. Alternatively, the 4L60E weighs 150 lbs (without fluid) and it has a length of 23.5″. A comparison between the size and weight shows that the 4L80E is significantly larger and heavier.

Will a 4L80E fit in place of a 4L60E?

The 4L80E has been used in a number of 1/2-, 3/4-, and 1-ton GM trucks over the years. Upgrading from the 4L60E to the 4L80E is akin to going from a Dana 44 axle to a Dana 60–you’ll add some weight, but also add durability.

What transfer case has 4L80E?

NP246 Transfer Case- NP8 Fits 98-02 with 4L80E (32 spline)- Bulldog Tough OEM Quality Replacement Unit From The Gear Shop.

What is the difference between a 4L80E and a 4l85e?

The primary difference between the two is the 4L80-E planetary gear sets have four pinion gears as opposed to the 4L85-E gear sets that have five pinion gears.

What years did GM use the 4L80E transmission?

The 4L80E was introduced in 1991 in the GM C/K Trucks line-up, and remained in production through the 2009+ model year.

Can you replace a 700R4 with a 4L80E?

No, neither the 4L60E or 4L80E will directly swap in. Your 4L60 or 700R4 is a hydraulically shifted trans with an electric lockup in it where as the 4L60E and 4L80E are both fully electrically shifted.

Can I run a 4L80E without a computer?

The only logical transmission for our 4×4 was the 4L80E four-speed automatic transmission commonly found in 3/4- and 1-ton GM trucks and SUVs. … However, the 4L80E can be easily converted to a manually shifted valvebody, which eliminates the need for the computer and much of the electronics and wiring.

What engines bolt up to 4L60E?

The front face 4L60-E is natively compatible with either the Chevrolet 90 degree “Small Block” & “Big Block” patterned engines (image, left), including the V6, V8 & I6.

Article first time published on

How strong is a stock 4L80E?

How much power can the 4L80E handle? A totally stock unit or rebuild will typically live well with up to 450 flywheel HP/TQ.

What years does 4L60E transmission fit?

700R44L60eYear Range1982 to Early 19931993 to PresentCase Style1-Piece1-Piece or 2-PiecePan StyleShallowShallow 1993-1997 Deep 1997-UPOEM Planets4-Pinion4-Pinion

How much longer is 4L80E than TH400?

4L80E transmissions have nearly 25% overdrive and are 4 inches longer than the TH400. The trans mount has been moved rearward by an inch-and-a-half. If we talk about the weight, the 4L80E is nearly 50 pounds heavier compared to the TH400 due to the electronic control.

Will a NP205 bolt to a 4L80E?

The adapter assembly fits 1971-84 GM NP205 with a figure 8 front bolt pattern, and is designed to replace the 10 or 27 spline male inputs. The transfer case will require machine work for the new input shaft in this kit. The adapter kit is designed for exclusive use with the GM 4WD 4L80E.

How do you find NP205?

Identifying an NP205 is relatively easy: It has a cast-iron case and center idler shaft with a nut on the front and a three-bolt cover on the rear, is about 12 inches long, has a center rear output, and usually has an ID tag above the front output shaft.

What is the strongest GM transmission?

The 6L90 is the strongest of GM’s family of Hydra-Matic six-speed automatic transmissions.

How much HP and torque can a 4L80E handle?

In short, Performance Automatic yields a 4L80E engineered to handle 700+ horsepower and comparable torque.

What is the strongest GM automatic transmission?

Nichols from Hughes says, “The 4L80E transmission family is the strongest GM overdrive transmission ever produced and installed in a standard passenger vehicle platform, and is arguably the strongest overdrive transmission produced by any of the big three.

Which is better 4L80E or 6L80E?

“The main difference is that the 6L80E has much more versatile gear ratios. … The 4L80E is more proven because it has been around much longer and more parts are available for it, but the 6L80E has come a long way and they can handle tons of power with a few basic upgrades.”

How much horsepower can a 4L85E handle?

ATI’s New 4L85E Street Rod Packages for up to 1500 HP.

What is a 4L65E?

The 4L65E transmission is built for Chevrolet, as an improved iteration of the 4L60E, and a successor to the 700R4. Unlike its predecessors, the 4L60E and later 4L65E is an electronic automatic transmission, with a five-pinion gearset, overdrive, and a stock torque limit of about 380 ft. -lbs. … of torque.

What's the difference between 4L60 and 4L60E?

The rear output housing is configured with a six-bolt pattern in late model 4L60E transmissions. The 4L60 transmission is configured with a four-bolt pattern. The bolt pattern is not a guaranteed distinction, however, as early 4L60E transmissions, manufactured from 1992 through 1997, also have a four-bolt pattern.

How many shift solenoids does a 4L80E have?

This set contains the two 4L80E transmission shift solenoids found in the valve body.

Will a 700R4 torque converter fit a 4L60E?

Fits 200-R4, 700R4 and non-LS1 4L60E transmissions (1981-1997). This stall converter is balanced, has furnace brazed fins, bearing construction and a Sonnax carbon fiber clutch. … All 4L60E transmissions through 1997 have the same 30 spline input shaft as 1984-1993 700R4 transmissions.

Will a 4L60 replace a 700R4?

In 1990, GM decided to code and renamed their transmissions, the 700R4 is best described as a 4 speed, longitude transmission rated for vehicles around 6000 lbs. It was this information that was used to change its name to 4L60; therefore, a 700R4 and 4L60 are the same transmission.

Did the 5.3 come with a 4L60E?

Super Moderator. The trucks that came with a 4l60e had the following motors. 07-13 trucks= 4.3, 4.8. They came behind the 5.3 upto 2008, in 09 the 5.3 got the 6l80e.

How many gears does a 4l80 have?

There are five gears in a four-speed overdrive transmission: First, Second, Third, Overdrive, and Reverse. All of these gears have a clutch assembly that uses springs to keep the gear disengaged.

How much HP can a 4L60E handle?

Their Stage 2 Pro Race transmission can handle gobs of power while their Invincible Black Edition 4L60E trans can support over 1,000 ponies.

Can a 4L80E handle 1000hp?

Our PERFORMANCE 4L80E series is ideal for street/strip driving and upgrades from a 4L60E/4L65E platform. It’s rated at 1000 RWHP….

How long does a 4L80E transmission last?

IMHO, the 6.5’s and 4L80E’s are capable of 500,000 miles…

Is the 4L80E Transmission good?

The GM 4L80E Automatic for Max Power and Good Cruisin’ Overdrive transmissions are great inventions. They allow a car to run deep rear gears for tire-smoking or wheel-hangin’ launches yet still maintain some semblance of highway cruising ability. The problem is durability.
