What does a power inserter do

A power inserter is used to back feed power to the preamplifier/distribution amplifier through one of the RF output ports. This allows the preamplifier/distribution amplifier to be mounted at a location where power is not available. … The side marked “To Amp” should never be connected to the TV.

Why do I need a power inserter?

The purpose of a power inserter is to put power on a line being used for something else. If the power is flowing through its own line, that means the thing is a power adapter. If it’s flowing through a line used for something else (like your antenna or satellite cable) it’s a power inserter.

How do you hook up a DIRECTV power inserter?

I have one cable coming in from outside and one cable that goes to the TV. Help please. How do I correctly connect my power inserter? It has two inputs: ‘signal to IRD’ and ‘power to SWM’.

What is the purpose of the power inserter on DIRECTV?

DIRECTV SWM systems use a power inserter to make sure there is enough power for all the electronics down the line. Older systems relied on the receivers themselves to power the dish, but SWM equipment does a lot more than a simple dish setup.

Can I use a power inserter for antenna?

No you can’t. A DIRECTV power inserter puts out 29 volts. I don’t know of any amplified antenna that needs that much voltage. Voltage is one of many ways to describe electricity, and it’s sort of hard to wrap your head around them. … If you supply more volts to a device than it can handle, it will short out.

Does a DIRECTV dish need power?

All dishes need power. They’re receiving signals, amplifying them, and sending them down the line. In the case of modern DIRECTV dishes, they’re also acting as multiswitches, sending only the signals that have been requested by the receiver. … It can supply the 29 volts needed to power the dish if needed.

Where does the SWM power inserter go?

So the SWM-8 sits outside with the dish, and the power source is installed inside the house. The cable from the SWM goes into the power inserter, and then the power inserter has an output that carries the SWM signal on to the receivers. That output of the power inserter is low-voltage.

Can a SWM splitter go bad?

Splitters can go bad but rarely do. The more likely suspect is a receiver or a cable connector.

How do I connect my DIRECTV box to my TV?

Plug one end of the cable into the HDMI port on the back of your receiver. Plug the other end of the cable into the HDMI port on your TV. Make sure you have selected the correct TV input source (example HDMI 1, HDMI 2). Set your TV resolution to 1080i or 720p.

Can I put a splitter on my DIRECTV?

DIRECTV Satellite is designed around the idea that a single wire can be split multiple times to feed multiple receivers. … Over the years, DIRECTV satellite has gotten both easier to install and more innovative. So yes, you can add a splitter to any modern DIRECTV system and it will still work.

Article first time published on

Do I return DIRECTV power inserter?

Simply put, most DIRECTV receivers used in residential accounts are leased. This means the receiver must be returned once the contract is up. Customers with a commercial DIRECTV accounts – where DIRECTV is played in places were revenue is earned – own their receivers.

How do I know if I have SWM DIRECTV?

litzdog911. Typically it would be installed behind one of your DirecTV Receivers/DVRs. Usually the one closest to where the satellite cables enter your house. Do a Google Image search for “SWM Power Inserter” to see what one looks like.

What does the SWM box do for DIRECTV?

The DirecTV Single Wire Multiswitch (SWM) is a specially designed piece of hardware that allows a DirecTV satellite dish signal to be split and used with many different tuners/receivers. The usual configurations allow 5, 8, 16, or 32 connections to a single satellite dish.

Can I use 2 signal boosters?

An antenna amplifier may connected as a pre-amp on the main external antenna or in conjunction with a coaxial cable splitter. You may use two or more TV amplifiers to boost the signal in your home.

Can you use 2 TV signal boosters?

It is extremely unwise to cascade two or more digital TV signal boosters (I.E. to use more than one Freeview signal booster chained together), as this can cause signal overload at the TV and lead to poor television interference immunity.

Why do I need a SWM power inserter?

Using a separate power inserter has its advantages. First of all it provides enough power that the dish can not only amplify but do other tricks. Using a single-wire system is tricky and it requires that all the signals sent out don’t interfere with each other. This requires more power.

What signal is used by the IRD to communicate with the swim?

What is the FSK signal used for? It is used by the IRD to communicate with the SWiM.

Can a Dish satellite be used as a TV antenna?

You can use a satellite dish as a TV antenna. An antenna “captures” radio frequencies (RF) sent from a broadcast tower and transmits them to a TV for viewing purposes. To view a digital TV signal using a satellite dish that is mounted on the roof, add parts that will focus the RF signals impacting the dish.

Does a Sky dish have power?

The way that TV aerials and satellite dishes work by their very nature carry current. … The“signal” on a cable is in fact alternating current electricity, which is of a much, much higher frequency than that of your mains electrical supply.

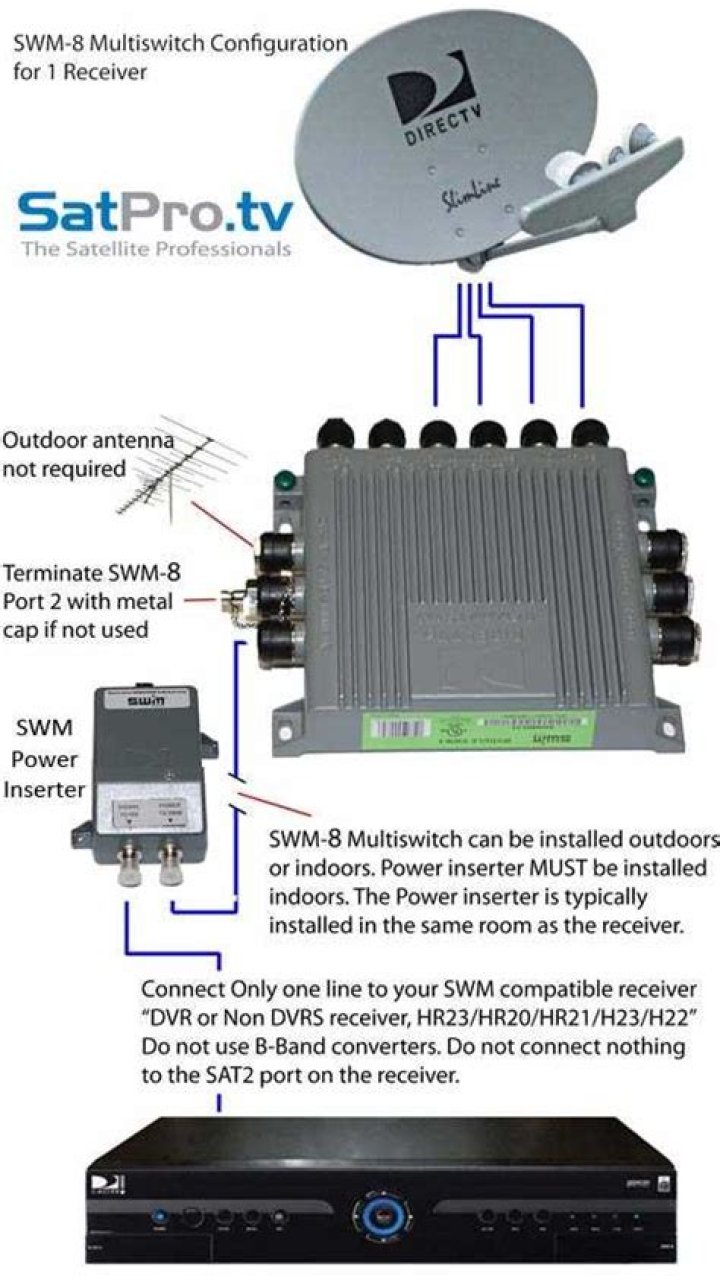

How do you connect a SWM power inserter?

Connect the “Power to SWM” port on the Power Inserter to the “SWM1/PWR” port on the SWM8 Switch. Connect the “Signal to IRD” port on the Power Inserter to the DirecTV receiver. If you have more than one receiver and/or Genie Mini’s, then you will need a SWM Splitter.

What does it mean when DIRECTV says no servers were detected?

You’ll see these errors when your DIRECTV equipment isn’t communicating with the main Genie receiver. Here are the top reasons: Your wireless video bridge and Genie DVR aren’t connected properly. Make sure all cables are securely plugged into your equipment and wall outlets.

What channel does my TV need to be on for DIRECTV?

Set your TV channel to 3 or 4 with your TV remote (not your DIRECTV remote). These 2 channels receive the DIRECTV service signal. Make sure you select the correct TV input source.

What type of DIRECTV receiver do I have?

Go to My Equipment. You’ll see the receivers and equipment for your service. From the list, select See details including model number, serial number, and Access Card info, if applicable.

Are all splitters the same?

Is there a difference in the quality of coax splitters? Not all coax cable splitters are created equally. Low quality coax splitters can adversely affect the video signal, causing excessive attenuation of the signal (signal loss) and multiple reflections which can cause ghosting (shadows on the picture).

What splitter does directv use?

DirecTv MSPLIT4R1-03 Approved WNC 4-Way Wide Band SWM Splitter.

How do I fix SWM connection loss on directv?

Check and secure all connections on the back of your receiver. Start with the SAT-IN connection.
See if you have a SWiM Power Inserter attached to the DIRECTV cable coming from your dish (it may be in a different room). …
Wait 15 seconds, then plug it back in.

How many TVs can be on DIRECTV?

DIRECTV STREAM. You can stream DIRECTV STREAM on up to 20 compatible devices connected to your home network at the same time. And, use up to three of those streams on the go.

How do I split my DIRECTV to two TVs?

Purchase a 2-way splitter. …
Place the coaxial cable that is bringing the signal into the room on the input of the DirecTV receiver.
Place a shorter coaxial cable on the output of the DirecTV receiver. …
Place a coaxial cable on the output of the splitter.

Why does my DIRECTV dish have two cables?

The most common reason that a satellite TV receiver will have two LNB connections is because it is a twin tuner model, commonly known as a PVR which is an abbreviation of Personal Video Recorder which usually has an in-built HDD for storing recorded TV directly onto the unit itself so you can watch back at a later date …

Do directv remotes have to be returned?

The cancellation return form from directv is only asking for the receiver box. In reading the official Directv service agreement it says that the leased remote must be returned .

What needs to be returned directv?

ServiceWhat you returnDIRECTV STREAMYour DIRECTV STREAM device if you’re canceling service within 14 days of delivery or ship date – learn moreDIRECTVLeased DVRs and receivers Wireless video bridgeU-verse TVAll receivers All remote controls
